OVERVIEW

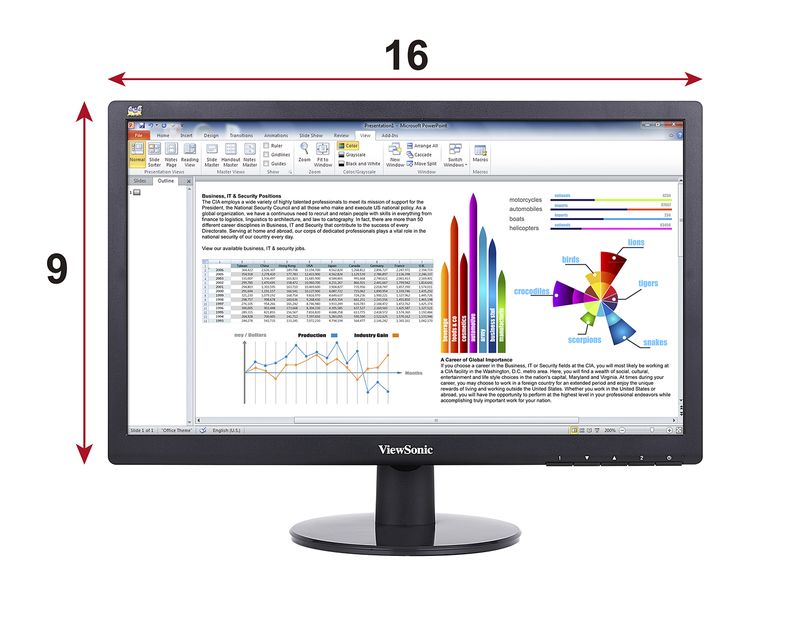

ViewSonic’s new VA1917a is an environmentally friendly 19’’ (18.5’’ viewable) widescreen display that features LED backlight, providing energy saving up to 40%. With 1366 x 768 HD resolution, 5ms response time and VESA mountable design, the VA1917a is ideal for both home and office. The display’s built-in colour management ensures the most accurate white level for image rendering, allowing users to match different colour temperature settings to create more comfortable working conditions. In addition, energy-saving ECO-mode reduces cost of ownership, making the VA1917a the best choice for both corporate and education customers as well.16:9 Widescreen optimised for HD Content
VA1917a is a 16:9 widescreen LED display that features 1366x768 native resolution, and is designed for all types of office works. With this widescreen aspect ratio, it is also the perfect display for multitasking and improving productivity in the workplace.

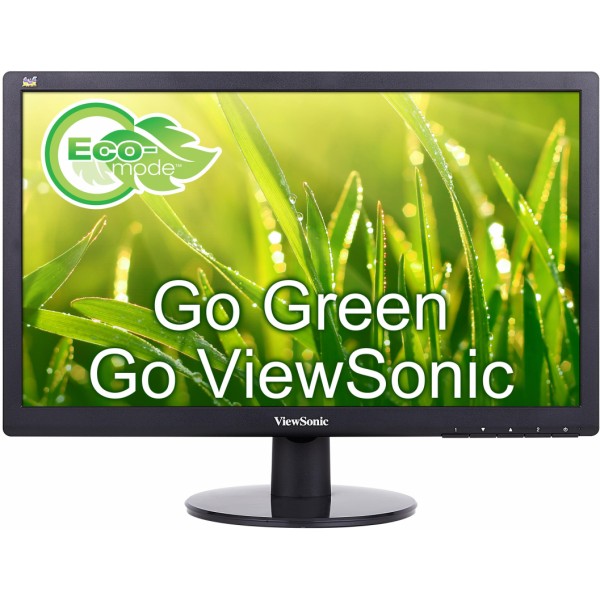

Eco-Mode Conserves More Energy
ViewSonic’s proprietary Eco-mode feature is built into all LED displays, offering options to select ʺOptimise(75%)ʺ or ʺConserve (50%)ʺ settings that save up to 25% power. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the display's lamp life. With Eco-mode, both lamp replacement and energy expenditures are reduced.

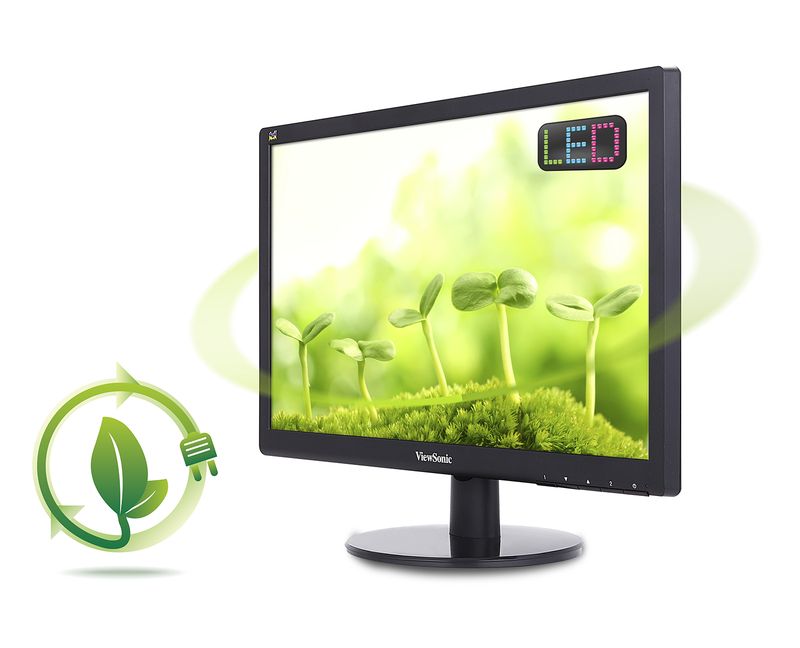

Planet-Friendly Mercury-Free LED Backlighting
LED backlighting enhances display performance, delivers an outstanding colour range, and adjusts contrast ratios for remarkably detailed images. ViewSonic's eco-friendly, mercury-free LED backlighting further conserves up to 25%* more energy when compared to conventional displays. In addition, LED backlighting provides for a slim, lightweight profile that saves desktop space.

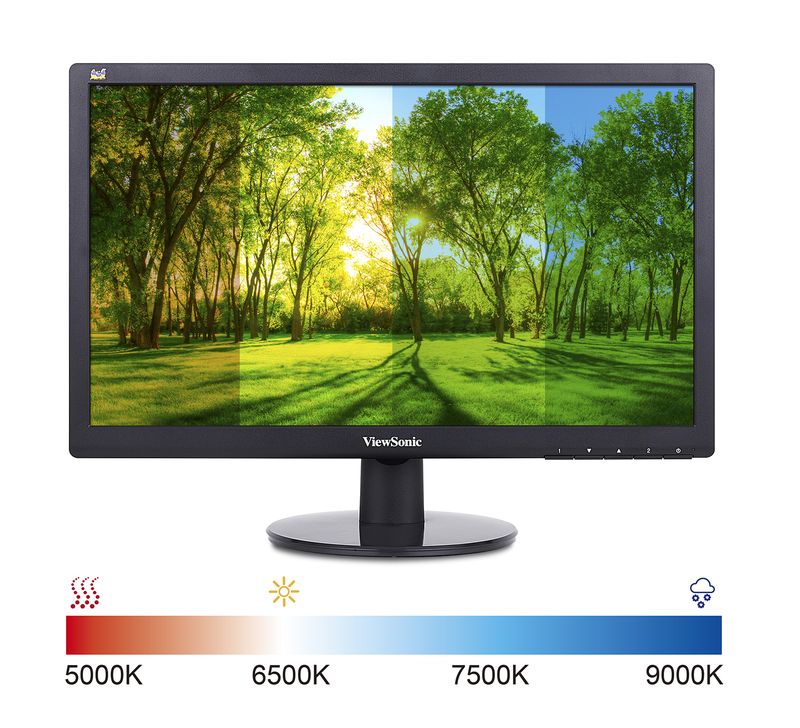

Better colour Accuracy with colour Management
ViewSonic’s built-in colour management system maintains strict standards for colour temperature and white balance correction to ensure the most accurate white level for image rendering. Different OSD colour settings (Bluish, Cool, Native, Warm) allow you to match different colour temperature settings.

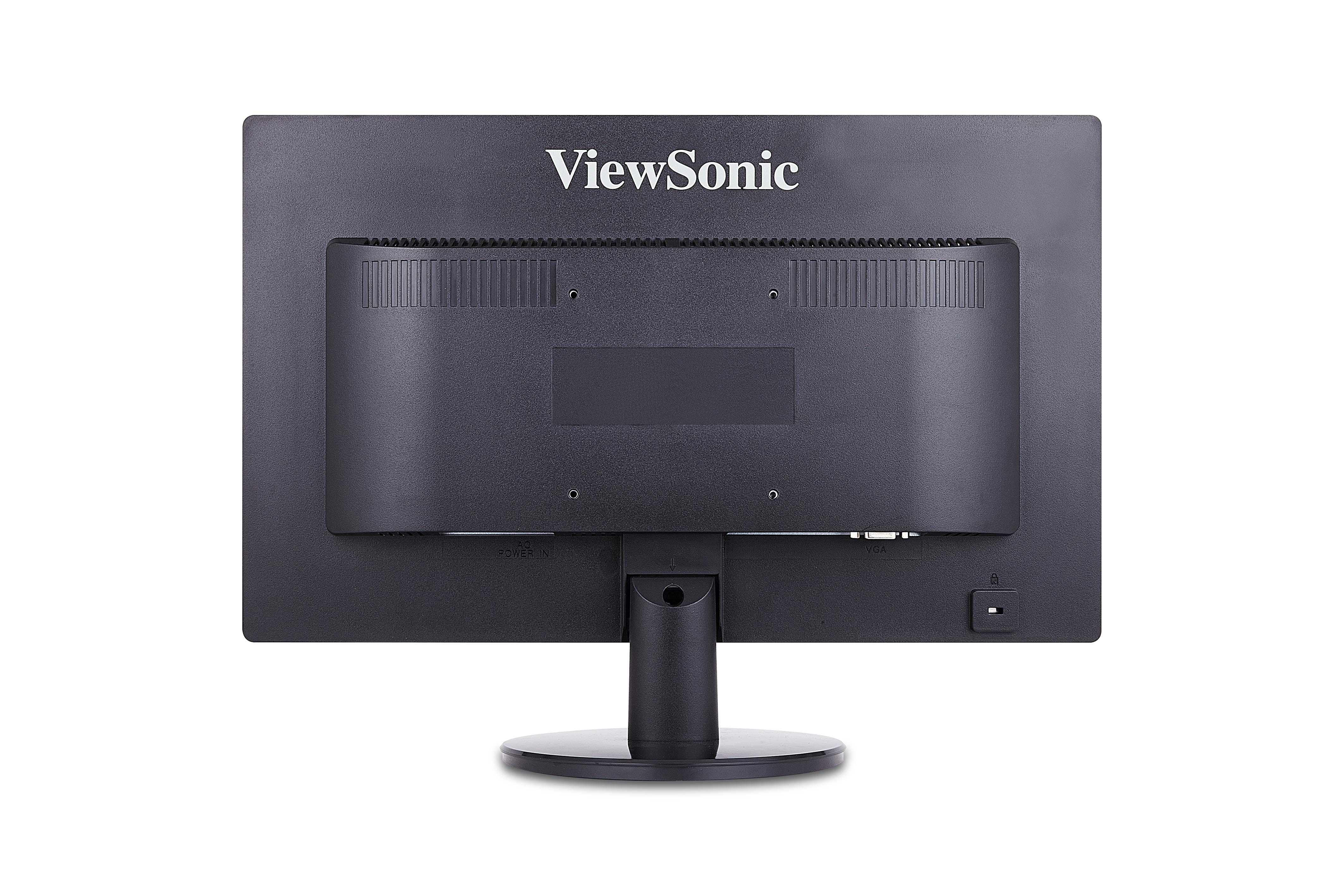

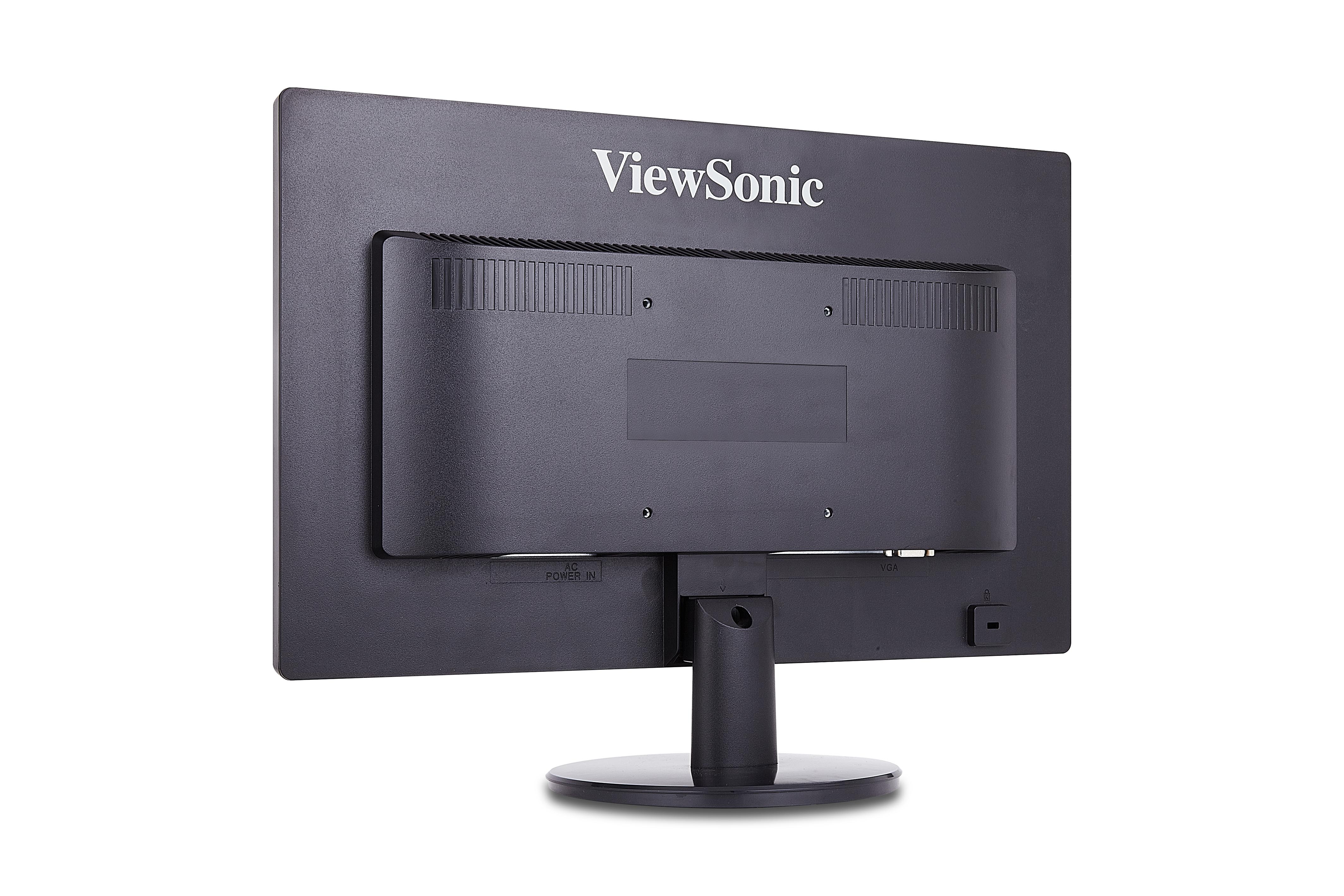

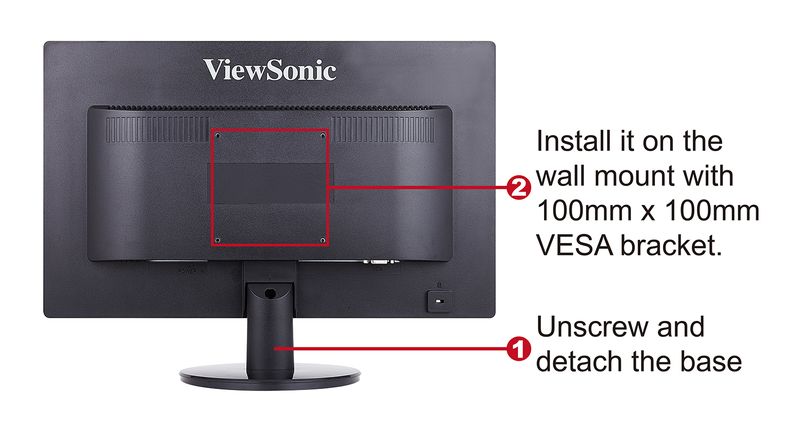

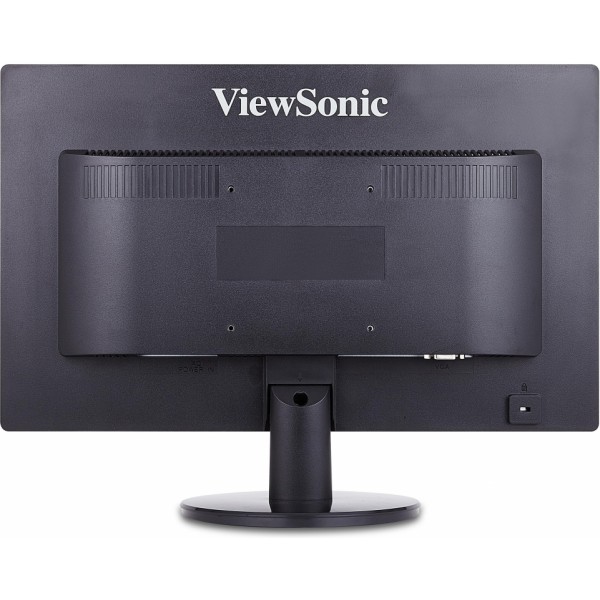

VESA-Mountable
The ViewSonic VA1917a features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily unscrew the base, and then mount the display on its new stand or wall mount.

SPECIFICATIONS
- LCDType: 18.5" Wide colour a-Si TFT Active Matrix LCD
Display Area (inch): 409.8 x 230.4 mm
Optimum Resolution: 1366 x 768
Brightness (nits): 200 cd/m²
Contrast Ratio: 600:1 (typ)
Viewing Angles: 90° / 65°
Response Time: Tr+Tf: 5 ms (typ)
Panel Surface: Anti-Glare type, Hardness 3H
Colours: 16.7M
Backlight: WLED light bar
Backlight Life: 30,000 hrs - CompatibilityPC: VGA up to 1366 x 768 Non Interlaced
Mac: Power Mac up to 1366 x 768 - ConnectorPower: Internal Power Board , 3-pin plug (CEE22) x1

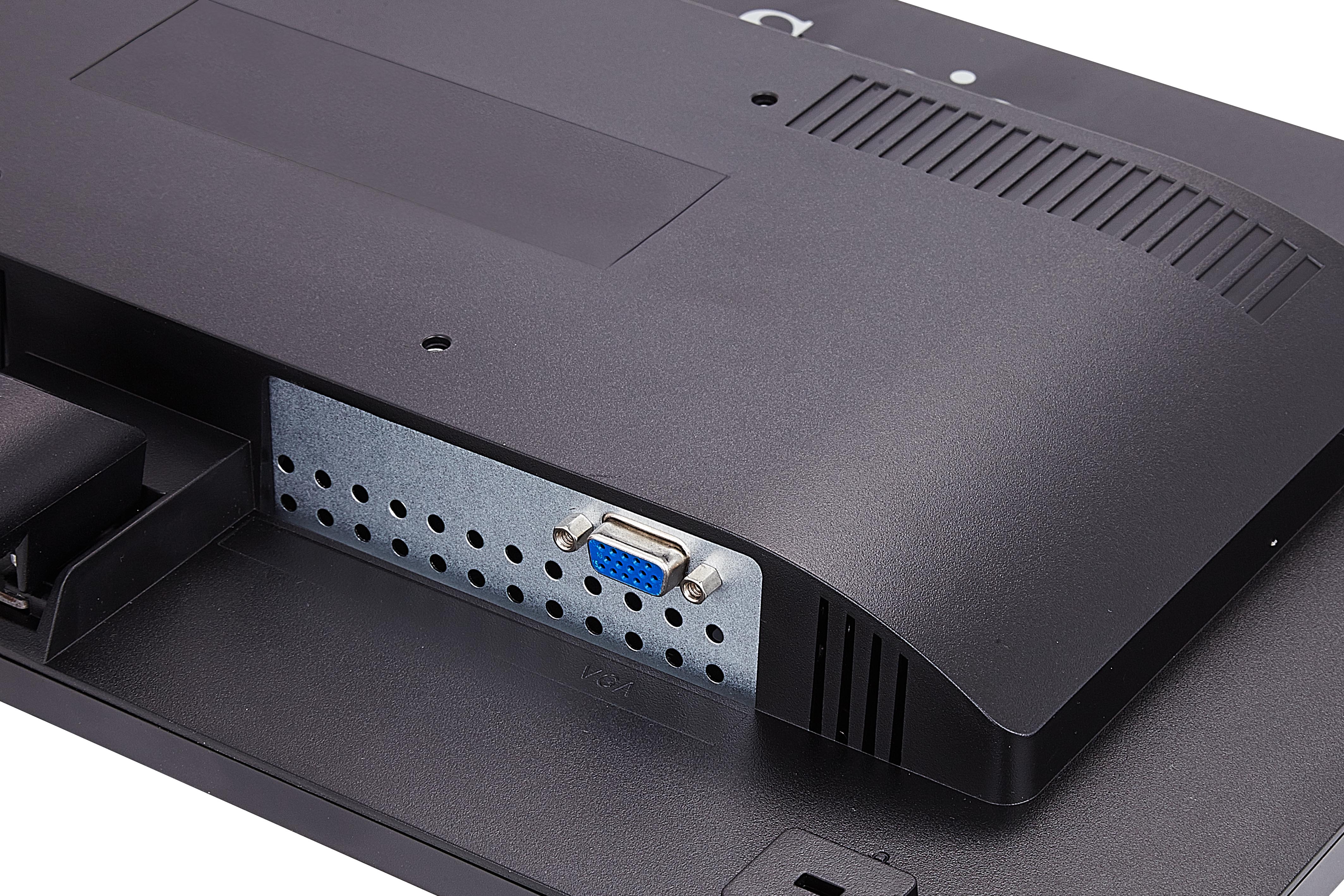

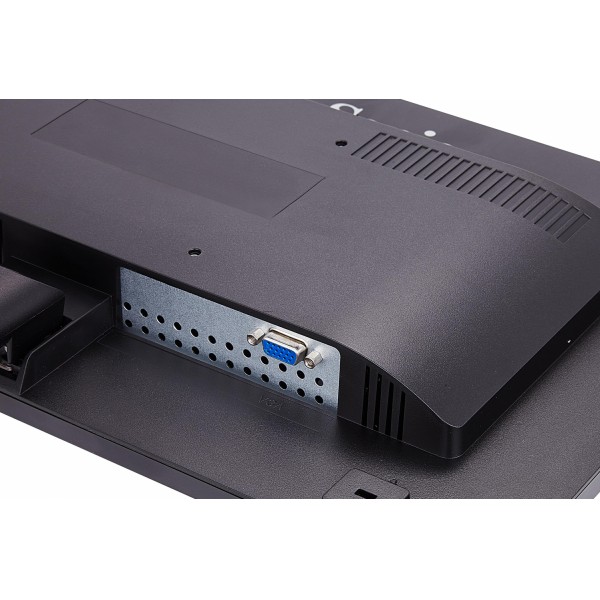

Video: VGA x1
- Wall MountVESA®: 100 x 100mm
- INPUT SIGNALSync: Separate Sync
Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh = 24 ~82 kHz ; Fv = 50 ~75 Hz - POWEROptimize: 15W (typ)
Conserve: 12W (typ)
Voltage: AC 100-240V (Universal); 50/60 Hz
Consumption: 18W (typ) - ERGONOMICSTilt: 20˚ ~ -5˚
- OPERATING CONDITIONSTemperature (ºC): 0°C to 40°C
Humidity: 10% to 90% (no condensation) - DIMENSIONSPackaging (mm): 493 x 348 x 110 mm
Physical with stand (mm): 442.40 x 332.87 x 176 mm
Physical without stand (mm): 442.40 x 271.77 x 46.20 mm - WEIGHTGross (kg): 2.9 kg
Net with stand (kg): 2.2 kg
Net without stand (kg): 2.0 kg - REGULATIONScULus, FCC-B, ICES003, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
- RECYCLE / DISPOSALPlease dispose of in accordance with local, state or federal laws
- WARRANTY*Warranty offered may differ from market to market
- PACKAGE CONTENTSLCD Display Power Cable D-Sub Video Cable Quick Start Guide
*Actual content may differ from market to market
