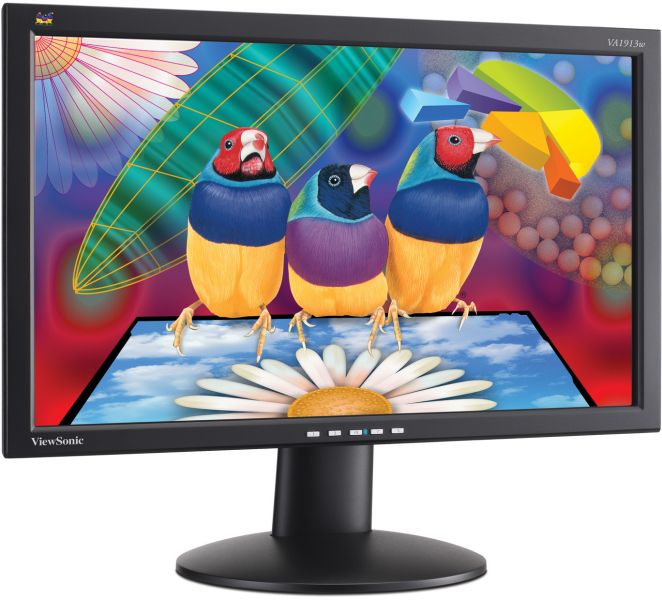

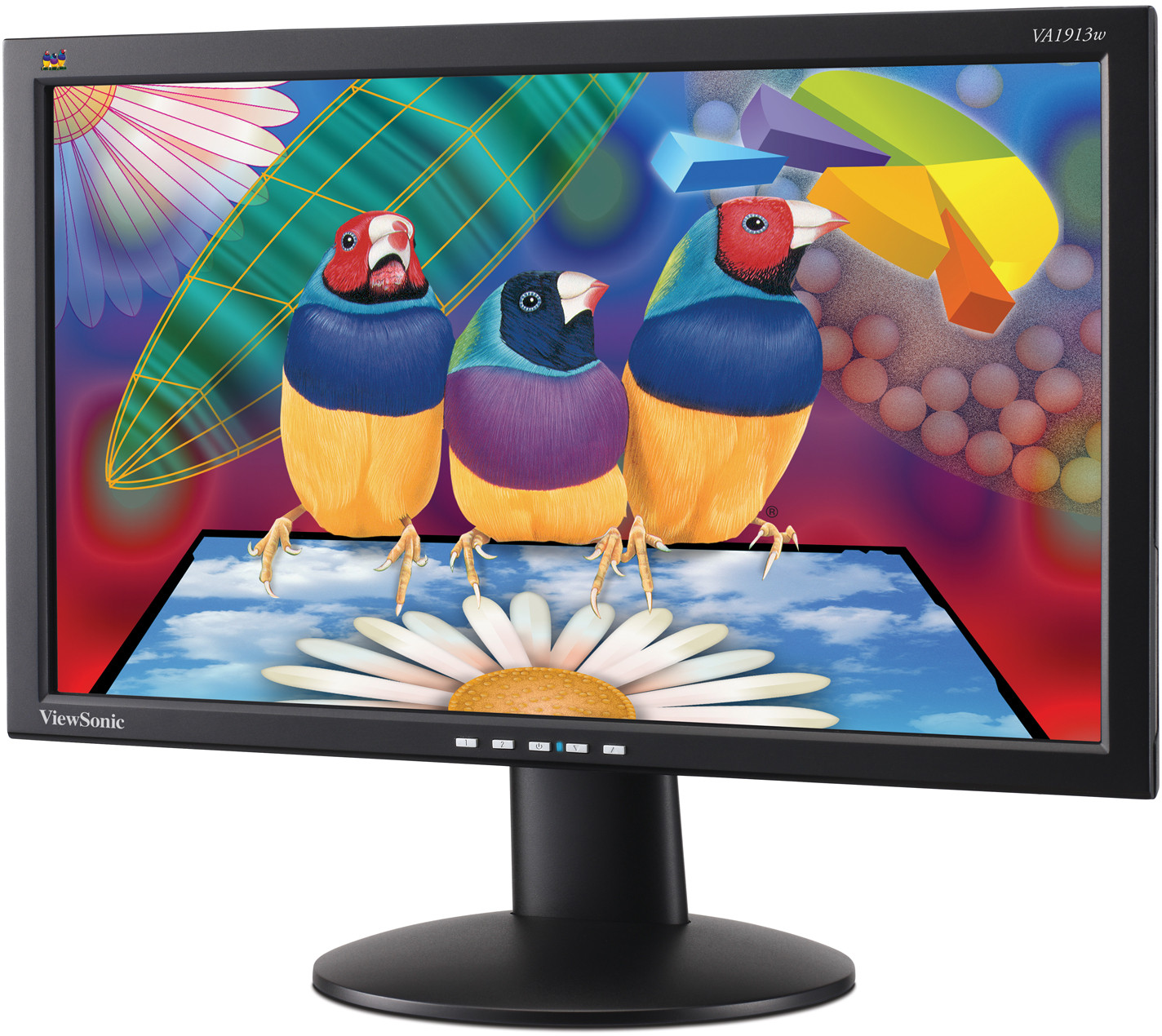

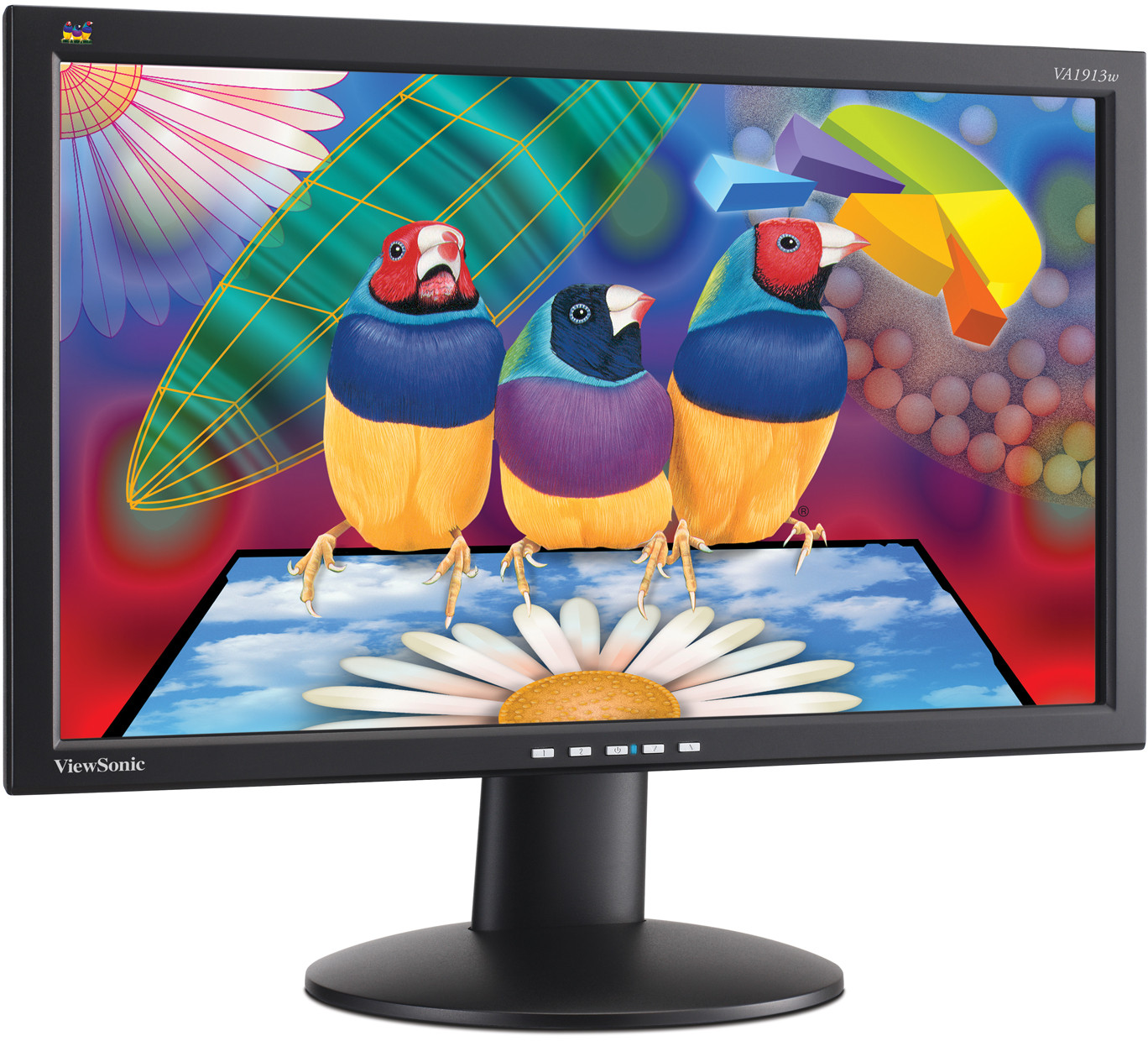

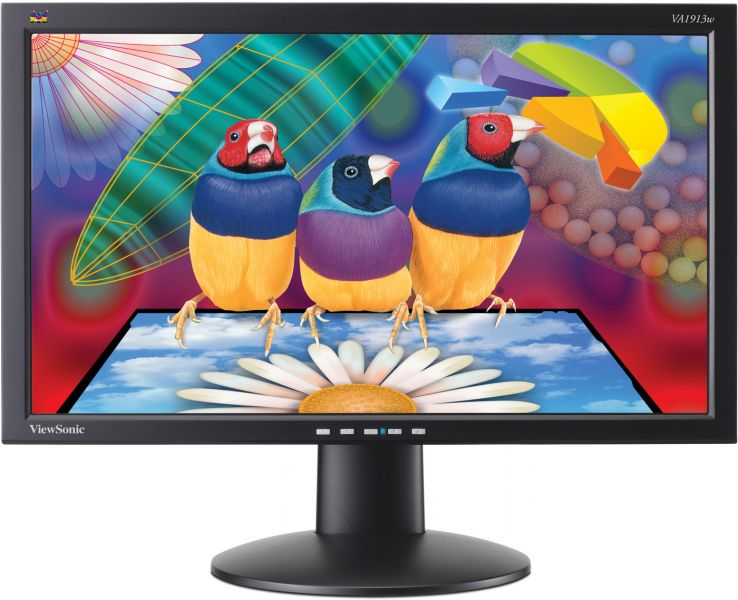

VA1913w
48cm / 19" (18.5" VIEWABLE) 16:9 WIDESCREEN LCD WITH 10,000:1 DYNAMIC CONTRAST RATIO
Widescreen for work and play
ViewSonic’s 48cm / 19" VA1913wm 16:9 widescreen display features aspect ratio selection in the OSD to ensure a full, undistorted screen image. High brightness and fast video response deliver brilliant, blur-free images, while the ultra-high 10,000:1 dynamic contrast ratio produces greater detail and definition especially in darker images. Ecomode automatically conserves power when not in use. The VA1913w is suited to home/small office users, students, gamers and corporate professionals who already have an audio solution. SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1000:1 (Typ.)
Viewing Angles: 170° (H), 160° (V) (CR 10:1)
Brightness: 300 cd/m² (Typ.)
Display Area: 409.8mm (H) × 230.4mm(V)
Optimum Resolution: 1366×768
Response Time: 5ms
Light Source: 50,000 hrs (Typ.)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.3mm (H)×0.3mm (V)
Size: 46.99 cm (18.5") wide Color TFT Active Matrix LCD 16:9 aspect ratio
Color Support: 16.7 M ( 6-bits + Hi FRC ) Panel
Dynamic Contrast Ratio: 10000:1 - COMPATIBILITYPC: VGA up to 1366×768 Non Interlaced
Mac®: Power Mac, up to 1366×768
- DIMENSIONSPhysical With Stand: 447 × 350 × 199 (mm), 17.6 × 13.8 × 7.8 (in)
Physical Without Stand: 447 × 268 × 63(mm), 17.6 × 10.6 × 2.46 (in) - REGULATIONSCB, TCO'03, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, Energy Star,
NEMKO/ERGO, CE, Ukraine, GOST-R+Hygienic, SASO, BSMI, PSB,
C-TICK, MIC, VCCI, CCC - INPUTSync: Separate Sync
Analogue: RGB Analog ( 75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24-82kHz, Fv: 50-85Hz - CONNECTORAnalogue: 15 pin mini D-sub×1
Power: Built-in power Adapter, 3-Pin plug - POWERVoltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 23W (Max.)
Eco Mode: optimize 18W / conserve 15W
Save Mode (W): <=1W - CONTROLSBasic: [1], [2], Power, Down[▼], Up[▲]
OnView®: Auto image adjust, contrast, brightness, ViewMatch® color
adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information
(resolution, H-freq, V-freq, pixel clock, model number, serial
number, web site), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD background),
memory recall - OPERATING CONDITIONSTemperature: 5°C - 35°C (41°F - 95°F)
Humidity: 20 - 80% (Non condensed) - WEIGHTNet: 3.4 kg (7.5lbs)

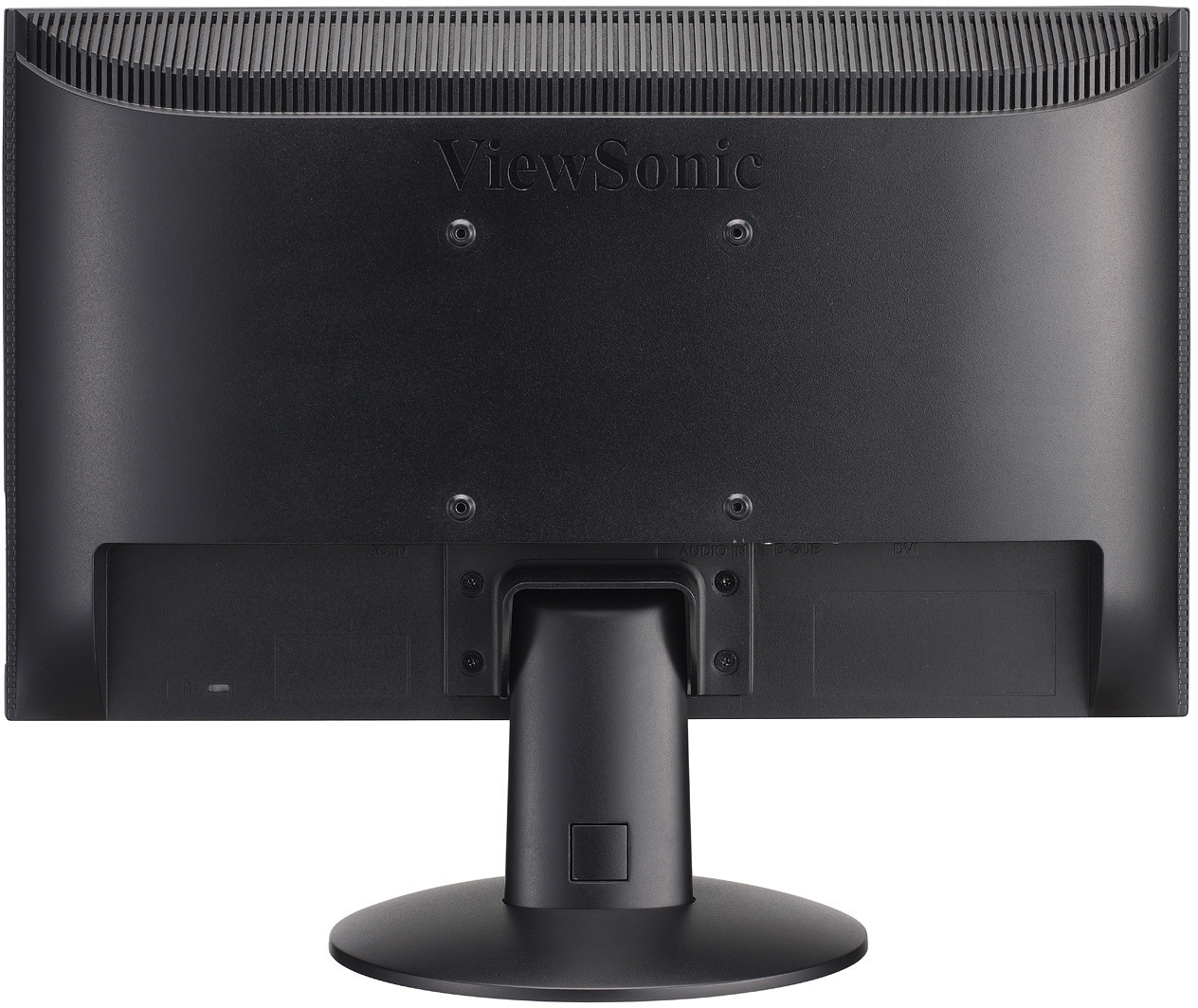

- VESA MOUNT COMPLIANTVESA 100mm x 100mm

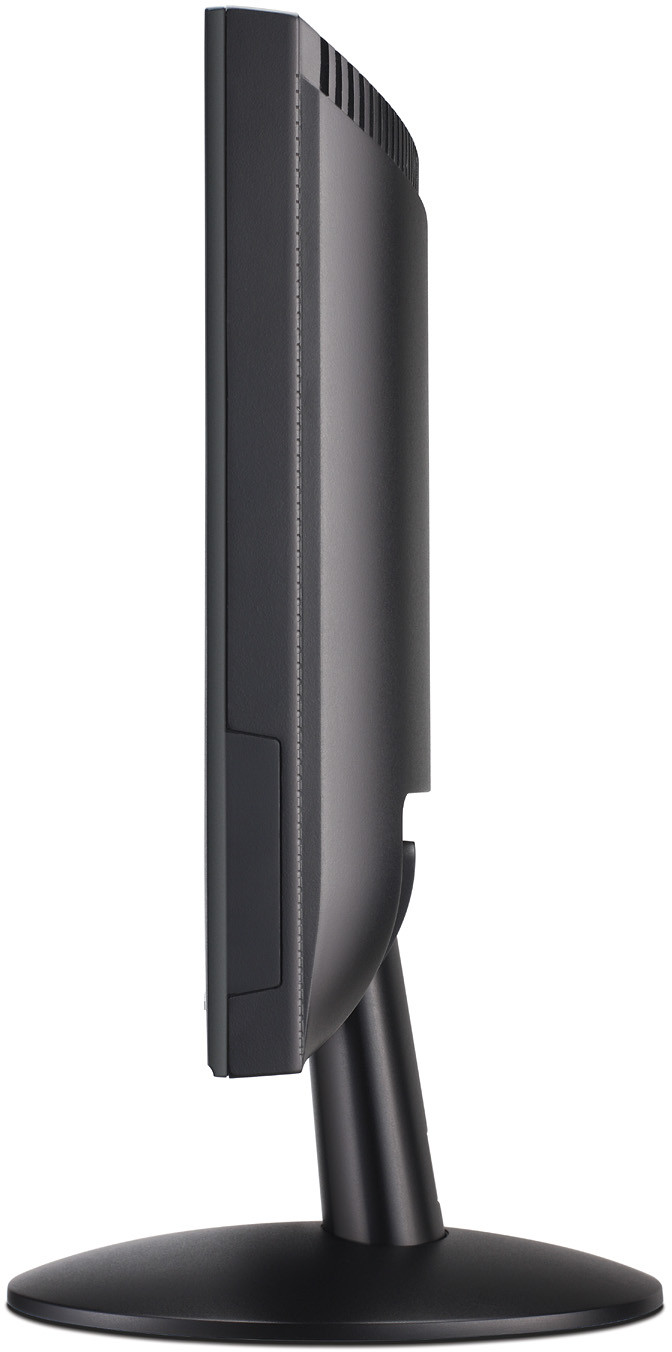

- ERGONOMICSTilt: 20° ~ -5°
