OVERVIEW

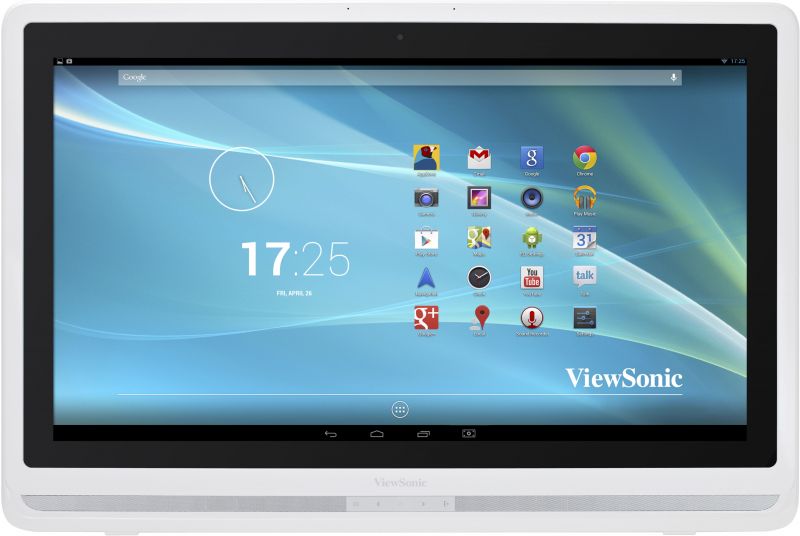

The ViewSonic SD-A245 is a 24” (23.8” viewable) multi-touch Smart Display with 1920 x 1080 Full HD resolution. It features a NVIDIA Tegra 33 1.7Ghz processor and Citrix® XenMobile® to provide a manageable, locked-down solution for enterprise. Versatile connectivity options include HDMI (MHL), two full-size USB ports, micro & mini USB, SD card reader, RJ45 and headphone jack, and also a 2M-pixel webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents and multimedia files. Integrated speakers with the ViewSound Premium Audio system complete the package for multimedia enjoyment. The SD-A245 provides the security and control needed on your desktops to leverage the investments being made in mobile and cloud-based tools.

Dual Point Optical Touch for Intuitive Operation

The SD-A245 smart display client is equipped with Dual Point Optical Touch technology that enables users to enjoy a responsive, tablet-like browsing experience. Users can also utilize the smart display client as a 24" (23.8" viewable) Full HD touch display to connect to existing PCs, laptops, or tablets.

SD-A245 Dual-Touch feature

Multimedia Ready

With a built-in 2MP webcam, integrated microphone and speakers, and 1920 x 1080 Full HD resolution, the SD-A245 offers a complete multimedia package for everything from video conferencing, to streaming high resolution content.

SD-A245 Quad-core-Processer feature

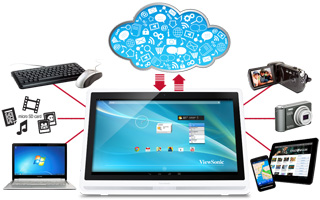

Versatile Connectivity Options

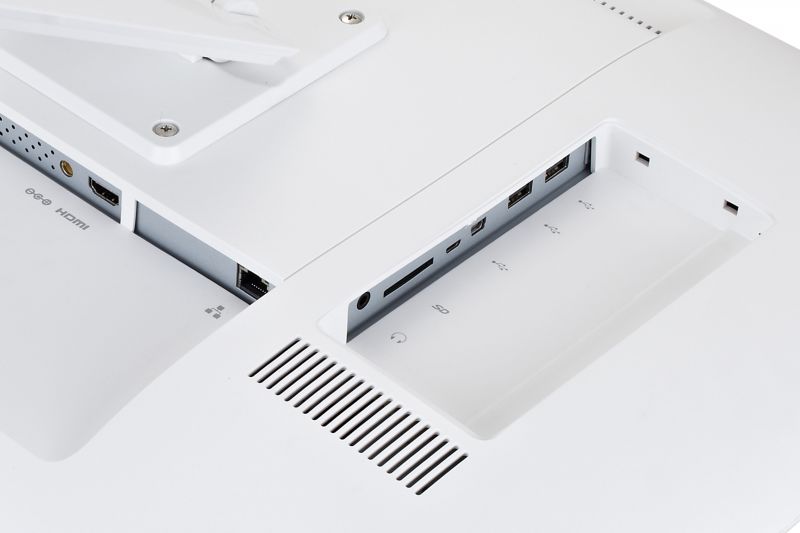

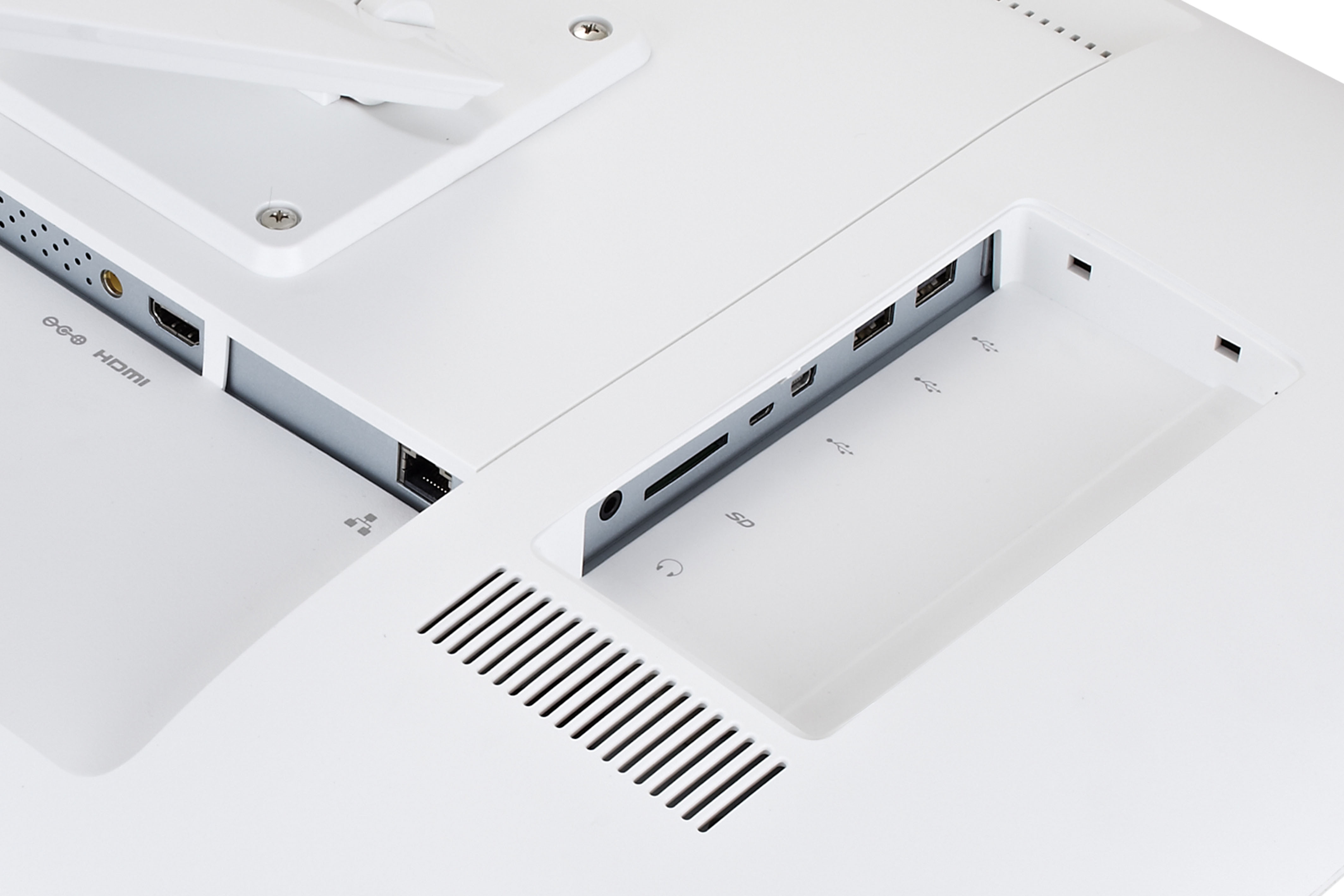

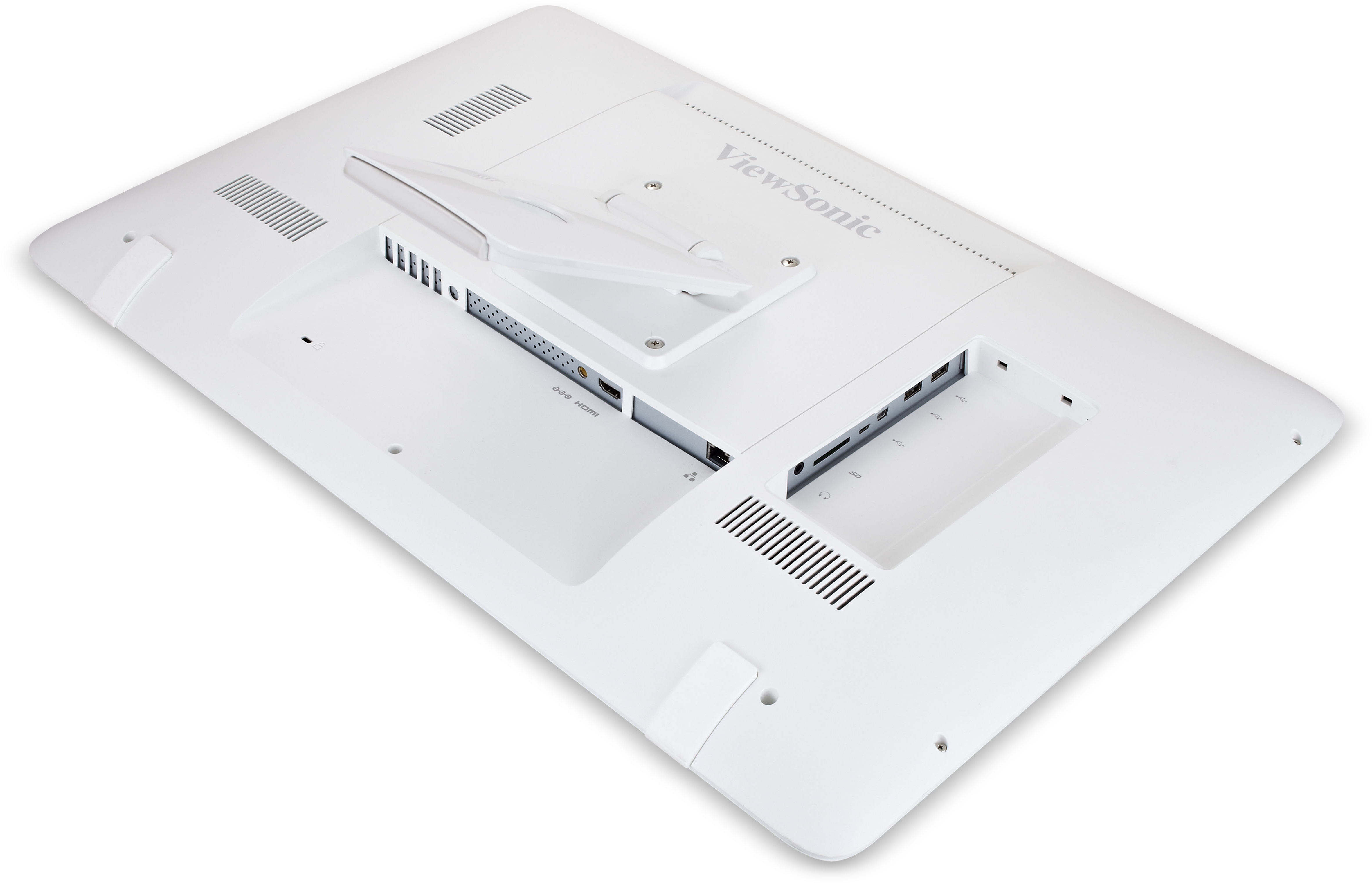

For further functionality and interactivity, the SD-A245 offers a number of connectivity options including HDMI, two full-sized USB ports, a micro USB and a mini USB, and SD card storage. The SD-A245 also has integrated RJ45 Ethernet, Wi-Fi, and Bluetooth for connecting to the internet and cloud.

SD-A245 Connect-Devices feature

Simplify IT needs

The SD-A245 supports use cases where the IT staff deploys SaaS and Web applications, without any backend virtualization infrastructure—this significantly simplifies IT infrastructure needs, but still provides a managed and secure environment.

IT Secure Notext

Awesome Computing Power

Equipped with the powerful NVIDIA Tegra 33 quad-core processor, the SD-A245 provides smooth, lightning-fast computing no matter what applications are running.

Quad Core-Icon V-BL NVIDIA Tegra 3 Portrai

Continuing Innovation

Leveraging our 25-year display heritage, ViewSonic continues to innovate and lead the industry with our next-generation smart displays. The integration of Citrix XenMobile within the ViewSonic SD-A245 smart display client provides corporate and enterprise customers an innovative, next-generation thin client—all within a 24" (23.8" viewable) LED touch screen.

Citrixreadyblack

Run local applications

The SD-A245 can be used off-line to run local applications without any demands on backend PC servers. Locally running content also reduces network bandwidth.

Natively run multimedia

Running full HD videos with fast playback is a challenge for many desktop virtualization infrastructures, but the ViewSonic SD-A245 can natively run multimedia files at blazing-fast speeds while also reducing network bandwidth.

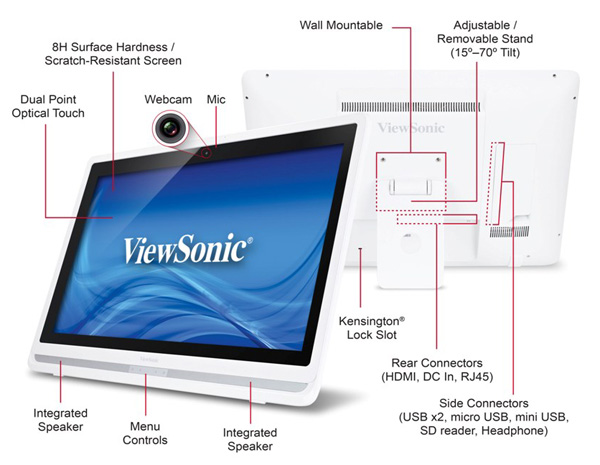

SD-A245 Connector feature

SPECIFICATIONS


  • LCD
    Type: 24" (23.8" viewable) Wide Colour TFT Transmissive LED
    Contrast Ratio: 1000:1 (typ.)
    Viewing Angles: 170º horizontal, 160º vertical
    Display Area: 19.0" horizontal x 10.7" vertical; 23.8" diagonal
    Optimum Resolution: 1920 x 1080p
    Response Time: 5ms (typ.)
    Brightness: 250 cd/m2
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
    Touch Controller: Dual touch with pinch and zoom
    Touch Panel: Optical touch type, with glass 8H
  • COMPATIBILITY
    PC: PC-compatible (from VGA up to 1920x1080 non-interlaced)
  • DIMENSIONS
    Physical (WxHxD): 24.0 x 18.9 x 3.0 in. / 610 x 480 x 75 mm
    Packaging: 29.0 x 20.5 x 6.5 in. / 735 x 520 x 164 mm
