Discover the future of television today with the ultimate LCD TV

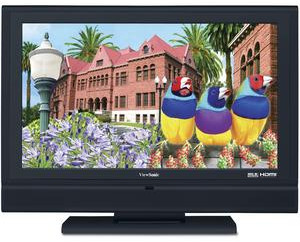

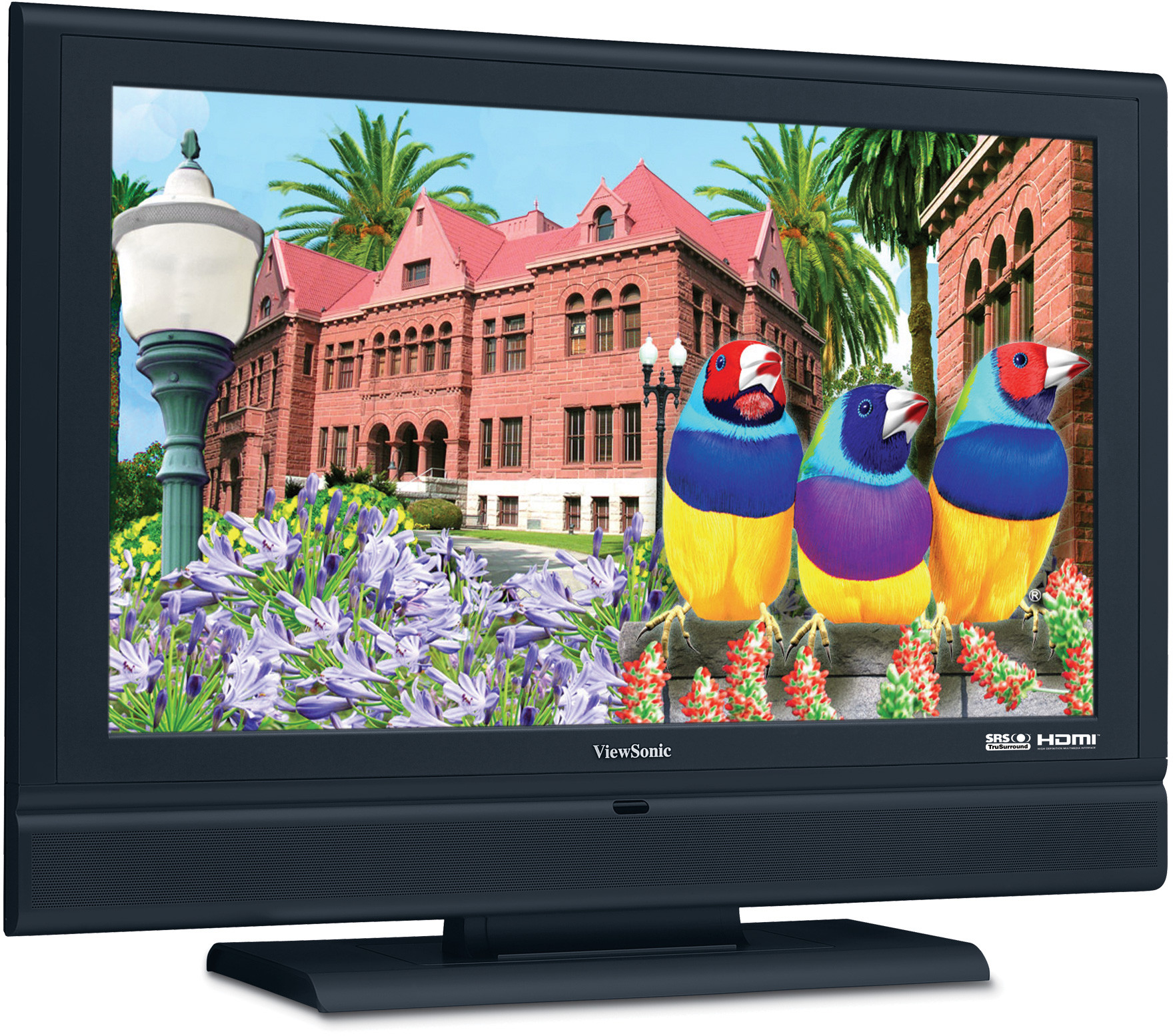

The ViewSonic N3760w 37” (94cm) ensures you are prepared for the future of television broadcasting. This slim and stylish designed HD ready LCD TV has ADVANCED IMAGE PROCESSING technology that delivers stunning pictures on the 1 mega pixel, 1366 x 768 resolution display. The HDMI (HDCP Compliant) interface, guarantees true digital connectivity for improved uncompressed digital video and audio quality that lets you see more and hear more. Whilst the ultra HIGH CONTRAST & BRIGHTNESS screen gives you an impressively sharper, brighter and richer image. Featuring the latest gener ation ULTRA FAST-RESPONSE time panel, it will provide for a thrilling viewing experience when watching fast moving and high-speed images. The integrated 20-watt SRS WOW stereo speakers will immerse you in virtual surround sound to enhance your TV entertainment.
SPECIFICATIONS
- LCDType: 94cm / 37" SIPS colour TFT active matrix, wide 1366 x 768
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 178° horizontal, 178° vertical (at 10:1)
Glass Surface: Anti-glare 3H
Display Area: 82cm (horizontal) x 46.1cm (vertical), 94cm diagonal
Response Time: 8ms (grey-to-grey)
Aspect Ratio: 16:9
Brightness: 500cd/m2 (typ.) - COMPATIBILITYPC: Compatible from VGA up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®: Power Mac™ up to 1360 x 768, 1360 x 768 preferred - DIMENSIONSW x H x D mm: 960 x 730 x 280 (with base)
- REGULATIONSCE, FCC-B, BSMI, CSA (c-UL), UL1950, BSET-7, PCT
- PACKAGE CONTENTSLCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable,1.8m SCART
cable, remote control, batteries, quick start guide, user guide - WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - CONNECTORDigital: 1 x HDMI incl. HDMI with RCA Audio L/R In for DVI source
Audio: 1 x RCA R/L Out
S-Video: 1 x 4-pin mini DIN jack with RCA Audio L/R In
Headphone: 1 x 3.5mm mini stereo jack
SCART: 3 x SCART3 (CVBS In/Out, RGB In, S-video In, Audio In/Out)
Tuner: 1 x Coax RF (PAL/SECAM)
PC: 1 x 15-pin mini D-sub with 3.5mm mini stereo jack L/R In
Composite Video: 1 x RCA (CVBS) In with RCA Audio L/R In,
1 x RCA (CVBS) Out
Component Video: 1 x RCA set (YPbPr/YCbCr) with RCA Audio L/R In
Power: 3-pin plug (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal, fanless power supply
Consumption: < 220 watt (max.), < 1.5 Watt in power save mode - CONTROLSBasic: Power, Source, Menu, Channel up/down, Volume up/down
OSD: Video (picture, contrast, brightness, saturation, tint, sharpness, NR),
Audio (volume, balance, equaliser, treble, bass, sound mode, SRS),
Screen (display mode, H. size, H/V position, phase, default, auto sync,
colour temperature), Setup (tuning, programme table, auto search),
Tuning Sub (programme number, fine tuning, channel name, frequency,
TV system, manual search, skip), Programme Table (channel name), Auto
Search (country, auto search), Options (menu language, sleep timer,
menu background, source info, reset, PC display), power lock - OPERATING CONDITIONSTemperature: 0°C to 35°C
Humidity: 20% to 90% (non condensation) - WEIGHTNet: 31kg (with base), 25.4kg (without base)
- TELETEXT1000 pages
- VIDEO INPUTPAL, SECAM, NTSC4, SD (480i, 576i), HD (720p, 1080i 50/60Hz)
- AUDIOSpeakers: 2 x 10 watt SRS WOW (virtual surround-sound)
