Enhanced home entertainment.

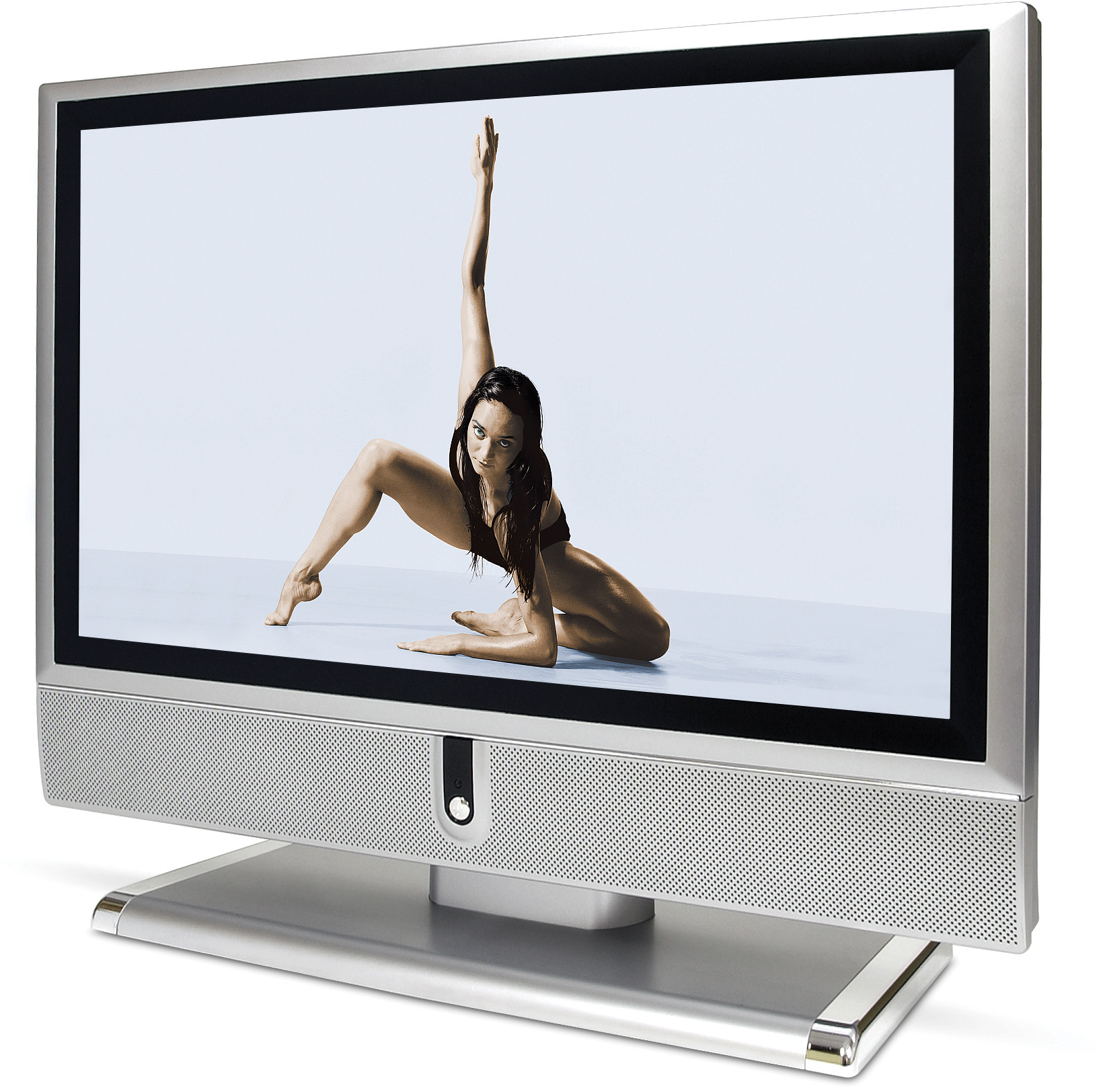

ViewSonic’s NextVision N3200w 32" HD LCD TV features advanced image enhancement technologies that deliver stunning television and video entertainment. INTENSE COLOUR, HIGH CONTRAST IMAGES, 1280 x 768 resolution, and powerful 12-watt stereo speakers with virtual surround sound capability immerse you in the action. Integrated connections give you versatile high-definition TV compatibility regardless of your HD signal source. BRINGS ALL YOUR MULTIMEDIA COMPONENTS TOGETHER, and there's even a digital media reader for viewing your favorite digital photos. The N3200w offers DVI/HDCP (high-definition content protection) capability ensuring long-term compatibility with evolving technology. The stylish flat panel with distinctive design complements your décor and lifestyle.
SPECIFICATIONS
- LCDType: 76.2cm / 30" (29.5" viewable) wide colour, 1280x768 LCD TV
Contrast Ratio: 500:1 (typ)
Viewing Angles: 170º horizontal, 170º vertical
Glass Surface: Anti-reflective coat, hard coat
Display Area: 64,2cm horizontal x 38,6cm x 74,9cm diagonal
Response Time: 16ms (typ)
Aspect Ratio: 15:9
Brightness: 500 cd/m2 (typ) - COMPATIBILITYPC: Compatible from VGA up to 1280x1024 non-interlaced,
1280x768 preferred with 3.5mm mini-stereo audio
Mac®: Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred) - DIMENSIONSW x H x D mm: 860mm x 524mm x 207mm
- REGULATIONSFCC class B, BMSI, UL1950, cUL, CE, C-Tick, CSA
- WARRANTYPlease see:
http://www.viewsoniceurope.com/UK/Support/warranty.htm - AUDIOSpeaker: 2x 10-watt
Output: Audio output, 1x R/L (line level/variable)/1x subwoofer output - POWERVoltage: AC 90–240V (universal), 50–60Hz
Consumption: 185W (typ) - CONTROLSBasic: Menu, -, +, down, up, input, power
Picture: Brightness, contrast, colour, tint, sharpness, colour temp
(cool, normal user)
Set Up: OSD H/V position, OSD timeout, language, system reset
(firmware version info)
Audio: Volume, bass, treble balance, earphone toggle, DVI audio-toggle,
speaker, line out, subwoofer toggle, MTS select
TV: Antenna input, caption mode, auto scan, add/delete channel, - OPERATING CONDITIONSTemperature: 0–35ºC
Humidity: 20–90% (non-condensing) - WEIGHTNet: 860mm x 524mm x 207mm
- TELETEXTFull 250 page Fastext Memory
- Video Output Resolution1x RGB D-sub 15-pin
- Input2 x Euro Scart (RGB, CVBS, SVHS, R/L audio)
1 x RCA component (YPbPr), 1 x R/L
1 x RCA component (YCbCr), 1 x R/L
1 x RGB D-sub 15pin, 1/8" stereo mini jack
1 x DVI-D (HDCP)
1 x CVBS, 1 x R/L audio
1 x RS232 service port - no user function
2 x TV / RF multi region dual tuners (PAL-I/B/G, SECAM-L)
