Experience brilliant home entertainment.

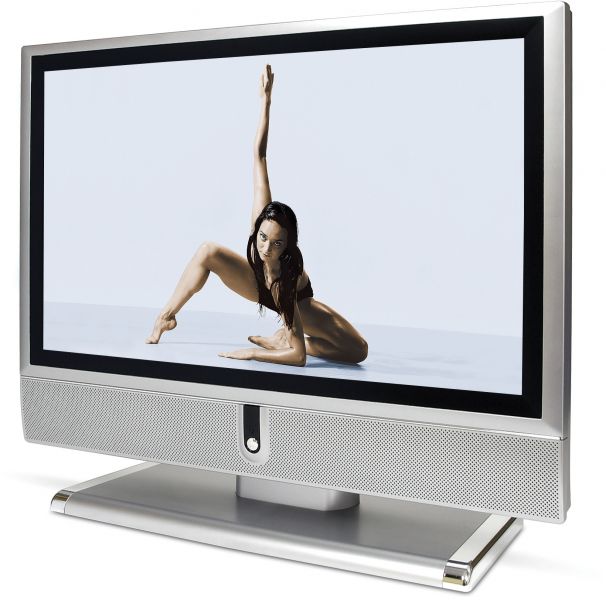

Experience the brilliant difference of high-quality video entertainment with ViewSonic’s N2750w high-performance 27” wide-screen LCD TV. Featuring a visually appealing, contemporary, slim design, the N2750w is ready to deliver stunning bestdefinition television as well as both enhanced and standard television signals. Immerse yourself in the vivid colours and crisp images delivered by true 1280 x 720 resolution that stand out with high brightness and contrast ratios. Multiple video and audio connections allow direct connection to DVD players, game consoles and more, to build a complete BEST-DEFINITION HOME ENTERTAINMENT SYSTEM right around the N2750w. Two powerful 5 watt stereo speakers and SRS virtual surround sound capability complete your home entertainment experience. What’s more, ViewSonic has built long-term compatibility into the N2750w so you can continue to enjoy the very best in video entertainment in the future.
SPECIFICATIONS
- LCDType: 69cm / 27" colour TFT active matrix, wide 1280 x 720, true HDTV format
Contrast Ratio: 600:1 (typ.)
Viewing Angles: 130° horizontal, 110° vertical (at 10:1)
Glass Surface: Anti-glare, H2 coat
Display Area: 597mm h x 336mm v, 68,6cm diagonal
Response Time: 16ms
Aspect Ratio: 16:9
Brightness: 550cd/m2 (typ.) - COMPATIBILITYPC: Compatible from VGA up to 1280 x 1024, 1280 x 720 preferred
Mac®: Compatible from VGA up to 1280 x 1024, 1280 x 720 preferred - DIMENSIONSW x H x D mm: 680mm x 540mm x 243mm (W x H x D)
- REGULATIONSCE, CB, TÜV/GS
- WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - CONNECTORAudio: 2 x RCA R/L In,
1 x RCA R/L Out
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART (CVBS In/Out, RGB In, Audio Out)
Tuner: 1 x RF TV/PAL B/G/I SECAM L/DK
PC-VGA: 1 x D-sub 15-pin
Power: 3-pin plug
Composite Video: 1 x RCA (CVBS)
Component Video: 1 x RCA (YPbPr)
Service: 1 x RS232 - POWERVoltage: AC 90–240 V, 50/60 Hz (Auto-Switch), internal power supply
Consumption: < 150 W (typ.) - CONTROLSOSD: Auto-Adjust, Contrast, Brightness, Colour, Sharpness, Tint, H/V
Position, Phase, Treble, Bass, Balance, Aspect Ratio, Colour Temperature,
Main Source, Language, Country, Auto Scan, Fine Tune,
Channel Edit, Memory Recall, PIP Source, PIP Mode, PIP Size, PIP
H/V Position, PIP Brightness, OSD Transprency, Time Out, Sleep
Settings
Physical: Power on/off, Menu, Channel up/down, Volume up/down - OPERATING CONDITIONSTemperature: 0-40°C
Humidity: 0-40°C - WEIGHTNet: 16kg
- AUDIOSpeakers: 2 x 5 watt
