OVERVIEW

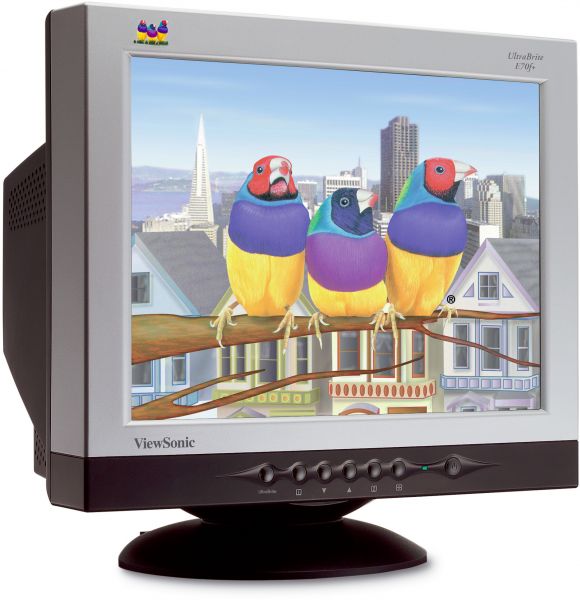

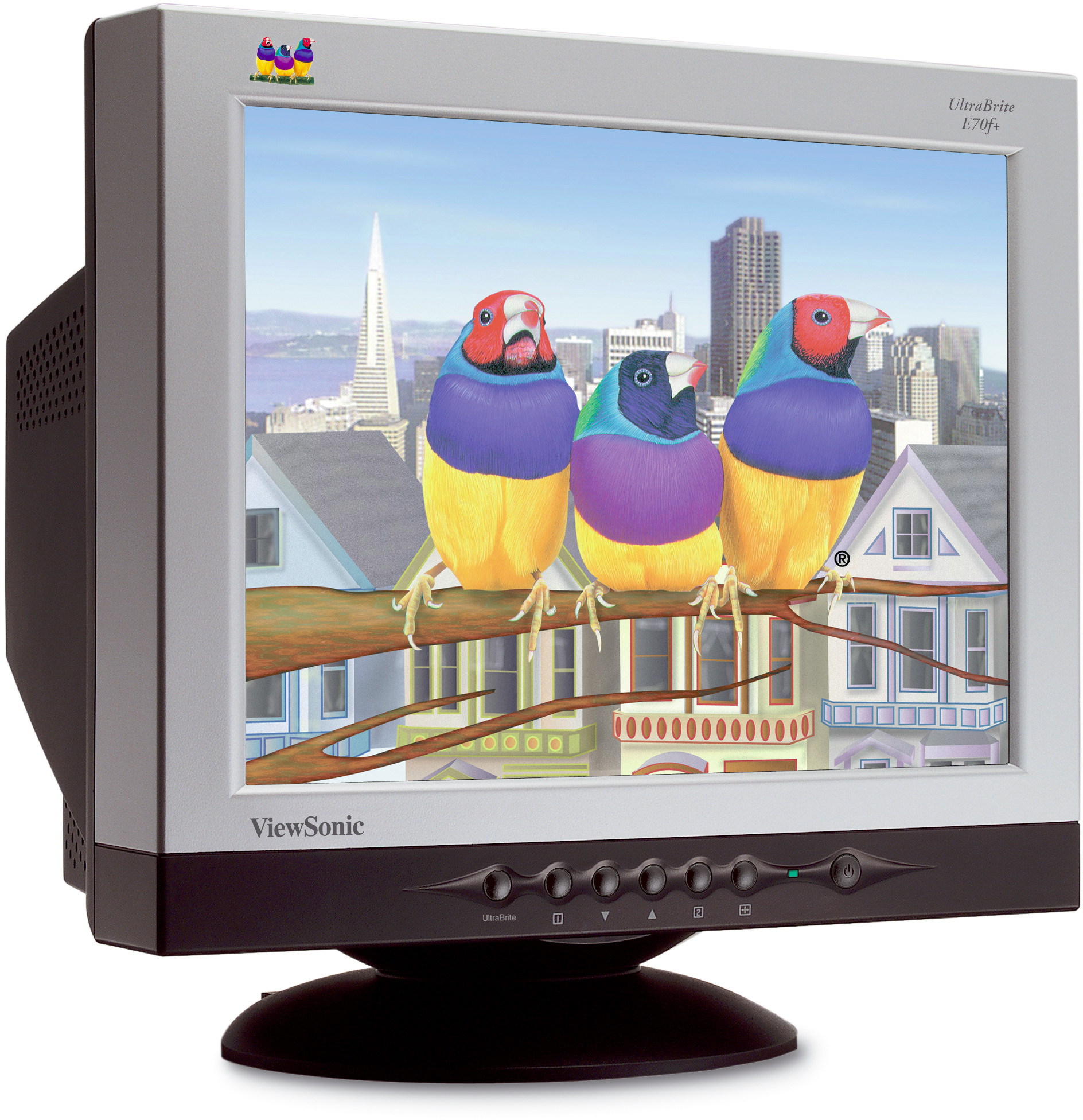

ViewSonic's ultra-stylish black-on-silver E70fSB combines upscale style and crystal clear image performance for exceptional value. The PerfectFlat screen ensures you'll view edge-to-edge, distortion-free images with minimised reflection and glare. Its ultrafine 0.21mm horizontal dot pitch and a flicker-free 1024 x 768 resolution delivers precise picture definition when viewing everyday applications. Adjust your screen with the OnView® controls and secure them with the OSD lock function to ensure optimum screen performance. The E70fSB is ideal for small and home offices, school and internet users.
Affordable performance for work and home
SPECIFICATIONS
- COMPATIBILITYPC: IBM compatible (from VGA up to 1280 x 1024)
Mac®: Power Mac™ (G3/G4 up to 1024 x 768) - DIMENSIONSPhysical With Stand: 400mm (W) x 403mm (H) x 425mm (D)
- REGULATIONSTCO ’99, TÜV/GS, TÜV/ERGO, CE, ISO 9241-3,
ISO 9241-7, ISO 9241-8, ENERGY STAR®, MPR-II, CB,
UL, FCC-B, CSA, NOM, BSMI, VCCI, PSB,
C-TICK, SASO, CCIB, NEMKO, SEMKO, DEMKO, FIMKO,
Gost-R, PCBC, PC ’2001
- WARRANTYThree year limited warranty.
- INPUT SIGNALFrequency: fh: 30-70kHz; fv: 50-160Hz
Video: RGB analogue (75 ohms, 0.7/1.0 Vp-p)
Sync: H/V separated (TTL), Composite - CONNECTORPower: 3-pin plug (IEC320)
Signal: 15-pin mini D-sub (attached) - POWERVoltage: AC 90–264V, 50–60Hz (+/-3)Hz
Consumption: 75W (typ), active off <5W - CONTROLSBasic: Power On/Off, Menu, Down, Up, Select,
Ultra Brite™ toggle, One Touch Auto Adjust
OSD: Contrast, Brightness, H/V Size, H/V Position, Pincushion,
Pin balance, Trapezoid, Parallelogram, Tilt, Moiré,
Degauss, ViewMatch® colour adjust (9300, 6500, 5000,
user), Information, Language, OSD Position, Memory,
Recall - OPERATING CONDITIONSTemperature: 0–40º C
Humidity: 5–95% (non-condensing) - WEIGHTNet: 14.7kg
- VIDEO INPUTBandwidth: 120MHz
- POWER MANAGEMENTMeets TCO’99, Energy 2000, VESA® DPMS
- CRTType: 43cm / 17" (16.0" viewable) CRT, 90º deflection
Dot Pitch: 0.21mm (horizontal), 0.25mm diagonal
Phosphor: RGB P22 medium/short persistence
Glass Surface: Tint (TM = 50%), ARAG® screen treatment - PROGRAMMABLE MODESFactory: 12
User: 10 - DISPLAY AREAFactory Setting: 310mm x 230mm
Maximum Scan: 325mm x 243mm
