OVERVIEW

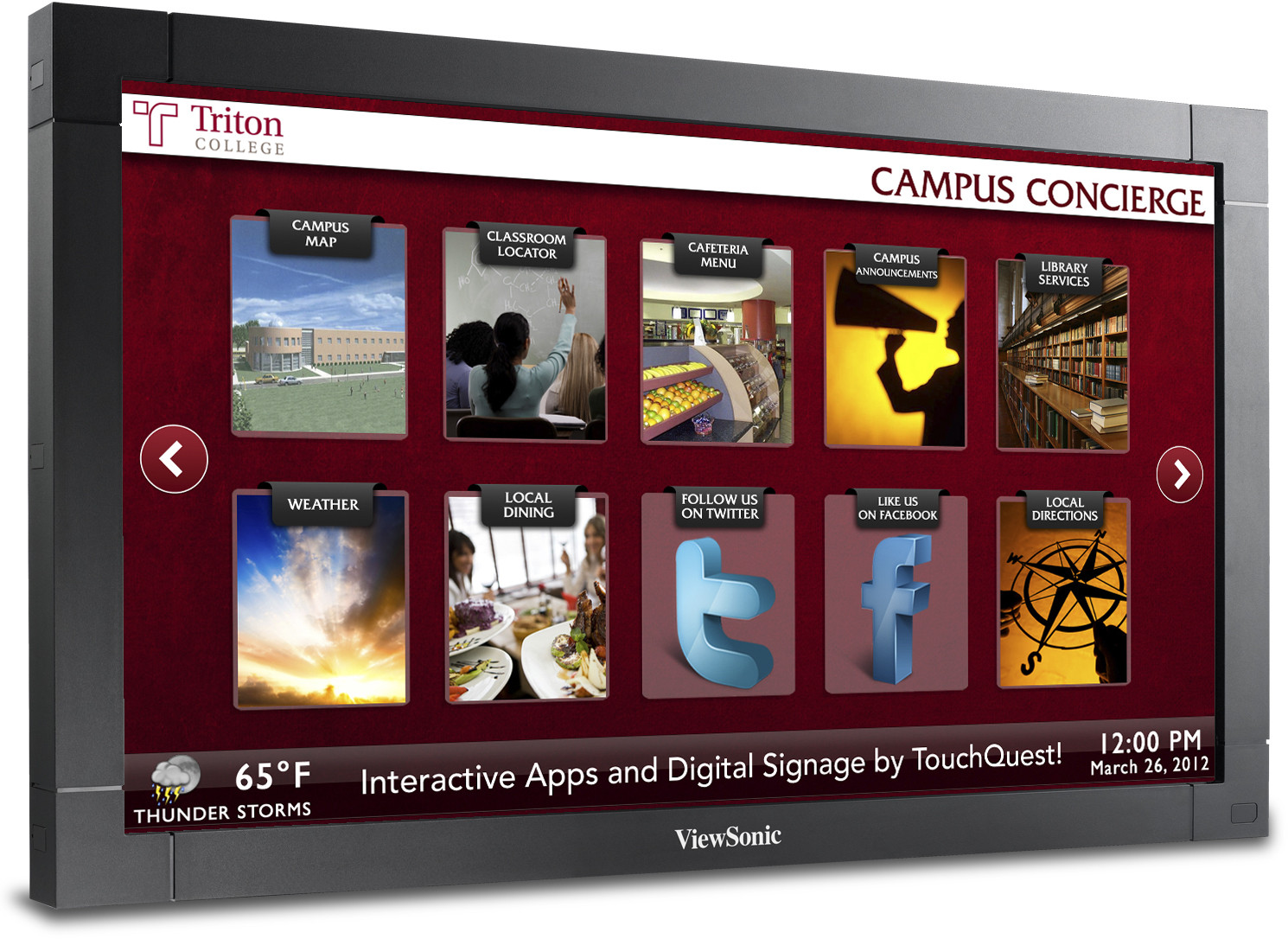

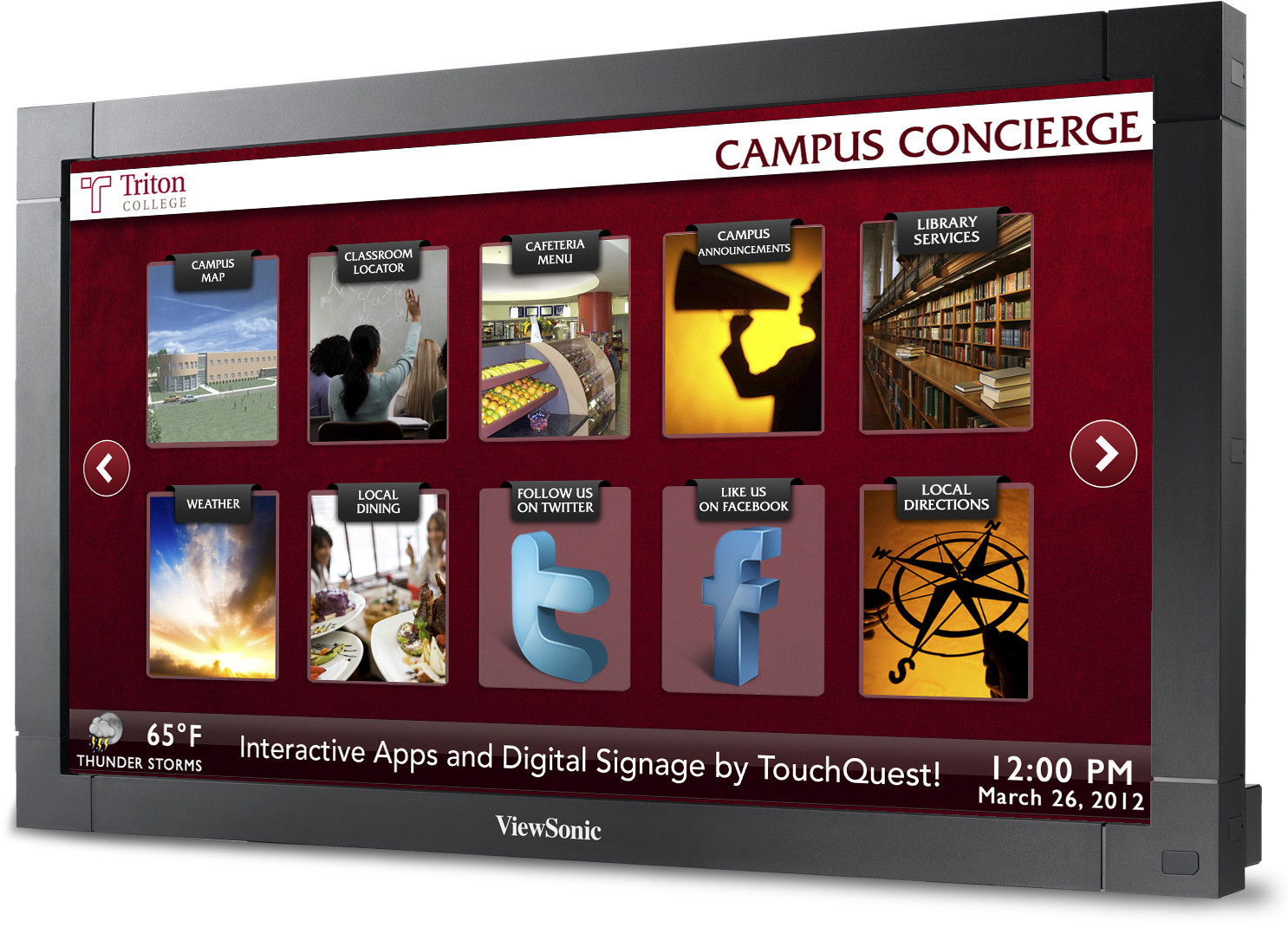

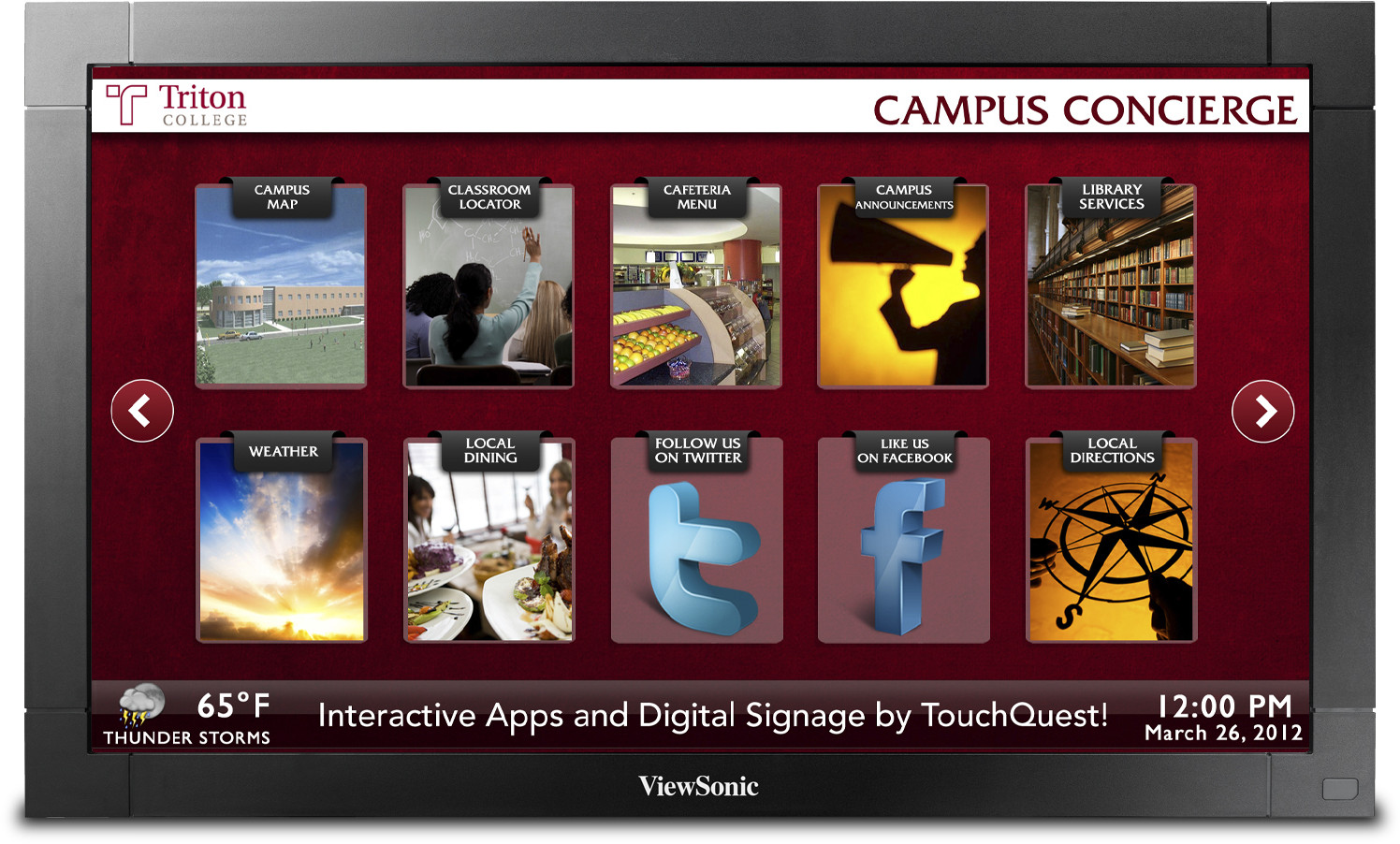

The ViewSonic® CDP4635-T Full HD Touch Commercial Display features a 1920 x 1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4635-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.4 Point Optical Touch for Clearer, Sharper Images
Optical sensors allow for very light touch, making it perfect for high usageenvironments. Surface overlays are not necessary, which helps to create acrystal clear image.Vivid Graphics, Clear Text
Ultra-high brightness of 400 nits (typ), contrast ratio of 4,000:1,and 1920x1080 full HD optimum resolution provide vibrant videoand crisp data.
Applications:
• Ideal for way-finding• Transportation
• Public interactive advertising
• Hospitality
• Corporate messaging
Expand Your Options with Plug-and-Play Connectivity
Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-videoand composite video. RS-232 daisy-chain capable.
SPECIFICATIONS
- COLORSBlack
- LCDType: 46" colour TFT active matrix, wide LCD
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 400 cd/m2 (typ)
Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Resolution: 1920 x 1080, 530mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 43" x 26.8" x 13"
(1091.1mm x 681.7mm x 328.3mm)
Physical Without Stand: 43" x 25.4" x4.7"
(1091.1mm x 645.7mm x 120.1mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD

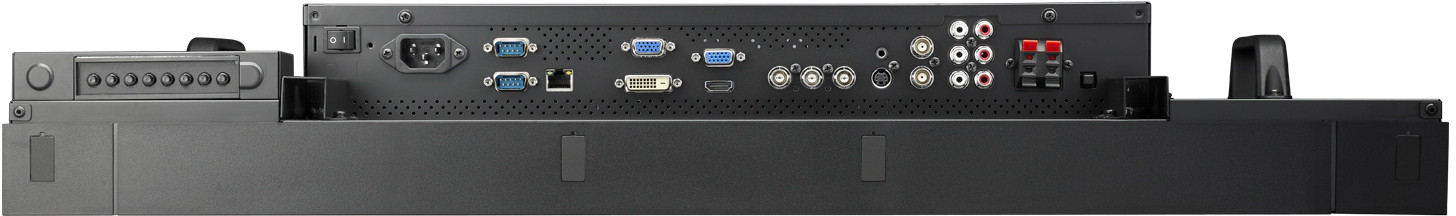

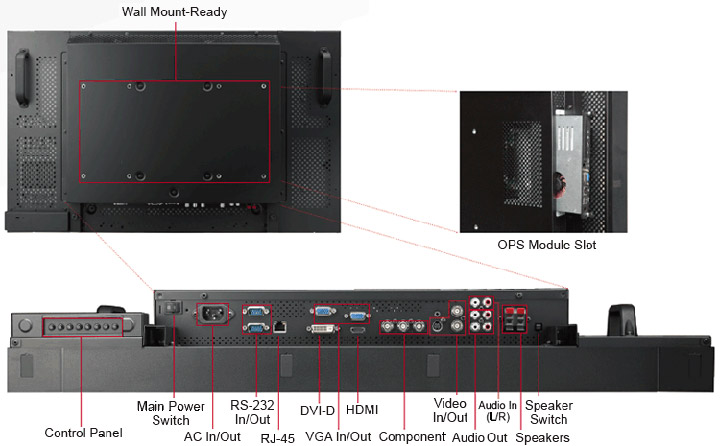

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position - WEIGHTNet With Stand: 58.1 lb. (26.5 kg)
Net Without Stand: 57.3 lb. (22.6 kg)
Gross With Stand: 68.3 lb. (31 kg) - OPERATING CONDITIONSHumidity: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. - AUDIO OUTSpeakers: 2 x 10w
- OPSOpen Pluggable Specification slot (OPS) ready
