OVERVIEW

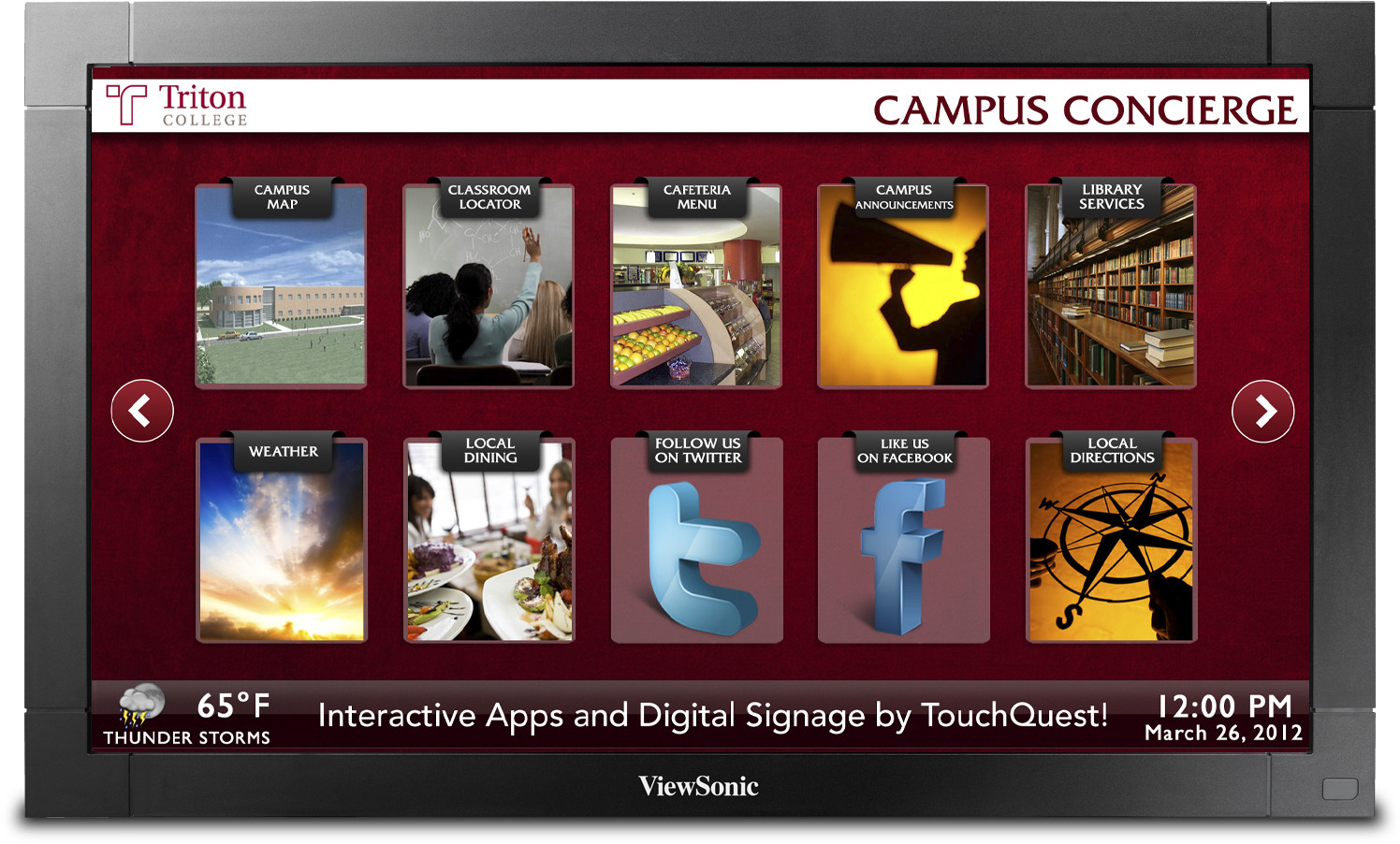

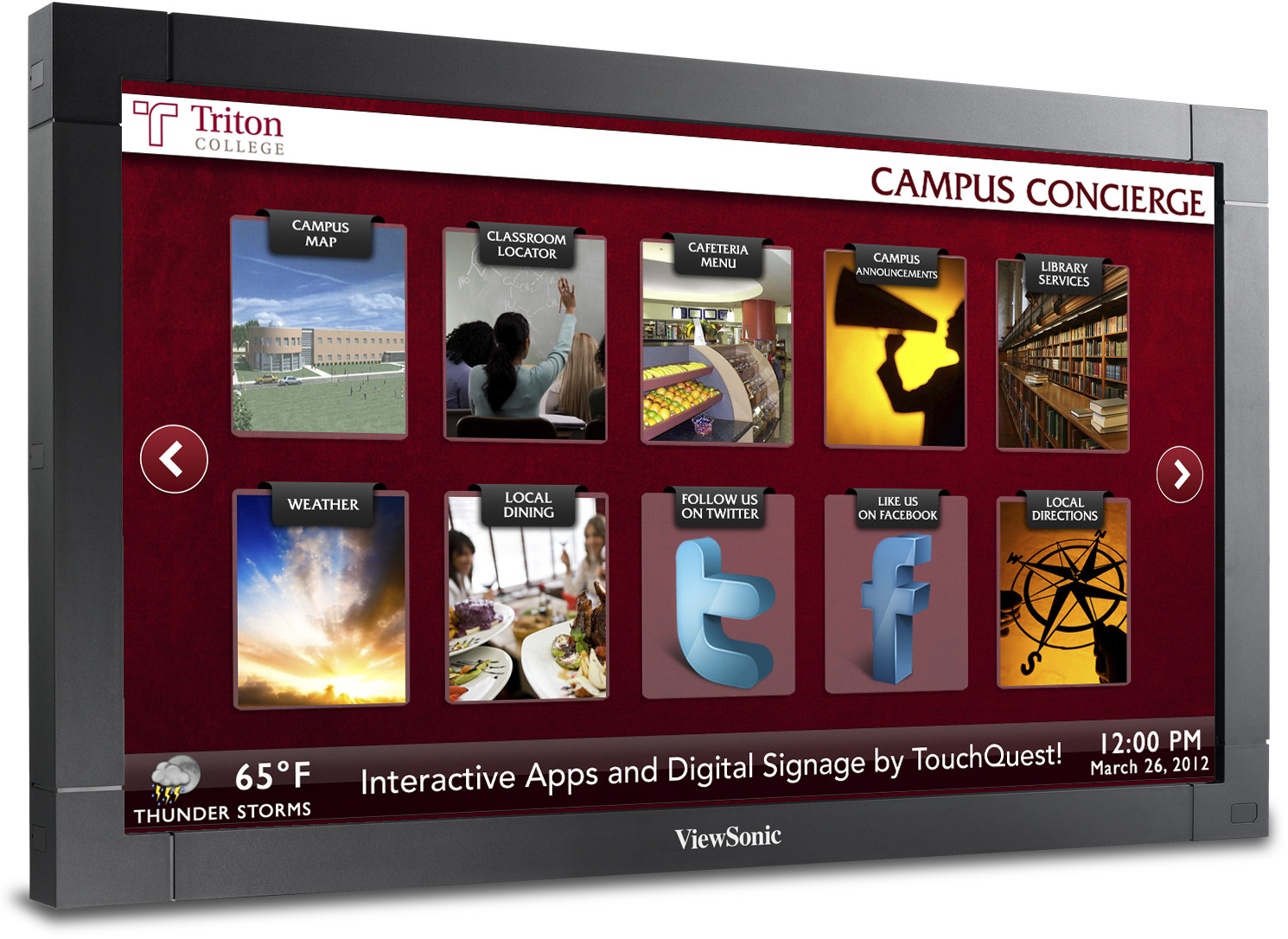

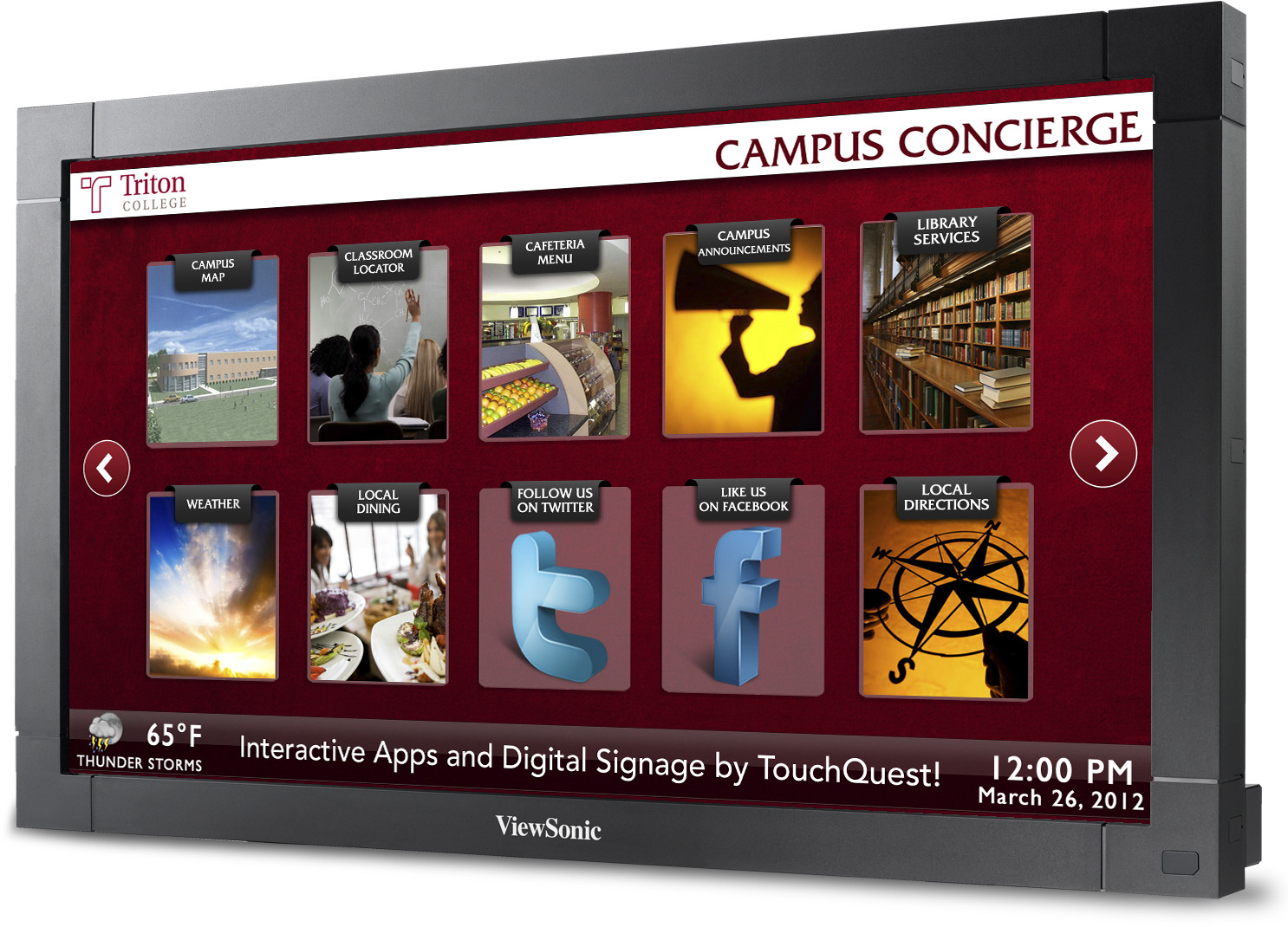

The ViewSonic® CDP4235-T Full HD Touch Commercial Display features a 1920 x 1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4235-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.4 Point Optical Touch for Clearer, Sharper Images
Optical sensors allow for very light touch, making it perfect for high usage environments. Surface overlays are not necessary, which helps to create a crystal clear image.Vivid Graphics, Clear Text
Ultra-high brightness of 450 nits (typ), contrast ratio of 4,000:1, and 1920 x 1080 full HD optimum resolution provide vibrant video and crisp data.Applications:
- Ideal for way-finding
- Transportation
- Public interactive advertising
- Hospitality
- Corporate messaging
Expand Your Options with Plug-and-Play Connectivity
Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video and composite video. RS-232 daisy-chain capable
SPECIFICATIONS
- LCDType: 42" colour TFT active matrix, wide LCD
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 450 cd/m2(typ)
Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Resolution: 1920 x 1080, 435mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 39" x 25.4" x 11.2" / 991.6 x 621 x 328.8mm
Physical Without Stand: 39" x 25.5" x1.5" / 991.6 x 115.5 x 25.5mm
Packaging: 44.8" x 29.3" x12" / 1139 x 743 x 305.2 mm - REGULATIONSFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD

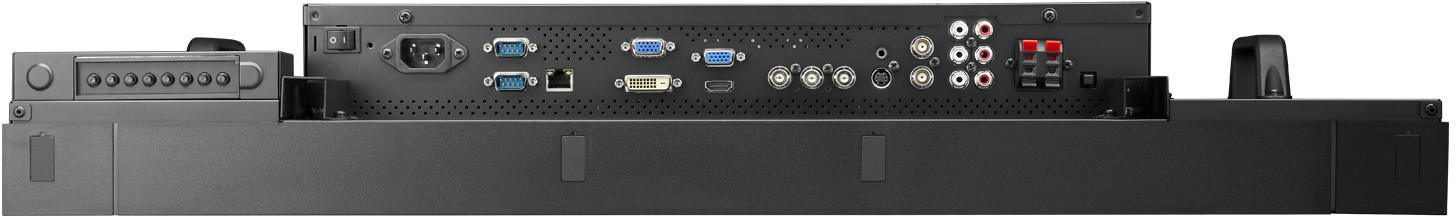

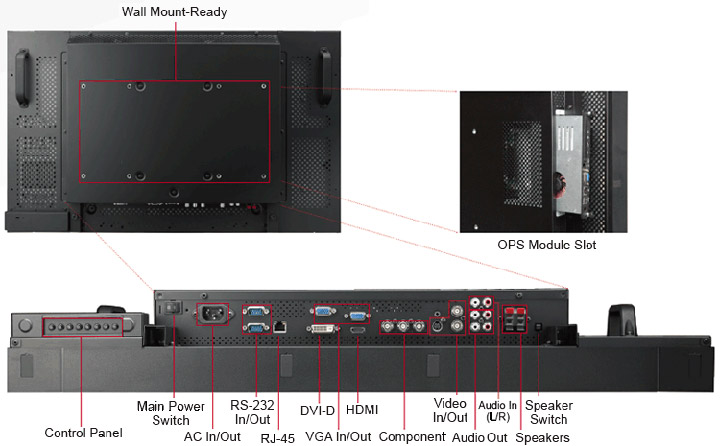

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 210W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position - DISPLAYTouch: Type : Optical Imaging
Capability : 4 simultaneous touches
Support OS : Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires driver), Max OS X, and Linux (requires evtouch)
Touch Resolution : 32,767 x 32,767
Accuracy : +/- 3.5 mm over 95% of touchable area
Response Time : 9ms to 22ms depending on configuration; 14ms (typ)
Touch Method : Touch with any object, Finger, Pen or Brush
Connection : USB

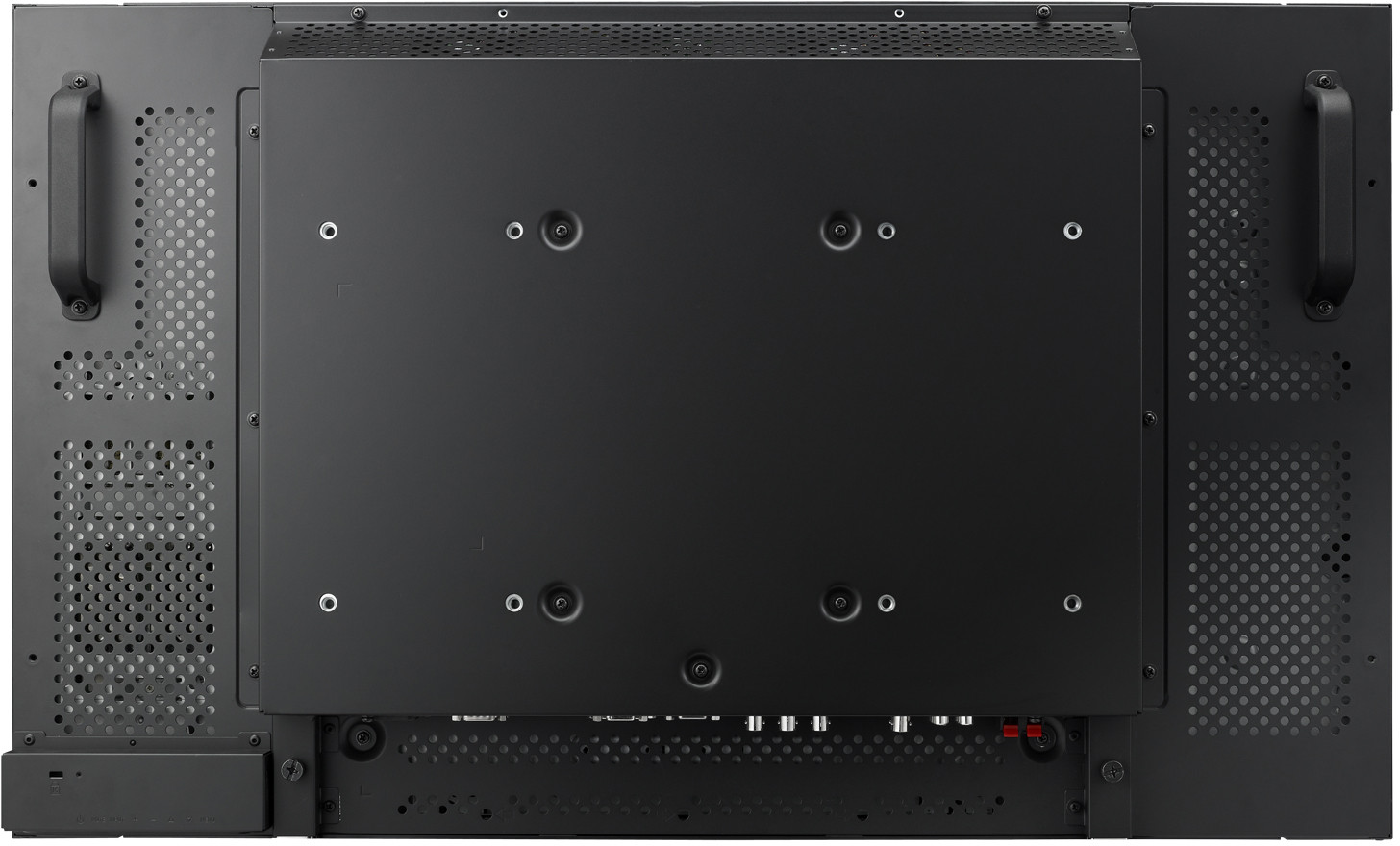

Glass : 5mm tempered glass - VESA MOUNT COMPLIANTVESA® 400mm x 200mm, 200mm x 200mm
- WEIGHTGross: 61.7 lb. / 28 kg
Net: 50.7 lb. / 23 kg - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (5–40ºC)
Temperature (portrait): 32–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. - AUDIO OUTSpeakers: Internal 10-watt (x2)
- OPSOpen Pluggable Specification slot (OPS ready)
