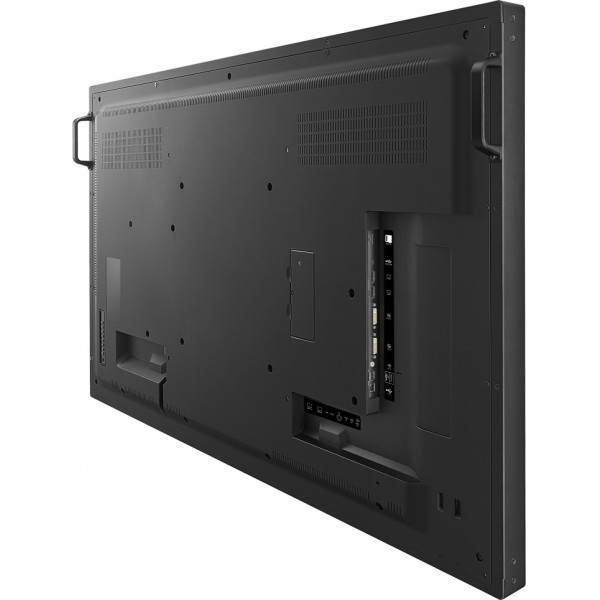

CDM5500T

55" 10-point Multi-touch Commercial Display

  • 24 hours a day 7 days a week operations
  • Built-in Quad Core Media Player with 16GB Storage
  • Embedded LAN and Wi-Fi
  • Internal Scheduler
  • Content Management Software
Sales Enquiry

OVERVIEW

Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this commercial display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.

10-point Multi-touch

With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

Built-in Quad Core Media Player with 16GB Storage

A powerful quad-core media player enables photo, signage, and video playback content, while 16GB of onboard memory provides ample storage for files and multimedia content. With the integration with Micro SD card slot, it supports up to 32GB external storage.

Embedded LAN, Wi-Fi, and Browser

An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated browser provides simple content delivery via connection to the web.

Internal Scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Content Management Software

Great for all venues and scenarios, the bundled content management software lets users transfer multimedia content onto the display from PCs and laptops. This embedded content management tool also lets you format, schedule, and save playback settings.

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

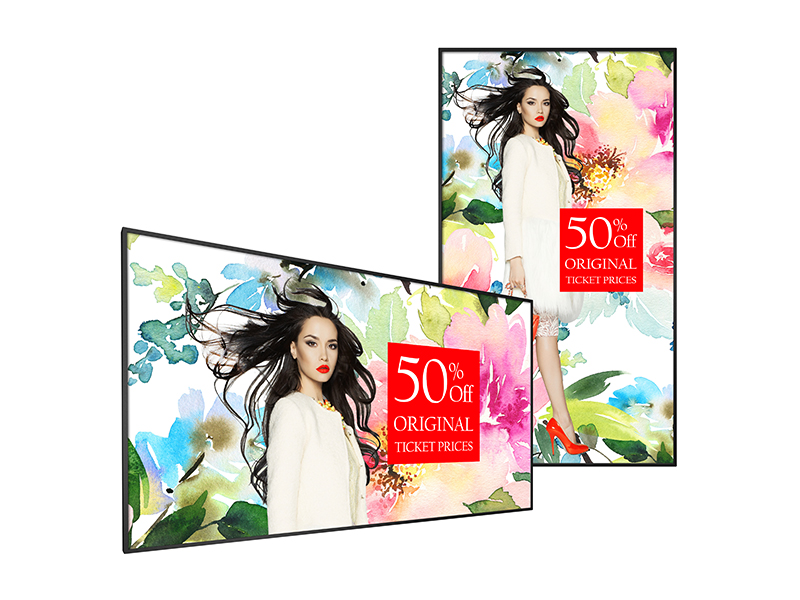

Portrait or Landscape Mountable

This display is VESA-mountable in either portrait or landscape orientation for display flexibility in a variety of settings.

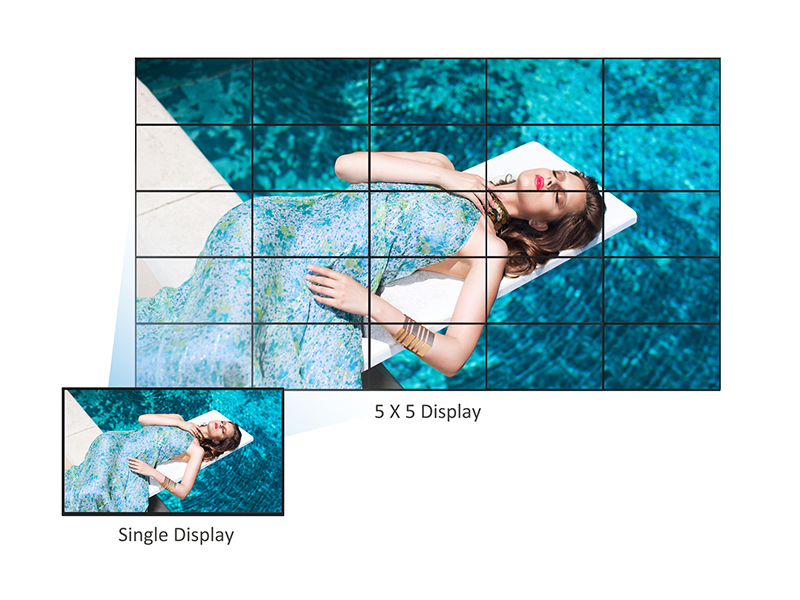

5 x 5 Tiling Support with DisplayPort or DVI

With integrated DisplayPort and DVI outputs, this display supports up to 5 x 5 tiling for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.
*Support up to 15 x 15 with external amplifiers

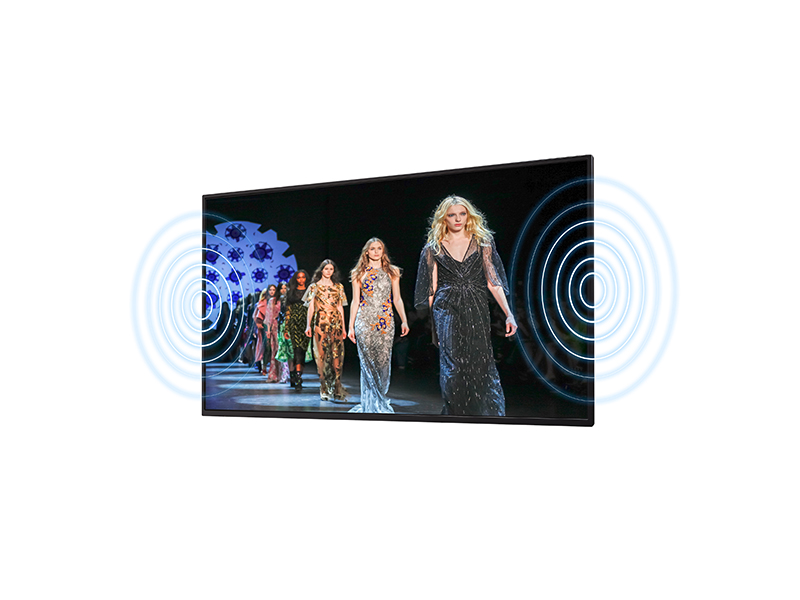

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

SPECIFICATIONS


  • SPECIFICATION
    Panel Size: 55'' (54.64” diagonal)
    Type/ Tech: IPS type
    Display Area (mm): 1209.6 (H) x 680.4 (V)
    Aspect Ratio: 16:09
    Resolution: 1920 x 1080
    Colors: 16.7 M colors
    Brightness: 450 nits (typ.)
    Contrast Ratio: 1100:1 (typ.)
    Response Time: 12 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: ELED
    Backlight Life: 50,000 Hours (typ.)
    Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
  • TOUCH
    Type/ Tech: Infrared
    Touch Point: 10 Points
  • INPUT
    HDMI: x 2 (HDMI1.4)
    DisplayPort: x 1
    DVI: x 1
    Audio: x 1
    RS232: x 1
    SD/SDHC: Micro SD card slot (Up to 32GB)
    IR: x 1
