OVERVIEW

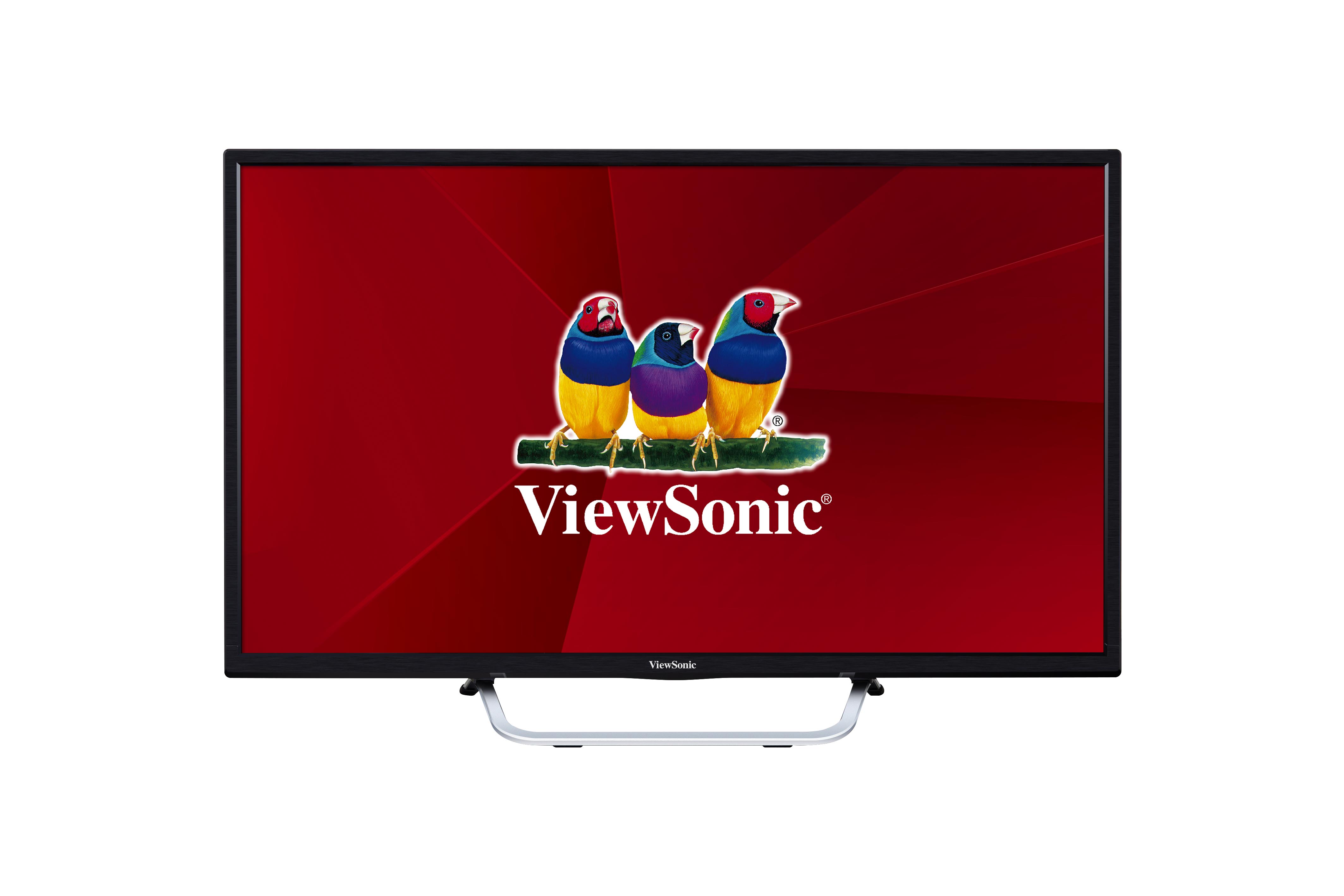

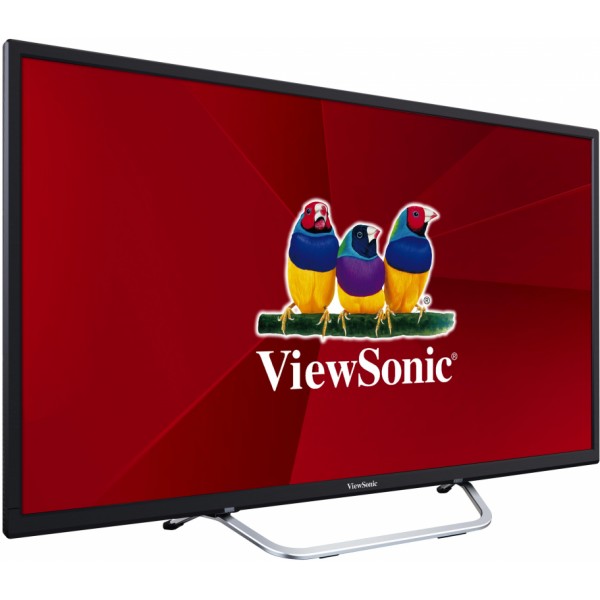

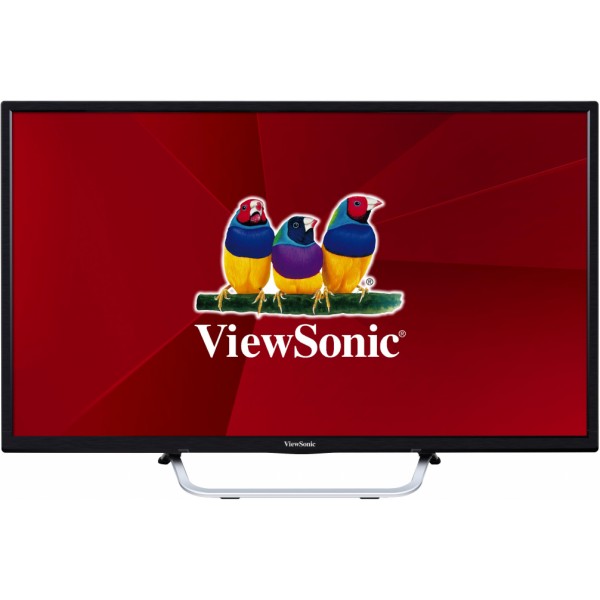

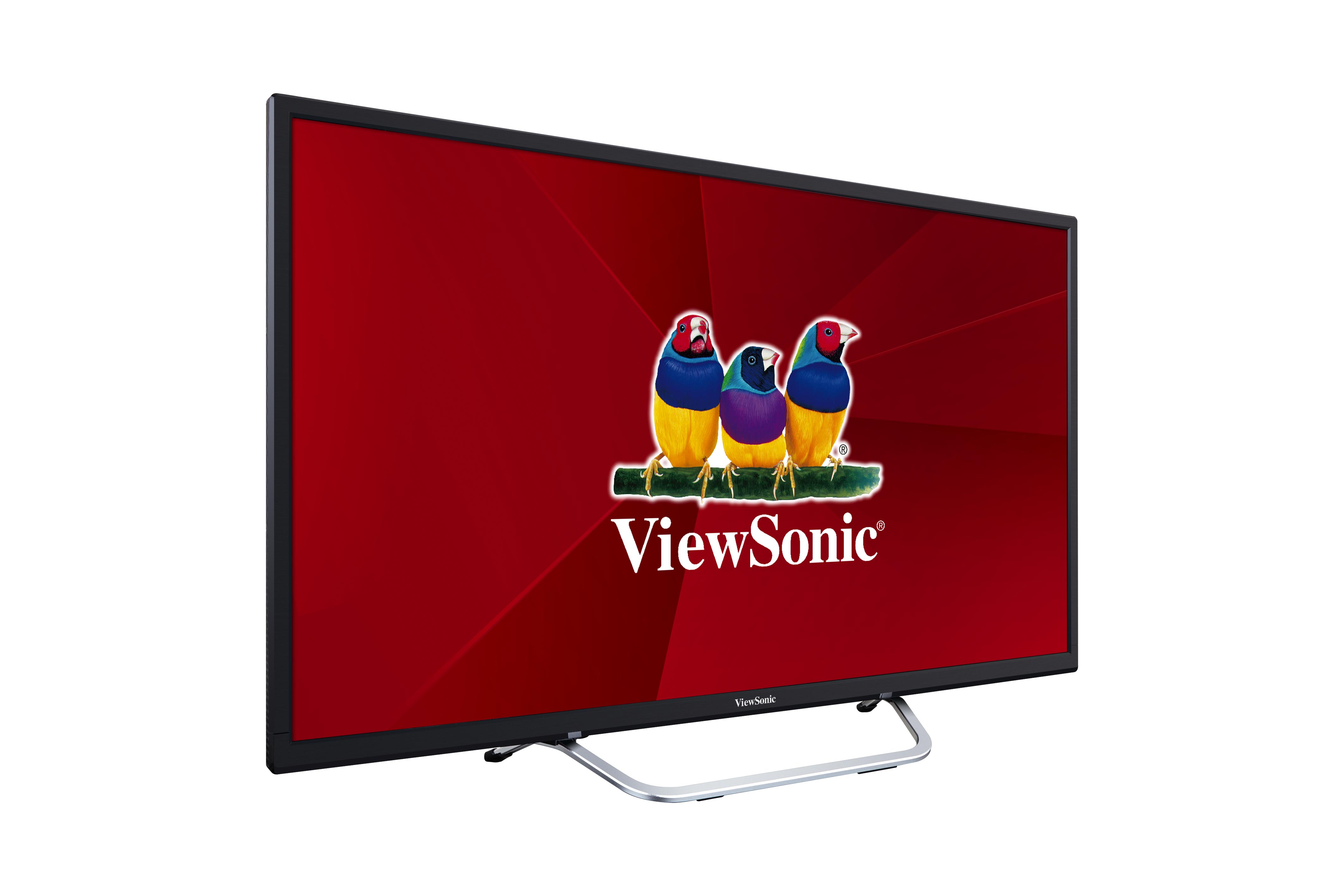

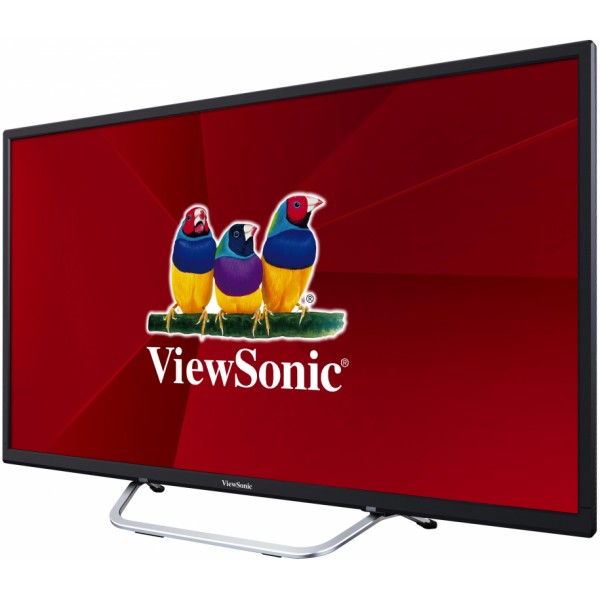

The ViewSonic CDE3203 is a great value, high performance 32’’ Full HD LED commercial display for hotel, restaurant and hospitality environments. In addition to versatile connectivity options, including HDMI, VGA, and SPDIF, the display comes with a simple and convenient USB multimedia playback functionality. With 1920x1080 resolution, 350-nit brightness, wide viewing angles and dual 10W stereo speakers, the slim-bezel CDE3203 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.

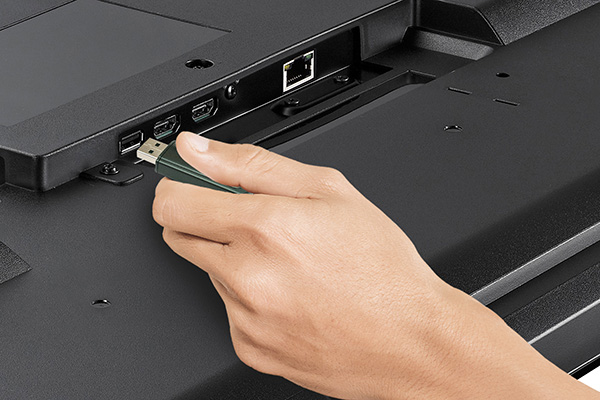

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

Free Bundled vController Software

Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

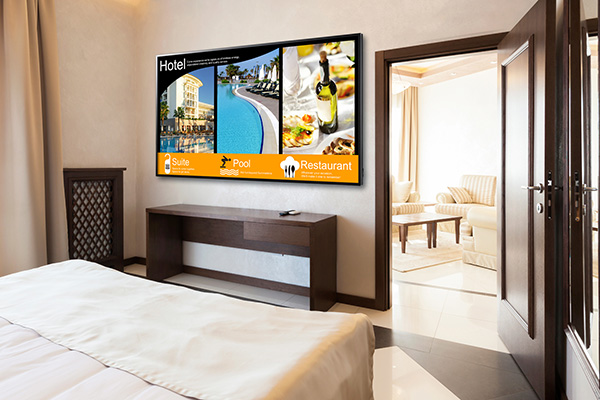

Hospitality Mode

This display is great for multi-screen setups in hotels, restaurants, sports bars, or retail outlets that require automated control and customizable presets. With a USB-programmable hospitality setting, each display will have the same customized channel default, audio level, front-panel lockout, and auto power-up settings.

Control Multiple Devices

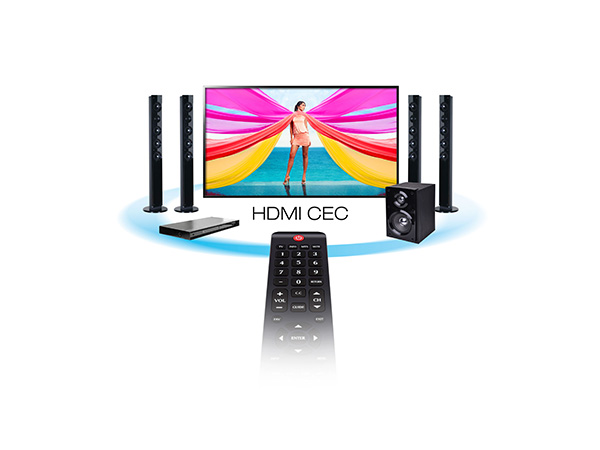

RS232 IR pass-through offers local control for set-top boxes, and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience. An additional speaker can be added via the SPDIF audio-out port for expanding sound to different locations in the room or venue, via cable.

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 31.5'' diagonal
    Type/ Tech: TFT LCD Module with WLED Backlight
    Display Area (mm): 698.4 (H) x 392.85 (V) mm
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 16.7 colors (8 bits)
    Brightness: 320 nits (typ.)
    Contrast Ratio: 1200:1 (Typ.) ; 900:1 ( min.)
    Response Time: 8 ms (typ.)
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: WLED
    Backlight Life: 30,000 Hours (typ.)
    Surface Treatment: Anti-Glare, 3H, Haze 2% (typ)

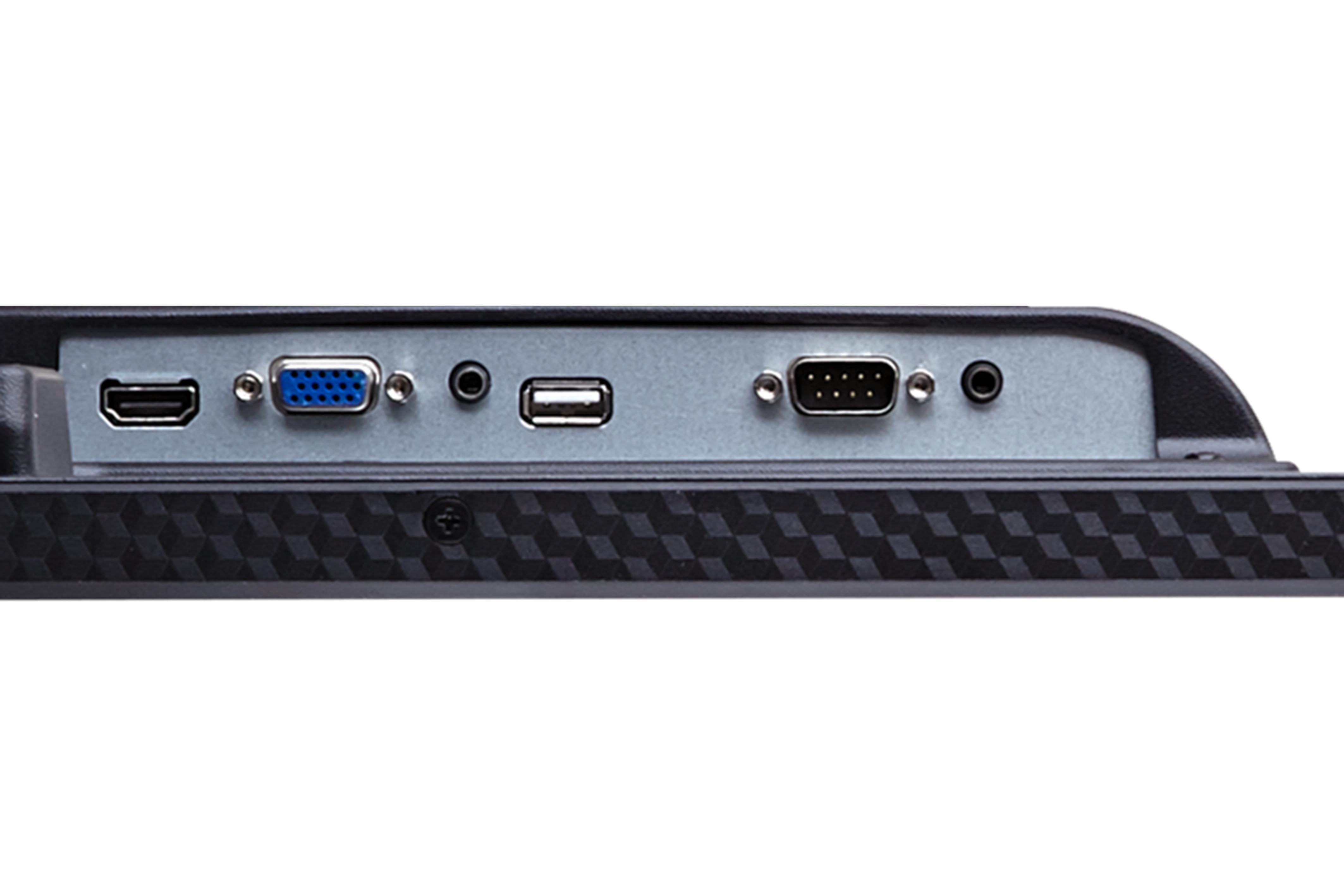

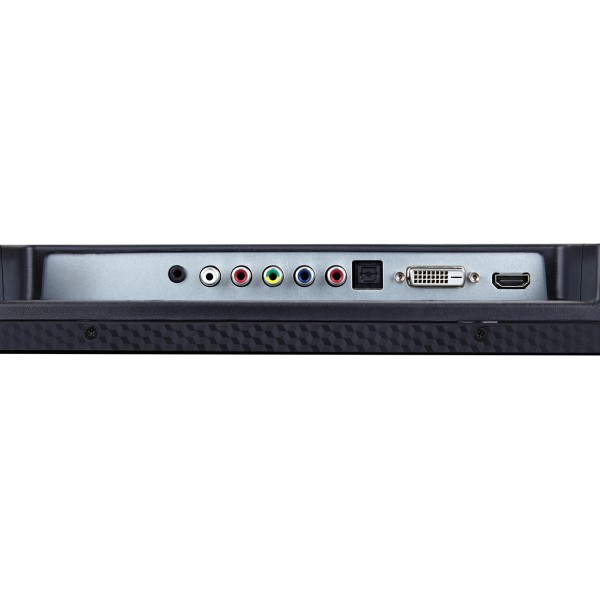

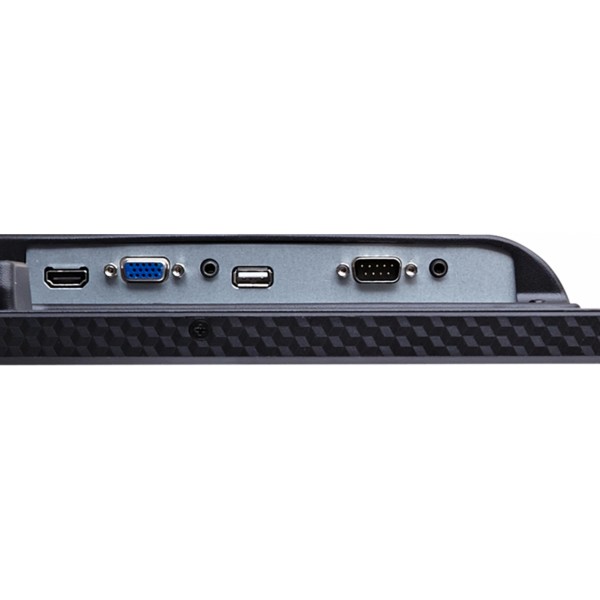

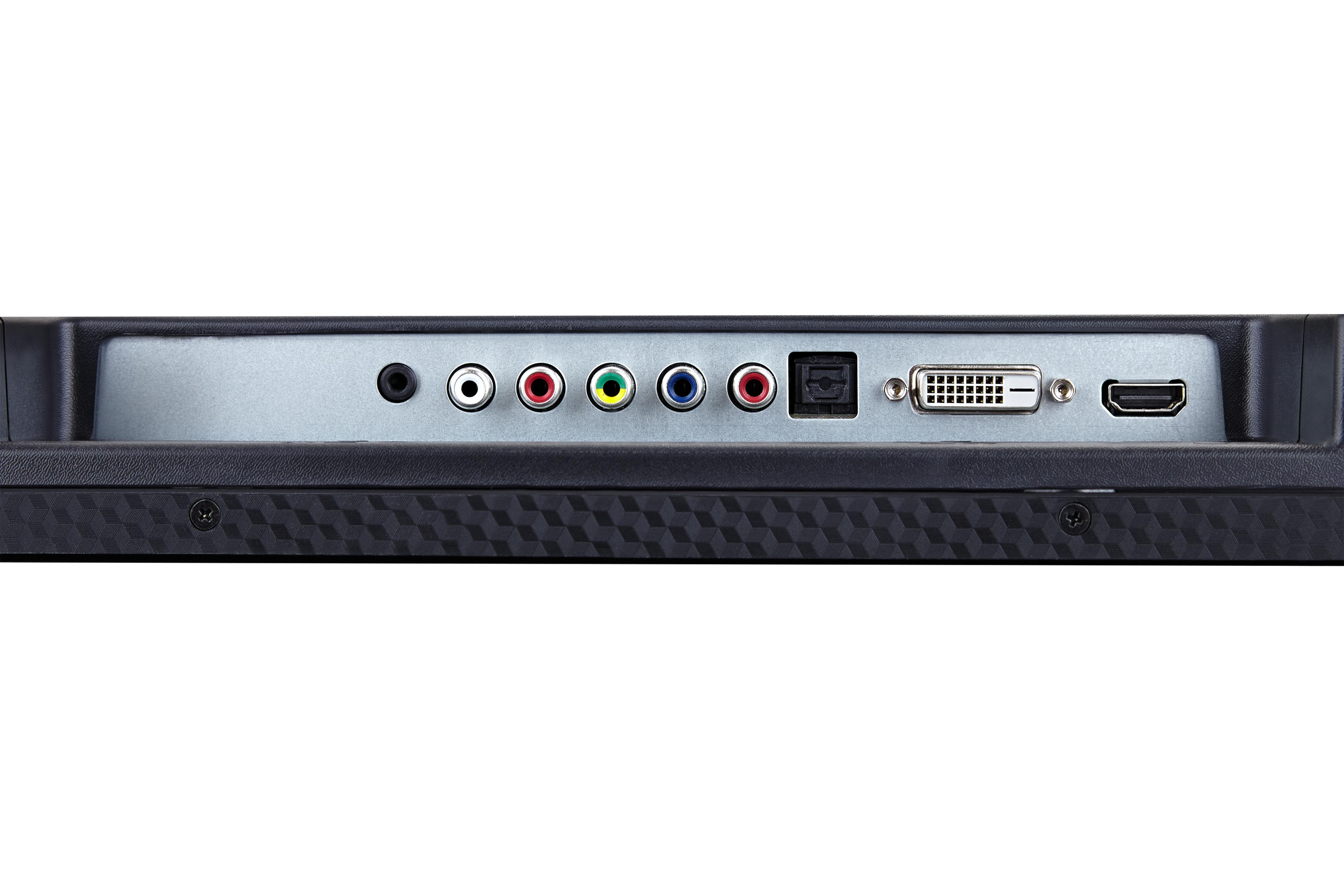

  • INPUT
    HDMI: x2 (HDMI 1 has MHL)
    RGB / VGA: x1
    DVI: x1
    Audio: x1 (L/R)
    CVBS/ Composite: x1 (shared with Y)
    YPbPr/ Component: x1
    RS232: x1
    IR Passthrough: x1
