OVERVIEW

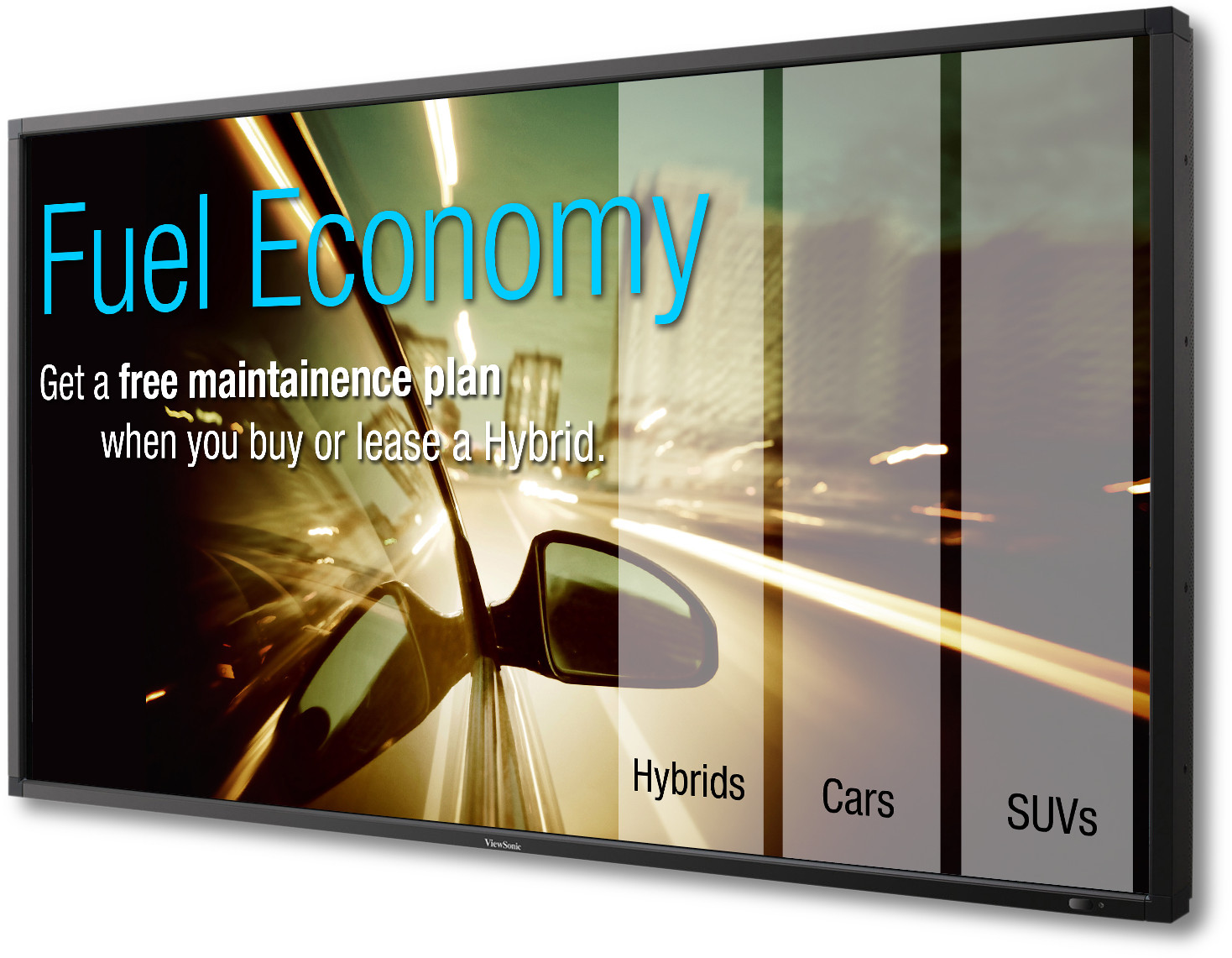

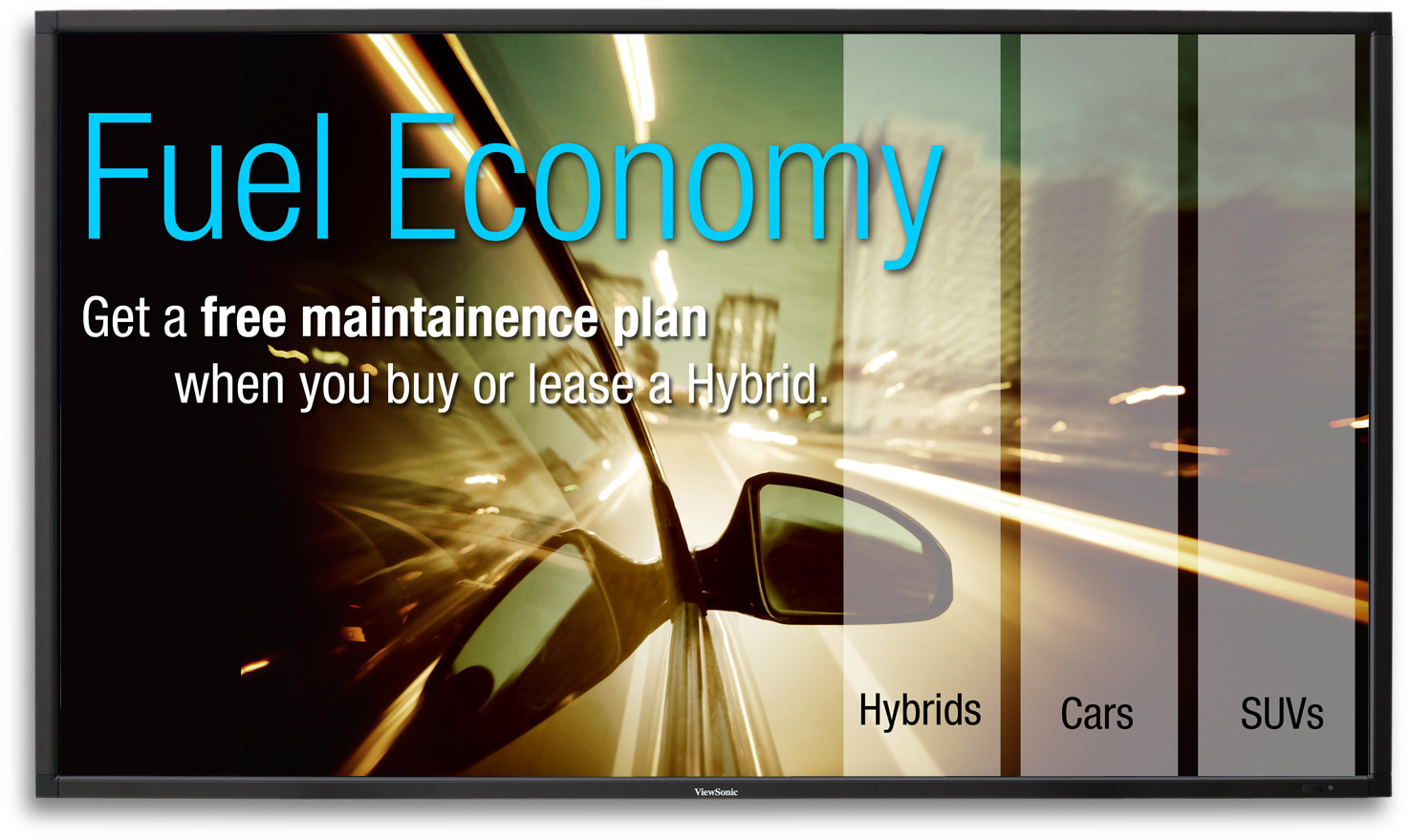

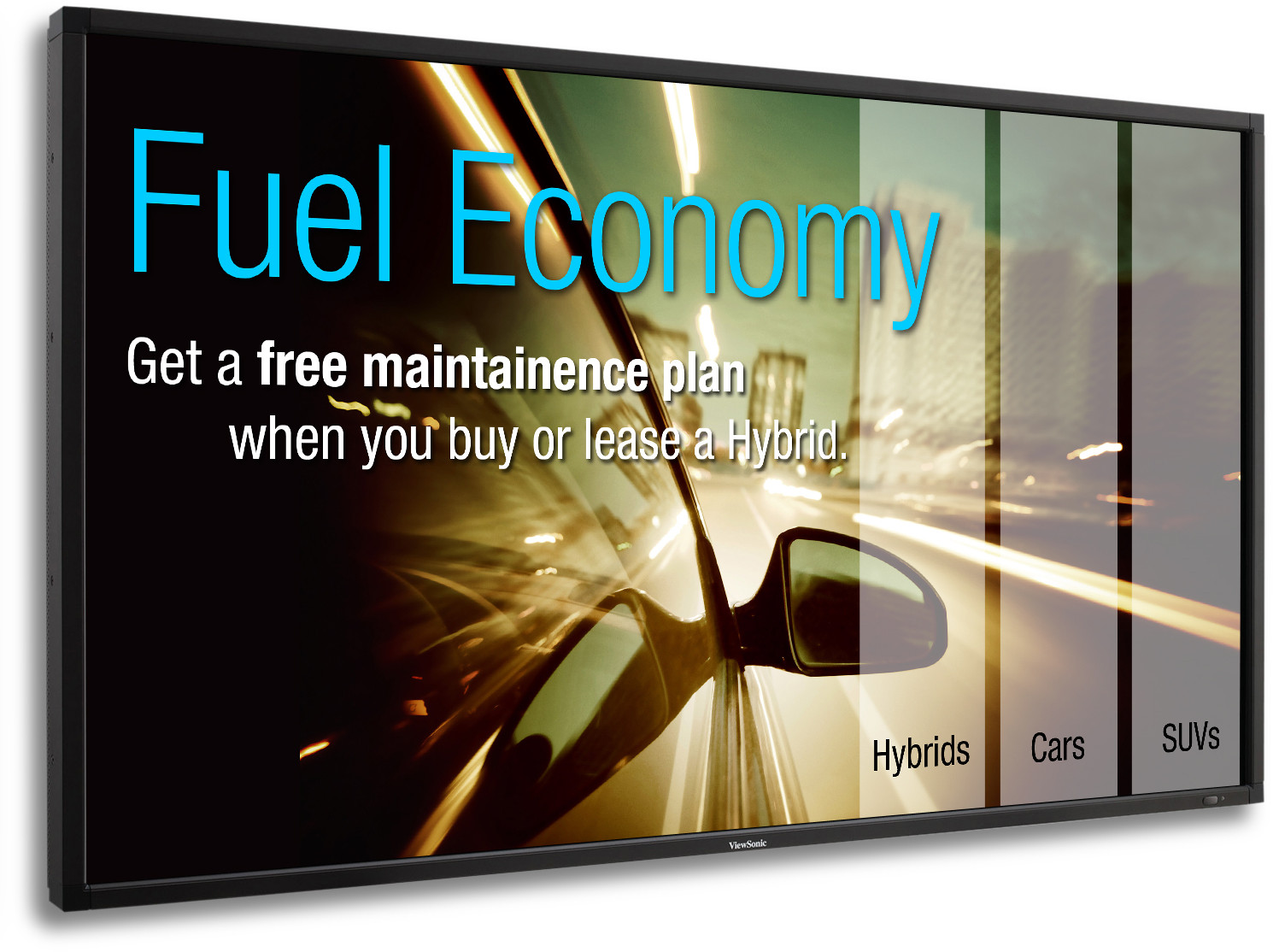

ViewSonic’s 42" CD4233 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.1080p 9ms panel for vibrant video and crisp images
16.3mm slim bezel
Display wall capability up to 5x5
RS-232 daisy-chain capable
VGA and DVI inputs/outputs for flexible connectivity and control
Remote and panel control lock out
7 day on/off scheduling
Screen saver/image sticking protection
Built-in 5Wx2 speaker with 7Wx2 output
Installation options include stand or VESA wall mount
SPECIFICATIONS
- COLORSBlack
- LCDType: 42" color TFT active matrix, wide LCD
Contrast Ratio: 1100:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 700 cd/m2 (typ)
Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Resolution: 1920x1080, 600mm dot pitch
Response Time: 9ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical Without Stand: 38.1" x 22.0" x 4.9" (967.6mm x559.6mm x 123.1mm)
Physical with stand (optional): 38.1" x 25.5" x 15.9" (967.6mm x 647.7mm x 403.9mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries,
User Guide CD - AUDIOAmplifier: 7-watt / 8 ohm

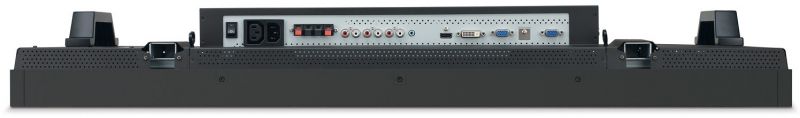

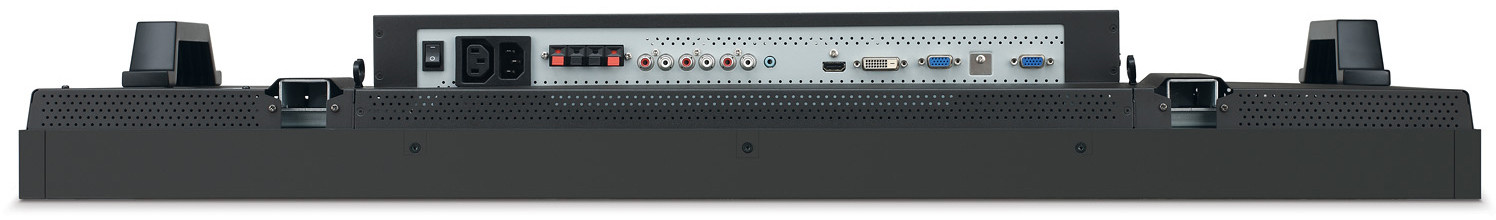

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232 - CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 15-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 280W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness,

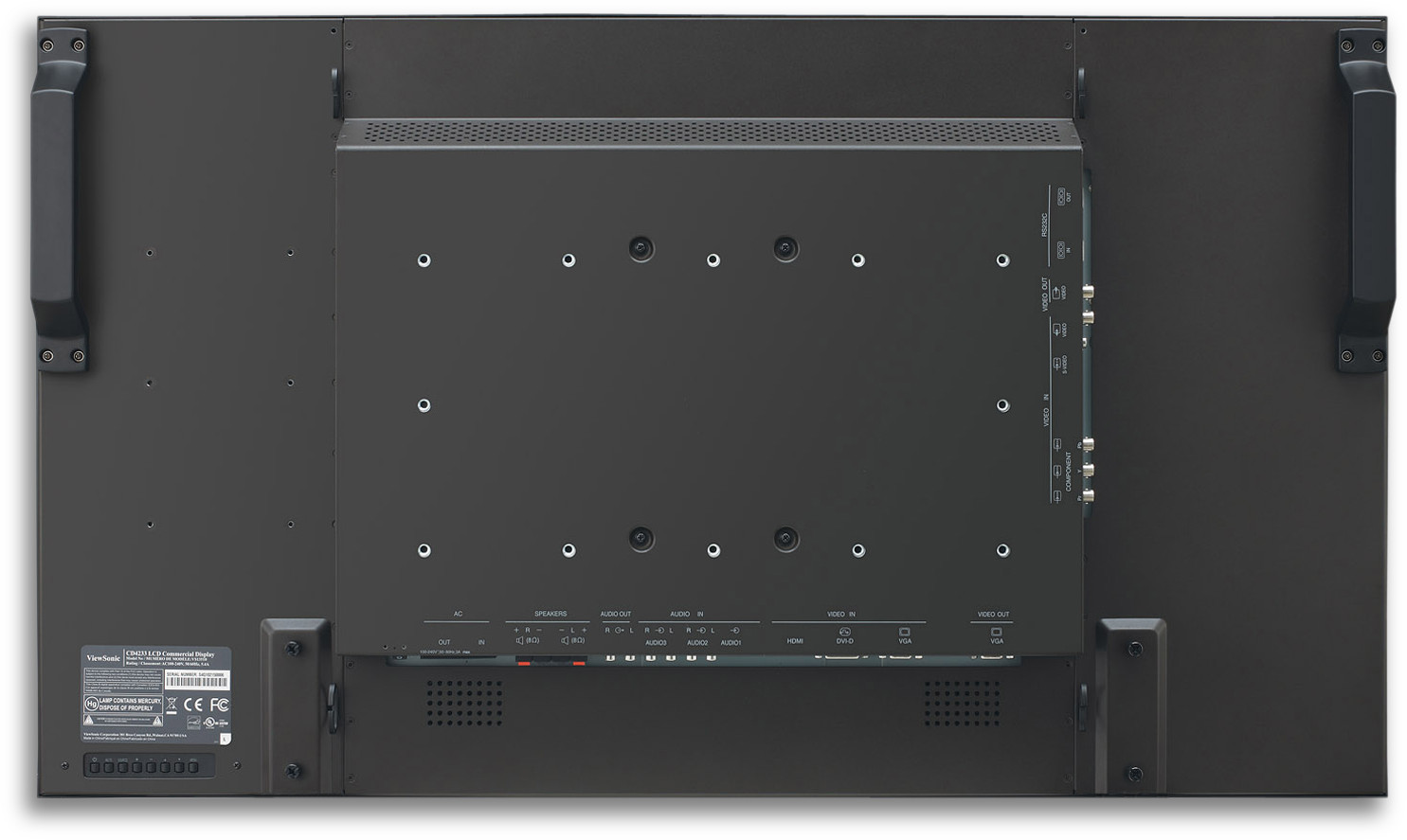

H. position, V. position - VESA MOUNT COMPLIANTVESA 100mm x 100mm, 12 holes
- WEIGHTGross without stand: 76.5 lb. (34.7 kg)
Net With Stand: 69.8 lb. (31.7 kg)
Net Without Stand: 65.0 lb. (29.5 kg) - OPERATING CONDITIONSHumidity: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - INPUT SIGNALVideo: 480i, 480p, 720p, 1080i, 1080p
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
