Key Features

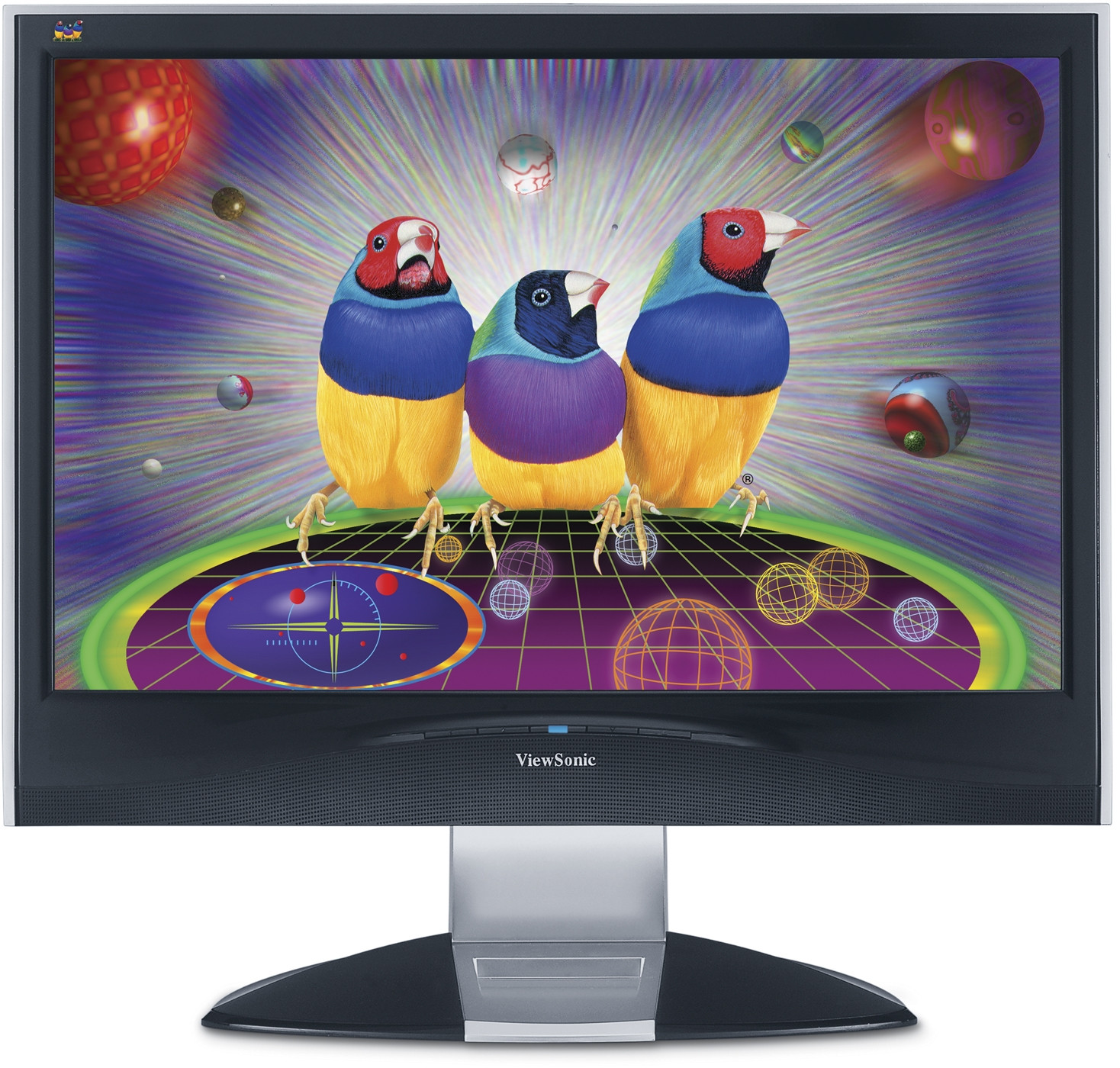

VX2435wm
Product Description
ViewSonic’s VX2435wm widescreen LCD transforms your desktop into an entertainment centre. The 24” widescreen display with premium high-definition resolution lets you play movies and HD games in their native format and at their brilliant best. The ultra-high 1000:1 contrast ratio, high brightness and fast response time levels produce bright, sharp, detailed images that are impossible to better. Connect your PC, DVD player, STB or gaming console through the vast array of connection options including Digital HDMI, analogue, component and more. Enjoy multimedia performance with integrated speakers. The VX2435wm is the perfect display for the serious professional gamer or digital entertainment enthusiast who wants great pictures in big-screen brilliance.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 24” Wide Premium MVA colour TFT active matrix WUXGA LCD
    Rapport de contraste: 1000:1 (typ.)
    Angles de vue: 176° horizontal, 176° vertical (at 10:1)

    176° horizontal, 176° vertical (at 5:1)
    Luminosité: 500cd/m²
    Zone d'affichage: 51.7cm horizontal x 32.3cm vertical, 61cm diagonal
    Résolution optimale: 1920 x 1200@60Hz
    Temps de réponse: 8ms (grey-to-grey avg.), 20ms (off-on-off typ.)
    Source lumière: Long life, 50000 hrs. (typ.)
    Rapport largeur/hauteur: 16:10
    Surface panneau: Anti-glare
    Pas de pixel: 0.269mm
    Prise en charge des couleurs: 16.7M colours (8-bit)
    Horloge pixel: 165MHz
  • COMPATIBILITÉ
    Ordinateur: VGA up to 1920 x 1200 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1920 x 1200 non-interlaced
  • DIMENSIONS (MM)
    Physique avec support: 572 x 510 x 244
    Physique sans support: 572 x 418 x 92
    Emballage (LxHxP): 644 x 598 x 182
  • NORMES
    CE, CB, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, Energy Star, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
  • CONTENU DE L'EMBALLAGE
    LCD Monitor, power cable, 15-pin VGA video cable, HDMI to DVI cable adapter, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • GARANTIE
    Three-year limited warranty on LCD, parts and labor.
  • AUDIO
    Haut-parleurs: 2 x 3 watt integrated stereo speakers
  • CONNECTEURS
    Analogique: 1 x 15-pin mini D-Sub (detachable cable)
    Numérique: 1 x HDMI (HDCP enabled) (detachable cable)
    Alimentation: 3-pin AC plug (CEE22)
    Entrée vidéo composite: 1 x RCA (CVBS)
    Entrée vidéo composite: 3 x RCA (YPbPr/YCbCr)
    Audio: 1 x 3.5mm mini stereo jack
    Entrée S-vidéo: 1 x 4-pin mini DIN jack (Y/C)
  • ALIMENTATION
    Tension: AC 100– 240V, 50/60Hz (auto switch), internal power supply
    Consommation: 90 watt (typ.), <1 watt in power save mode
  • COMMANDES
    De base: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, HDMI, component, S-video, composite), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • CONDITIONS D'EXPLOITATION
    Température: 0°C–40°C
    Humidité: 10%–90% (non-condensation)
  • POIDS
    Net avec support: 8.0kg
    Net sans support: 6.7kg
    Brut: 9.8kg
  • ENTRéE VIDéO
    Fréquence: Fh: 24~82kHz, Fv: 50~85Hz
    Synchronisation: H/V separate (TTL), composite, sync on green
    Analogique: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
    Numérique: HDMI (HDCP enabled) (TMDS, 100 ohm)
  • GESTION ALIMENTATION
    Meets MPRII and ENERGY STAR® standards
  • SÉCURITÉ
    Kensington® security port
  • MONTAGE MURAL
    VESA® FDMI 100mm x 100mm
  • ERGONOMIE
    Inclinaison: Down 5°, Up 20°
