LCD Display

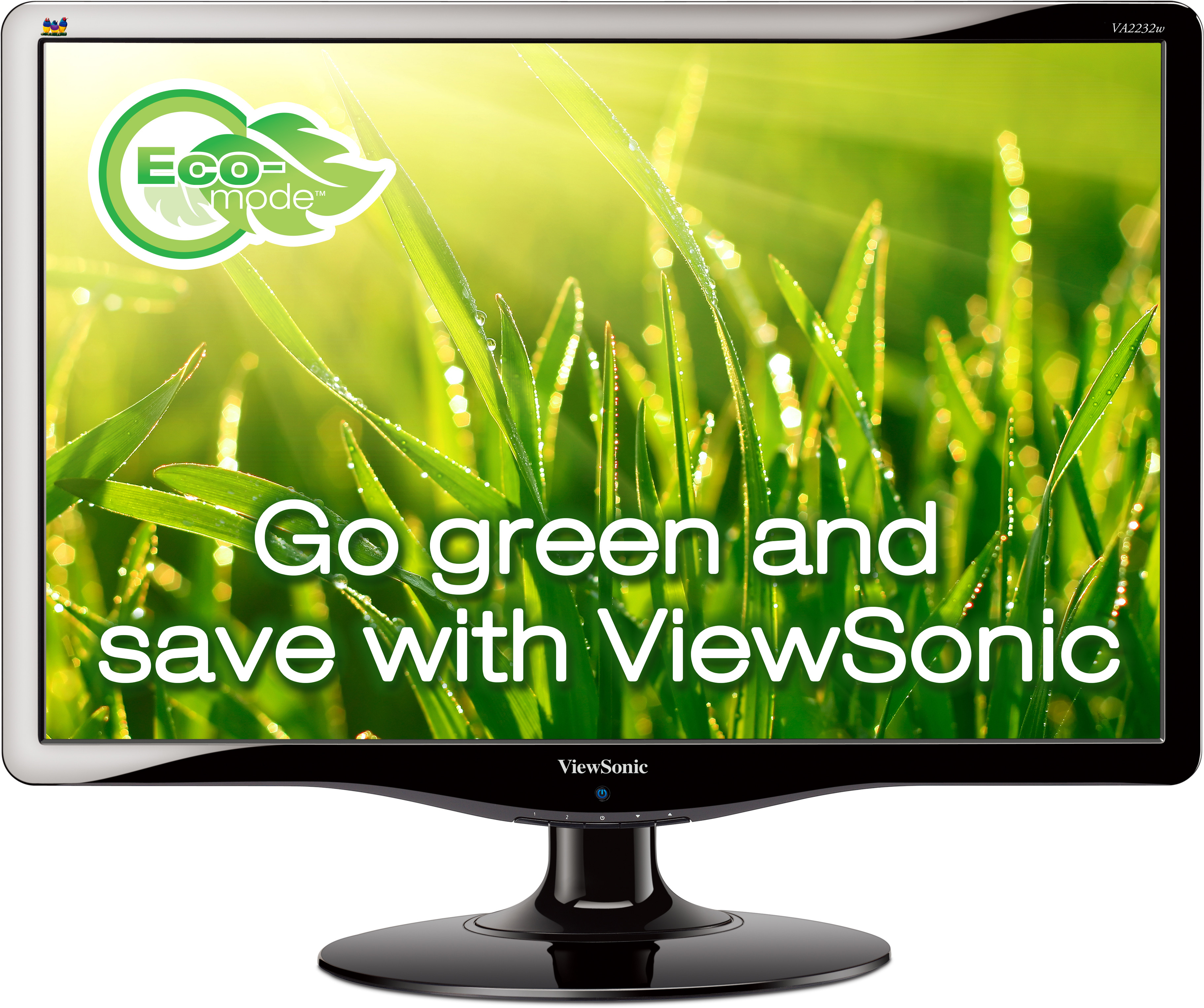

VA2232wa
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Rapport de contraste: 1,000:1 Angles de vue: 170° (H), 160° (V) Résolution optimale: 1680 × 1050 native resolution Temps de réponse: 5ms Typical Source lumière: 50,000 hrs minimum Surface panneau: Anti-Glare, Hard coating(3H Pas de pixel: 0.282 × 0.282 (mm) Prise en charge des couleurs: 16.7 M Taille: 56cm/22" Wide Colour a-Si TFT Active Matrix LCD 16:10 aspect ratio Luminosité: 300 Typical Rapport de contraste dynamique: 100,000:1 -
COMPATIBILITÉ
Ordinateur: VGA up to 1680 × 1050 Non Interlaced Mac®: Mac OS up to 1680 × 1050 -
DIMENSIONS (MM)
Physique avec support: 510 × 416.2 × 195.4 (mm) / 20.1 × 16.4 × 7.7 (in) -
NORMES
CB, WEEE, RoHS, REACH SVHC List, CE, Nemko ERGO, GOST-R+Hygienic,
UkrSEPRO BSMI, PSB, C-TICK, KC, SASO -
ENTRéE
Synchronisation: Separate Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p) Fréquence: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA) -
CONNECTEURS
Analogique: 1×15 pin mini D-sub Power: Built-in power Adapter, 3-Pin plug -
ALIMENTATION
Tension: AC 100-240V (Universal); 50/60Hz(Switch) Consommation: 38W Typical / 45W Maximum Mode Economie: ≦0.5W -
COMMANDES
De base: [1], [2], Power, Down[▼], Up[▲] OSD: Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K,
6500K, 5000K, User Color [R, G, B]
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune,
Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu,
Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background,
Auto Power Off, Memory Recall -
MONTAGE MURAL
100mm × 100mm -
ERGONOMICS
20~-5 degrees -
POIDS
Net: 4.7 kg / 10.36 lb -
CONDITIONS D'EXPLOITATION
Humidité: 5 - 90 (%) Température: 0 - 40 (°C) / 32 - 104 (°F)
