OVERVIEW

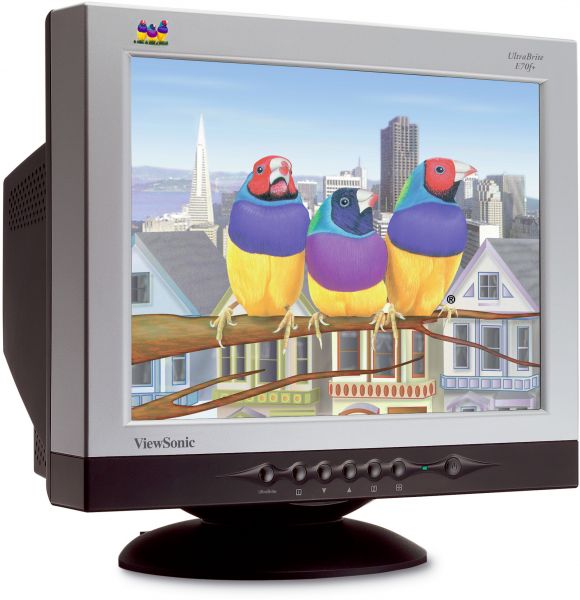

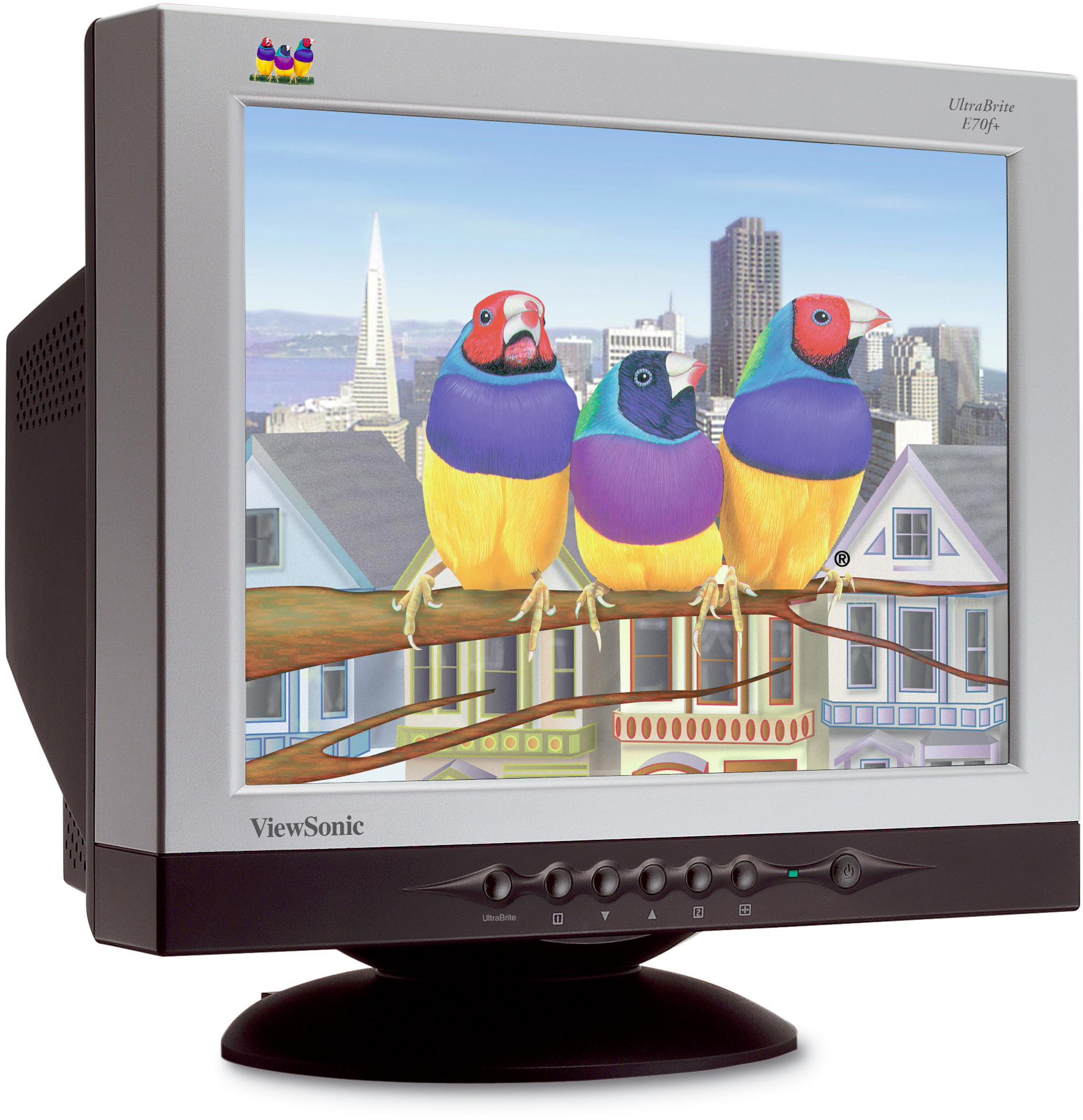

ViewSonic's ultra-stylish black-on-silver E70fSB combines upscale style and crystal clear image performance for exceptional value. The PerfectFlat screen ensures you'll view edge-to-edge, distortion-free images with minimised reflection and glare. Its ultrafine 0.21mm horizontal dot pitch and a flicker-free 1024 x 768 resolution delivers precise picture definition when viewing everyday applications. Adjust your screen with the OnView® controls and secure them with the OSD lock function to ensure optimum screen performance. The E70fSB is ideal for small and home offices, school and internet users.
Affordable performance for work and home
SPECIFICATIONS
- COMPATIBILITÉOrdinateur: PC and compatible from VGA up to 1280 x 1024
Mac®: Power Mac™ up to 1024 x 768 (max. 75Hz) - Dimensions (mm)Physique avec support: 395 x 395 x 419
Emballage (LxHxP): 455 x 416 x 495 - NORMESTCO'03, TUV/GS, ISO9241-3, ISO9241-7, ISO9241-8, CE, CB, GOST-R, UL/cUL , DHHS, FCC-B, ICES-003, MPR II, NOM, PSB, BSMI, WEEE, RoHS
- Signal d'entréeFréquence: Fh: 30 - 70kHz, Fv: 50 - 160Hz
Vidéo: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL) - CONNECTEURSAlimentation: 3-pin AC plug (CEE22)
Signal: 15-pin mini D-Sub (attached cable) - AlimentationTension: AC 90-132/198- 240V, 50/60Hz (auto switch)
Consommation: <68 wattts (typ.), active off <2 watts - COMMANDESDe base: Power on/off, menu [1], up, down, select [2], auto-adjust
OSD: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction, degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language (8 options), OSD lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 0°C to 40°C
Humidité: 5% to 95% (no condensation) - PoidsPoids: 13.9kg
Brut: 16.4kg - AutresDDC1, DDC2B
- Entrée vidéoBande passante: 120MHz
- GESTION ALIMENTATIONMeets TCO'03 standard
- CRTType: 43cm / 17" (16.0" viewable) CRT, 90° deflection, PerfectFlat
Pas de masque: 0.20mm horizontal x 0.13mm vertical, 0.25mm diagonal
Phosphor: RGB medium/short persistence
Surface vitrée: Tint: (TM = 57%), anti-reflection, anti-static, anti-glare - MODES PROGRAMMABLESPar défaut: 12
Utilisateur: 10 - Zone d'affichageRéglage par défaut: 310mm (H) x 230mm (V) (typ)
Balayage maximum: 325mm (H) x 244mm (V) (depending on signal timing used)
