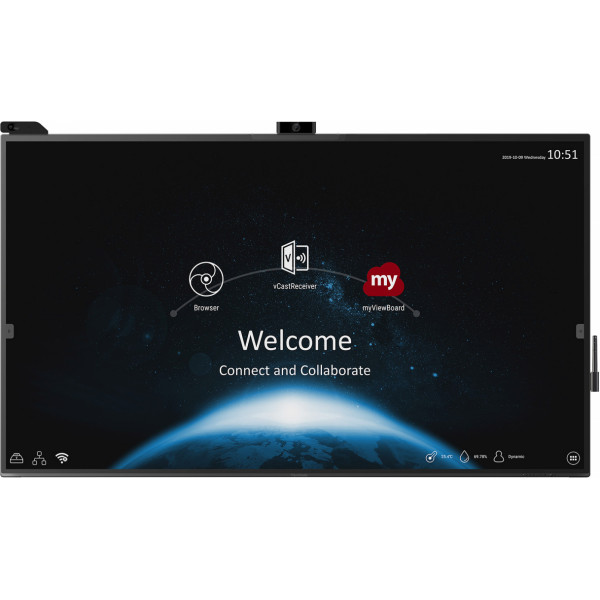

IFP8670

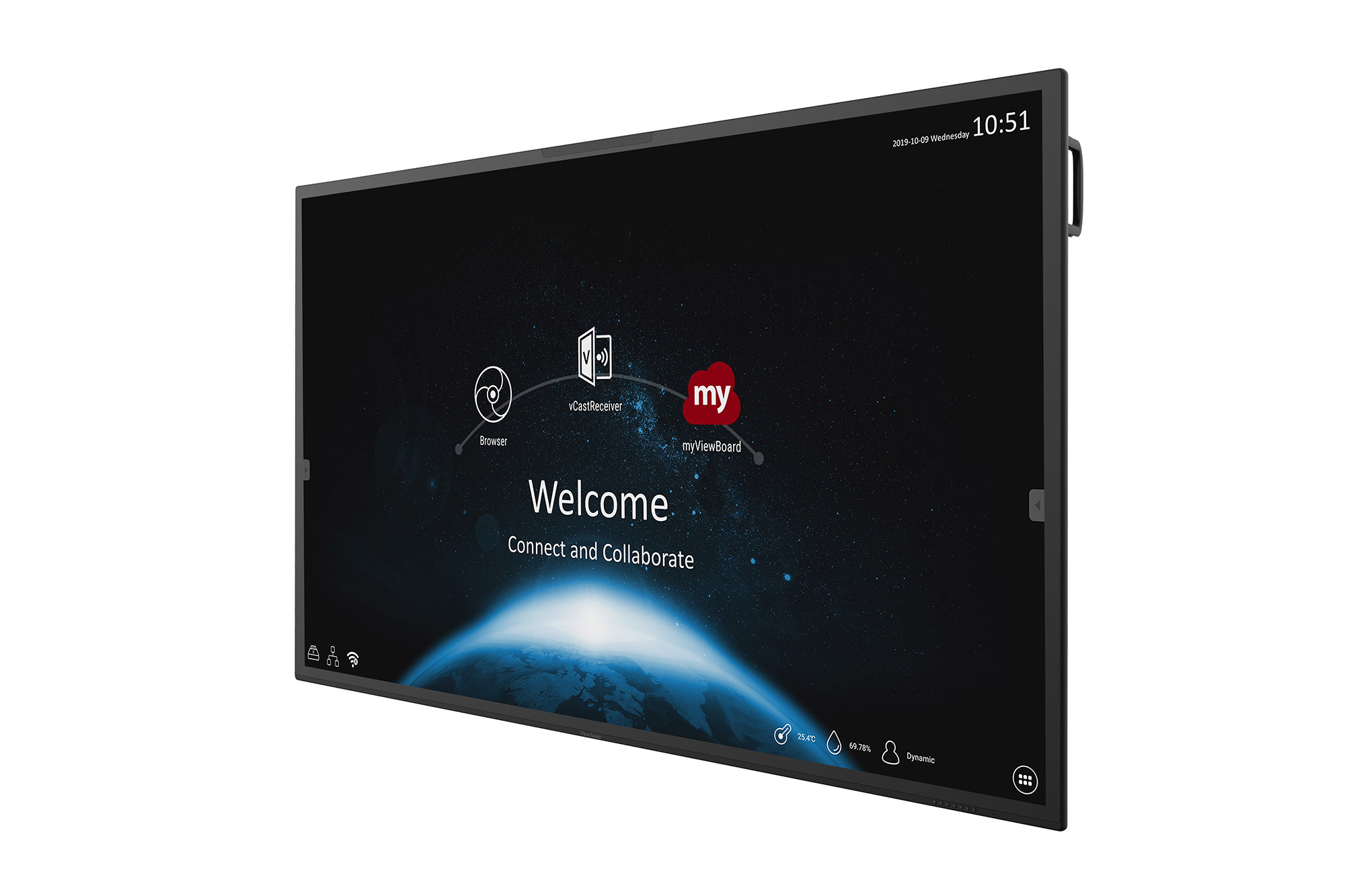

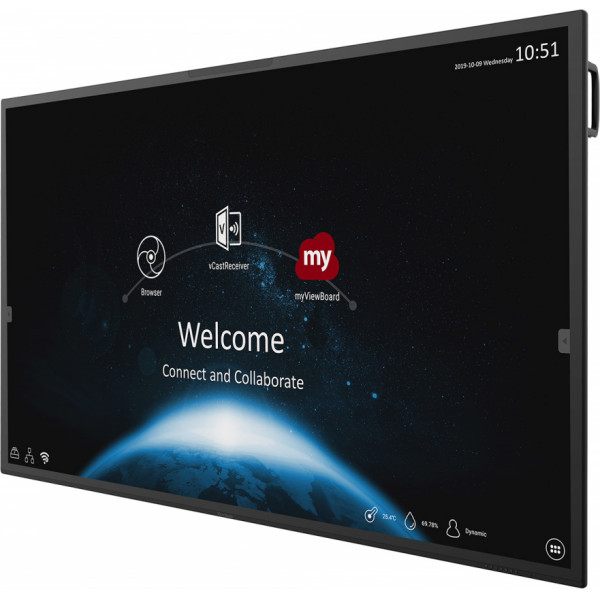

ViewBoard® 86'' 4K Flagship Interactive Display
- Advanced Projected Capacitive (PCAP) touch technology

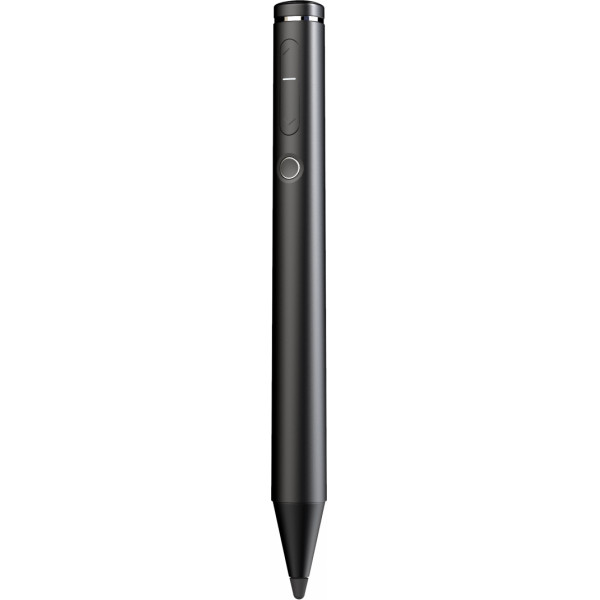

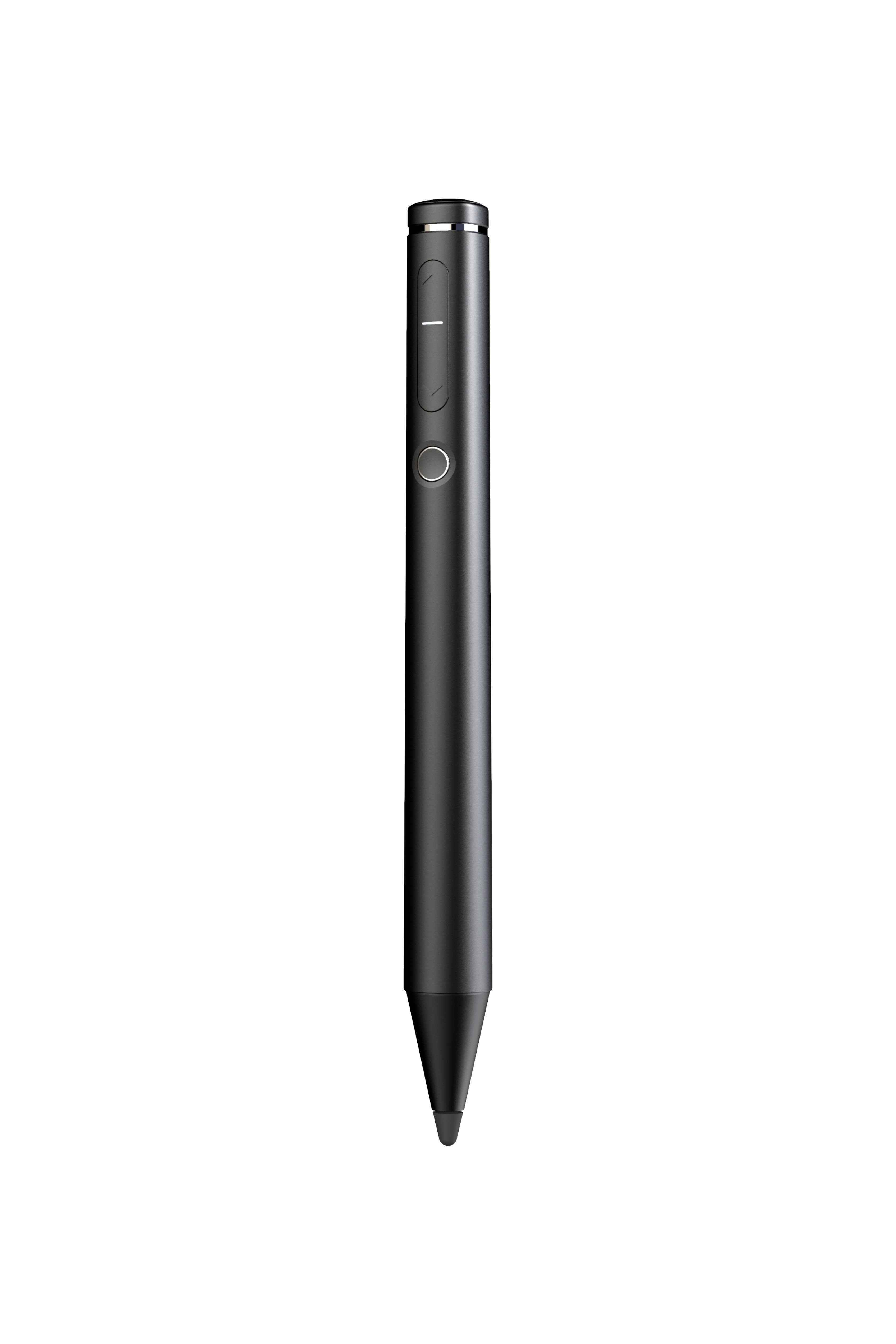

- Write Naturally and Accurately with Smart Active Pen

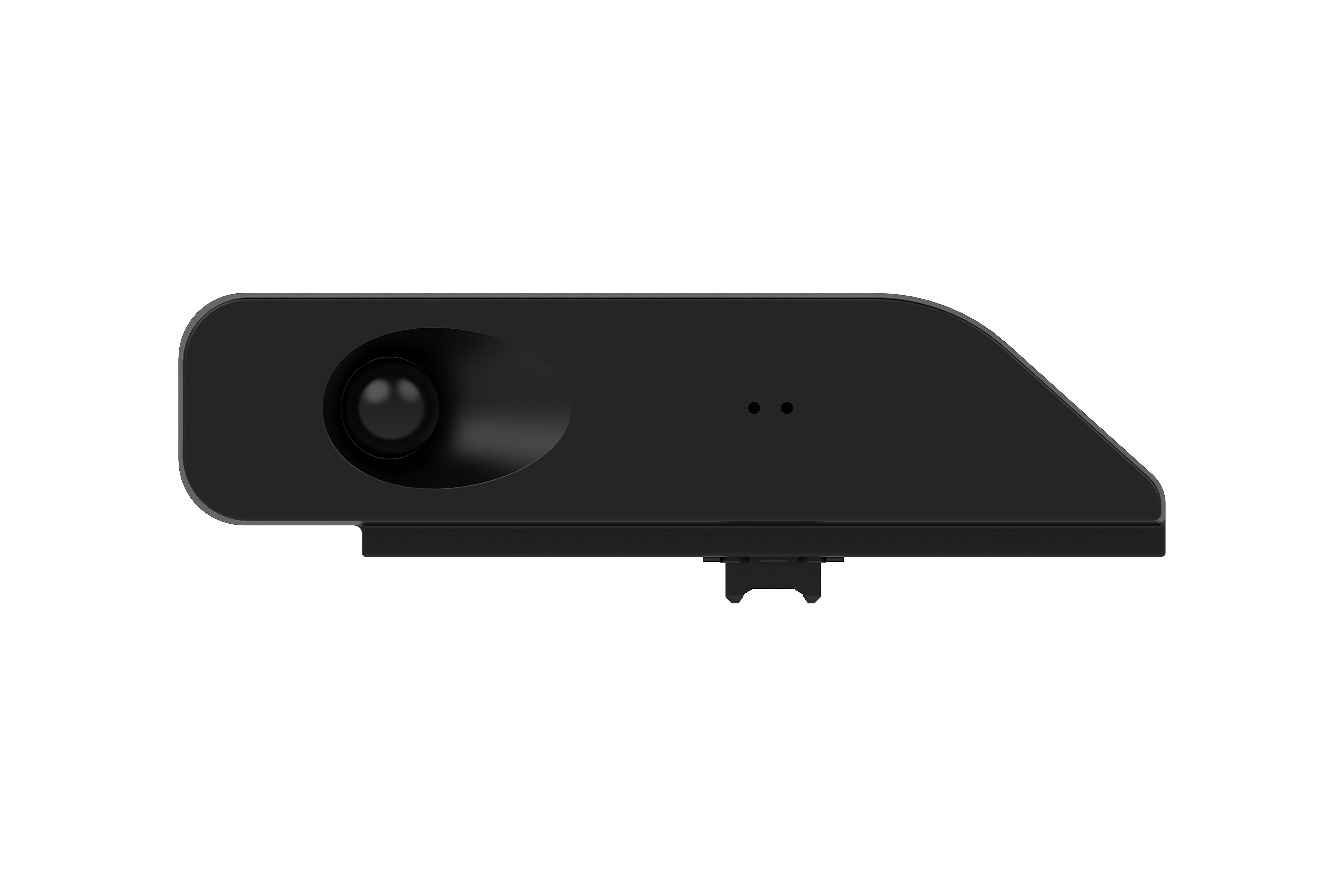

- Azure certified IoT sensor hub for workplace management

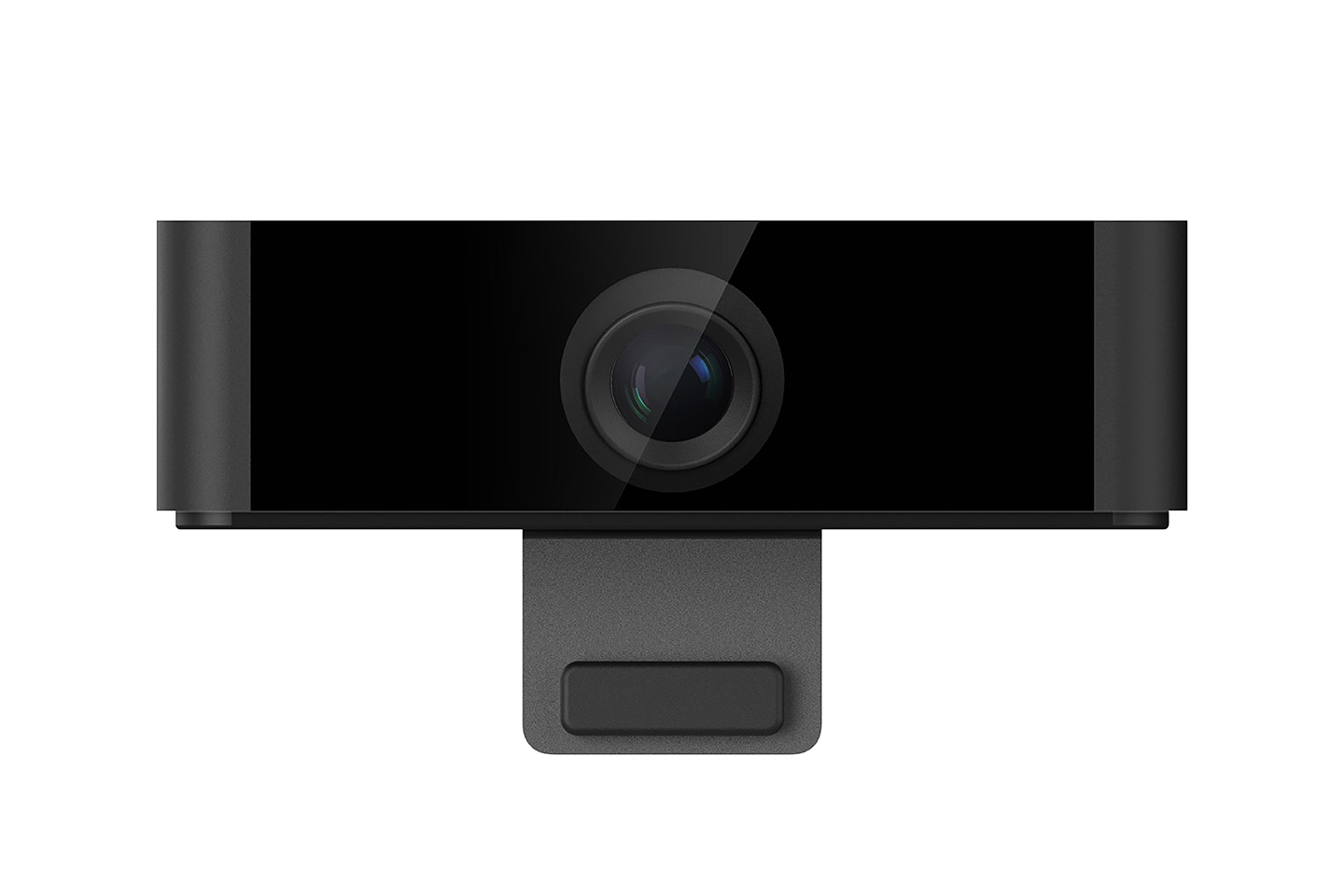

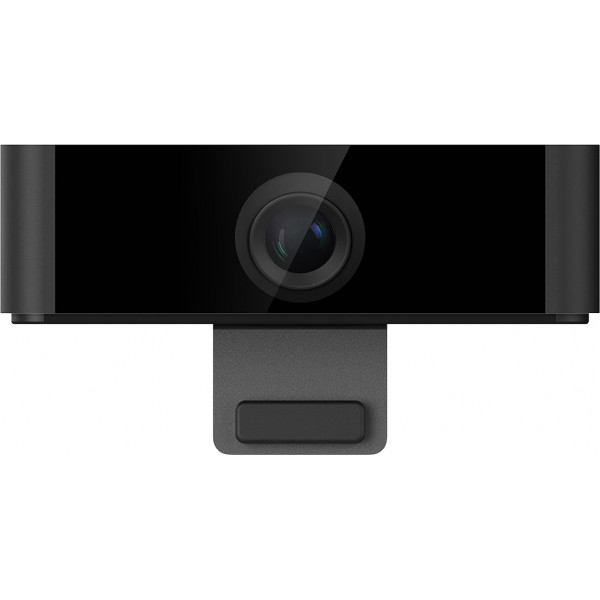

- Skype for Business certified FHD camera
- Single cable content sharing through USB Type C
OVERVIEW
The ViewBoard® IFP70, our flagship interactive display, is tailored for visual collaboration in a digital workplace. Adopting advanced Projected Capacitive (PCAP) touch technology, it has a frameless, flat touchscreen to deliver precise responsiveness and the most accurate touch experience. Together with the smart pen, it enables you to write naturally and accurately like a real pen on a 4K Ultra HD resolution screen, streamlining visual collaboration. The ViewBoard® IFP70 series has quick, easy connectivity for content sharing via USB-C cable or wireless ViewBoard® Cast. Furthermore, it has a high quality video conferencing solution for the remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration. In addition, the ViewBoard® IFP70 series gives you extra security to keep your information safe, private and compliant. It has built-in, AWS-powered myViewBoard™ whiteboarding software and an optional Intel® vPro™ slot-in PC. The ViewBoard® IFP70 series is also equipped with IoT sensors, which meet Windows Collaboration Display standards. It can work with Microsoft Azure Digital Twins to monitor and optimise your smart meeting rooms and collaboration spaces.SPECIFICATIONS
- DisplayPanel Size: 86"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-Glare/anti finger print
Bezel: Slim
Orientation: Landscape - PlatformProcessor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB - TouchType/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x1 (3840x2160 @60Hz)
DisplayPort: X1 1.4
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTHDMI: X1(4K2K@60Hz)
Audio: x1 (Earphone out)
SPDIF: 1(optical) - LANRJ45: x1
- USBType A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W - SPEAKERSSPEAKERS: 10W x 2 + 15W x 1 subwoofer
- Camera plate on top for screw-in webcam installationCamera plate on top for screw-in webcam installation: Yes
- COMPATIBILITYCVBS: 480i
HDMI: 3840x2160 - Embedded OSEmbedded OS: Android 8
- USB SUPPORTED FILE FORMATUSB SUPPORTED FILE FORMAT: Picture -
BMP, JEPG, PNG
Video -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKV
Audio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3 - Bundle SoftwareBasic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
Zoom: Yes
ViewSonic Launcher: Embedded - Special FeaturesAll-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Yes
Simple LAN sharing between IFP and slot-in device: Yes - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: On:176.6W(Typ.)

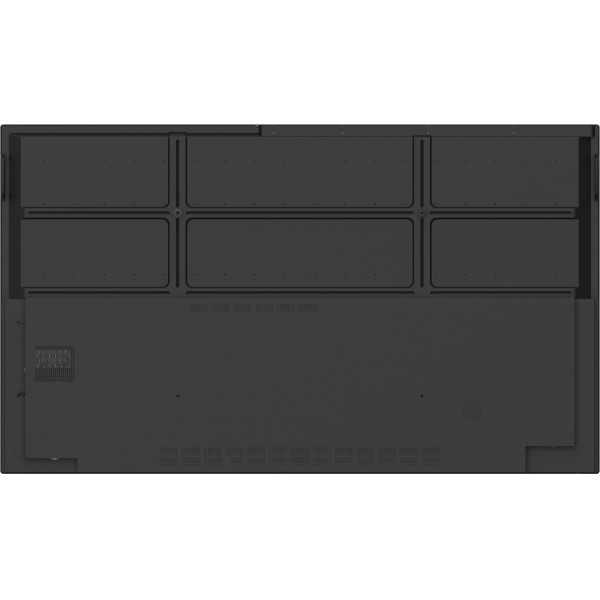

Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 800 x 600
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1962X1146X84(mm)
77.24x45.11x3.3(inch)
Packaging (inch / mm): 2123X1345X280(mm)
83.8X52.9X11(inch) - WEIGHTNet (lb / kg): 160.93/73Kg
Gross (lb / kg): 209.43/95Kg - REGULATIONSREGULATIONS: FCC, cTUVus, CB, CE, RCM,
- Energy Star versionEnergy Star version: Under proceed apply to ES8.0
- EEI ratingEEI rating: A+
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Power cable x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7
10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable

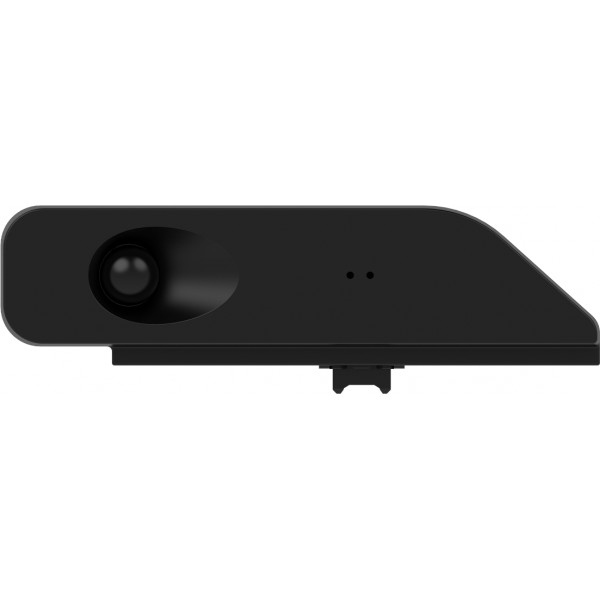

13. Sensor hub
14 .Touch USB cable
15. Micro USB cable for camera - Compatible Slot-in PCCompatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
