Key Features

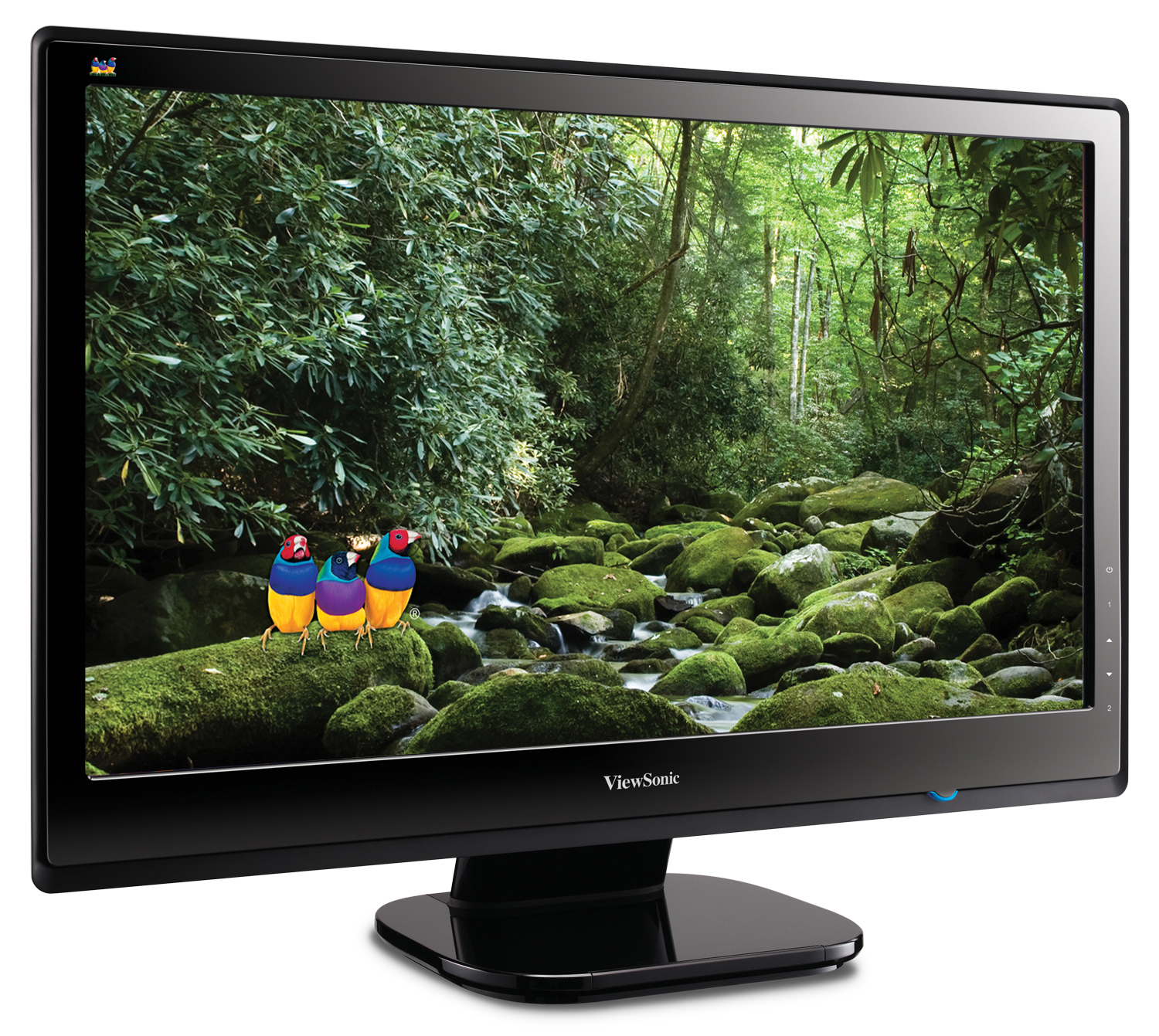

VX2453mh-LED
Product Description
With impressively high contrast ratio and surprisingly large screen, VX2453mh-LED allows you to connect to an excellent visual world with little effort. This multimedia display device is well equipped. Its advanced technologies of LED display deliver true colors and offer a superior visual experience. Its energy-saving design shows ViewSonic’s consideration for humanity. As VX2453mh-LED beautifully represents exciting images with full definition, its excellent performance is even beyond our expectation!
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 24"(23.6" Viewable) Widescreen
    Display Area: 23.6 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 1000:1 (typical), 30,000,000:1 (DCR)
    Brightness: 300 cd/m2 (typ)
    Viewing Angles: 170° (H), 160° (V)
    Response Time: 2ms (GTG fastest), 5ms (GTG typical)
    Panel Surface: Anti-Glare, Hard coating (3H)
  • VIDEO INPUT
    Analog: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
    Frequency: Fh: 24-82KHz; Fv: 50-75Hz
    Sync: Separate Sync / Composite Sync / SOG
  • COMPATIBILITY
    PC: VGA up to 1920×1080 Non Interlaced
    Mac: Power Mac, up to 1920×1080
  • CONNECTOR
    Analog: 1×15 pin mini D-sub
    Digital: HDMI x 2 (HDMI ver.1.3)
    Audio: Audio Out - 3.5 mm jack (blue) / Audio In - 3.5 mm jack (green)
    Power: External Power Adapter
  • AUDIO
    Speakers: 2W x 2
  • POWER
    Voltage: AC 100-240V; 50/60Hz(Switch)
    Consumption: 23 W (typ.) w/o Audi, 34w(Max) with Audio
  • OPERATING CONDITIONS
    Temperature: 0° C - 40° C (32°F - 104°F)
    Humidity: 10 - 90% (non condensation)
  • DIMENSIONS
    Physical: 573mm (width) x 429mm (height) x 196mm (depth)
  • WEIGHT
    Net: 4.1 kg
  • REGULATIONS
    BSMI, CCC, China Energy, PSB, C-Tick, KCC, CE, CB, GostR/Hygienic, Ukraine, UL/cUL, FCC-B, ICES-B, ENERGY STAR 5.0, EPEAT Silver, WEEE, RoHS
