VG2239Smh-2

24" Ergonomic Business Monitor

HDMI, DisplayPort and VGA inputs
Dual integrated speakers
Full HD 1080p resolution
Flicker-Free and Blue Light Filter
VESA mountable

Sales Enquiry

GALLERY

OVERVIEW

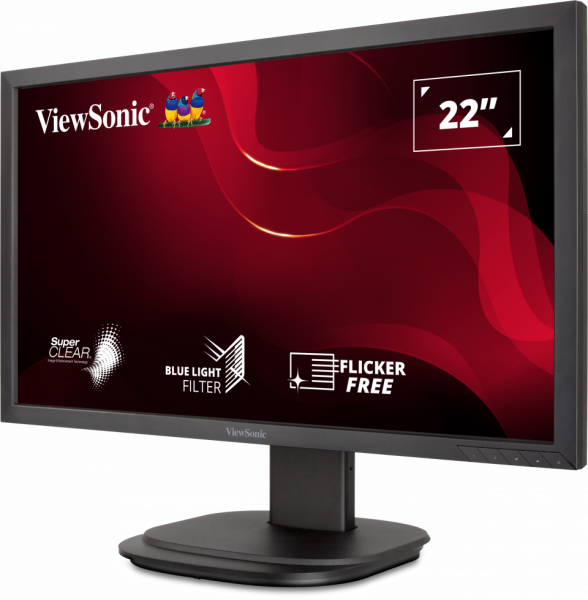

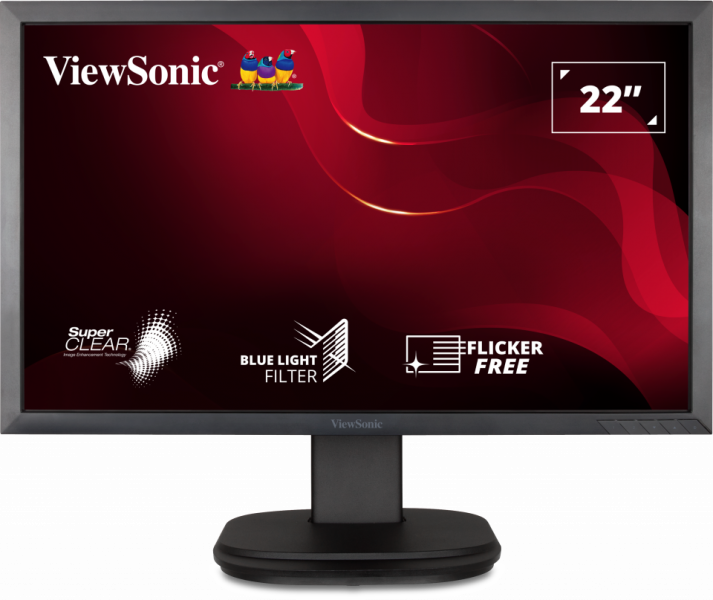

The ViewSonic VG2239Smh-2 is a 22" Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for use in the company or at home. With SuperClear® Technology for wide-angle viewing, and dynamic contrast ratio, this monitor delivers incredibly sharp images and video playback. Integrated with HDMI, DisplayPort, VGA and 2 USB ports, the VG2239Smh-2 allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic’s exclusive ViewMode provides intuitive presets to deliver optimised screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods.

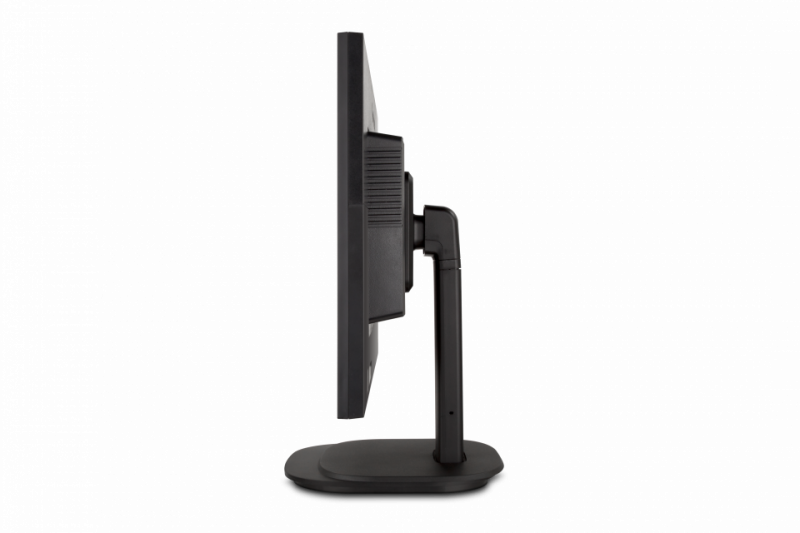

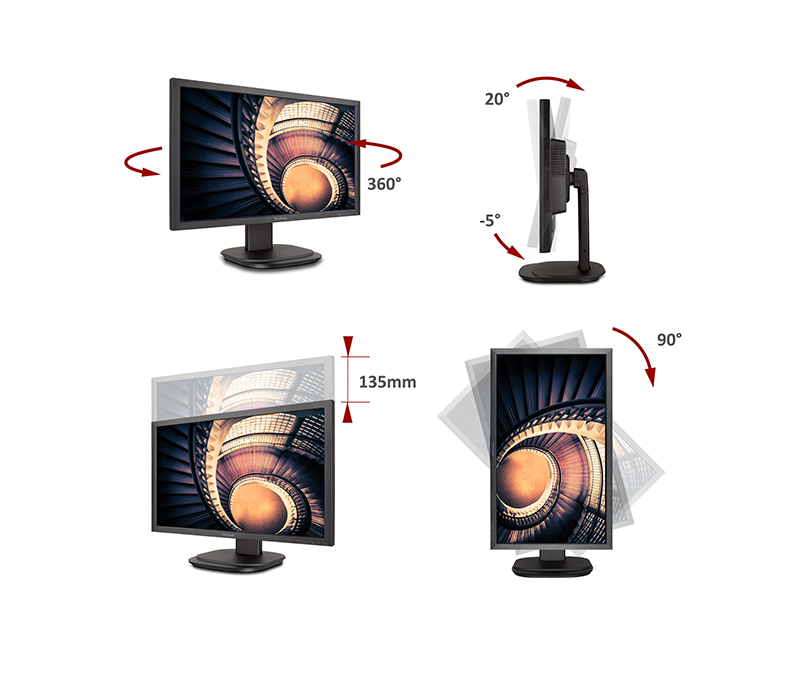

Comfort Ergonomics

Advanced ergonomic features allow VG2239Smh-2 to provide a greater range of adjustments for increased comfort and productivity. Users are able to reduce eyestrain and physical fatigue via swivel, pivot, tilt, and height adjustment options.

Tilt:20°~-5°

Swivel:360°

Rotation:90°

Height adjustment:0~135mm

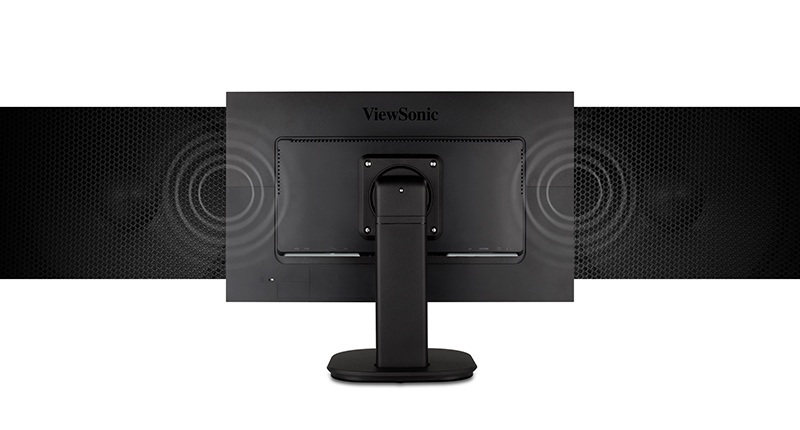

Powerful Sound

VG2239Smh-2’s dual integrated stereo speakers deliver room-filling surround sound. When paired with incredible screen performance, the combination provides complete multi-sensory immersion.

Dual Speakers

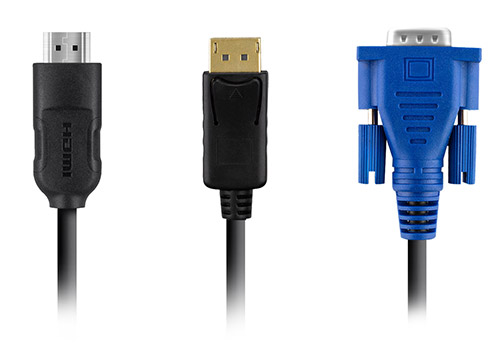

HDMI, DisplayPort, and VGA inputs for flexible connectivity

HDMI, DVI and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.

HDMI, DisplayPort, VGA

Full HD 1080p

The VG2239Smh-2 features Full HD 1920x1080 resolution for unbelievably clear pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether working, gaming, or enjoying the latest entertainment.

Full HD 1080P

Comfortable Viewing

Flicker-Free technology and a Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods.

Flicker Free & Blue Light Filter

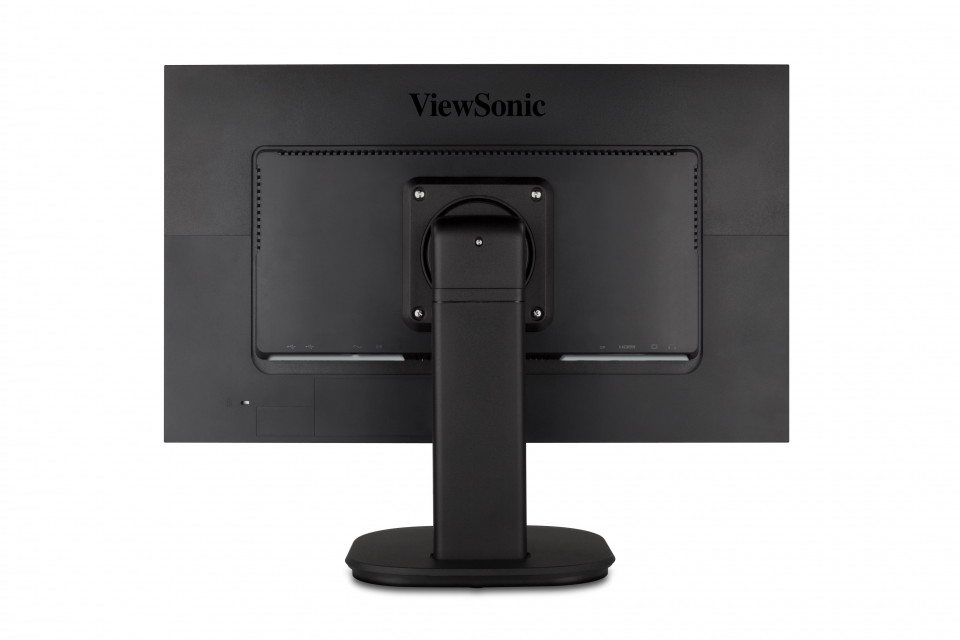

VESA-Compatibility

Conveniently mount the monitor to your preference by utilising the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

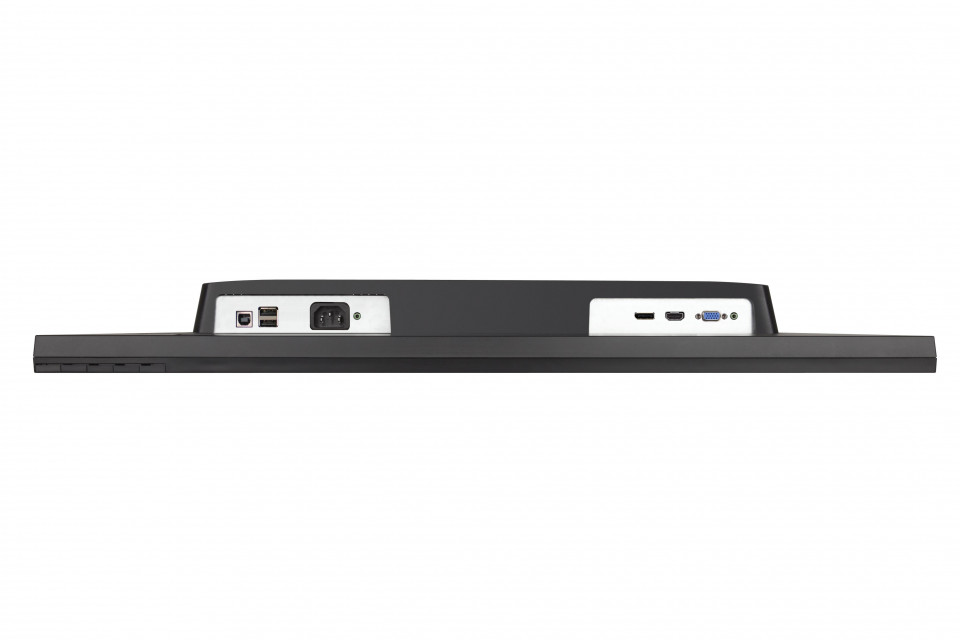

Internal Speakers
VESA Compatible (Wall mount 100 x 100 mm)
Kensington Lock Slot
USB 2.0 x 2
AC In
Audio In
DisplayPort
HDMI
VGA
Earphone

Lower Energy Consumption

An energy-saving Eco-mode incorporates power savings into its stunning screen performance.

Eco-mode

ViewMode Optimised Settings

ViewSonic’s ViewMode includes optimised “Game,” “Movie,” “Web,” “Text,” “Mono”, and “Mac” presets. Each preset offers specialised enhancements to gamma curve, colour temperature, contrast, and brightness to deliver the optimal viewing experience for that specific application.

Game

Movie

Web

Text

Mono

Mac

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows XP/Vista/7/8/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.3: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 10.7W
Eco Mode (optimized): 13.8W
Consumption (typical): 17.2W
Consumption (max): 21W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.3): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.3): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.3), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Height Adjust (mm): 135
Swivel: 360º
Tilt (Forward/Back): -5º / 20º
Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 9.6
Net Without Stand (lbs): 6.4
Gross (lbs): 12.4
Weight (metric)
Net (kg): 4.3
Net Without Stand (kg): 2.9
Gross (kg): 5.6
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.9 x 19 x 7.4
Physical (in.): 20.2 x 16.46~21.77 x 9.4
Physical Without Stand (in.): 20.2 x 12 x 2.2
Dimensions (metric) (wxhxd)
Packaging (mm): 581 x 483 x 187
Physical (mm): 512 x 418~553 x 240
Physical Without Stand (mm): 512 x 304 x 56
General
Regulations: cULus, FCC-B, ICES003, CEC, REACH, WEEE
PACKAGE CONTENTS: VG2239SMH-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
