“In general, we can say that emerged in 2012 ViewSonic VX2336s significantly changes standards in the class of budget monitors for home and office. Currently, this kind of device may well have a screen with a diagonal of 23 inches or more, and use high-quality IPS matrix with good color, brightness, contrast and color gamut.”
OVERVIEW

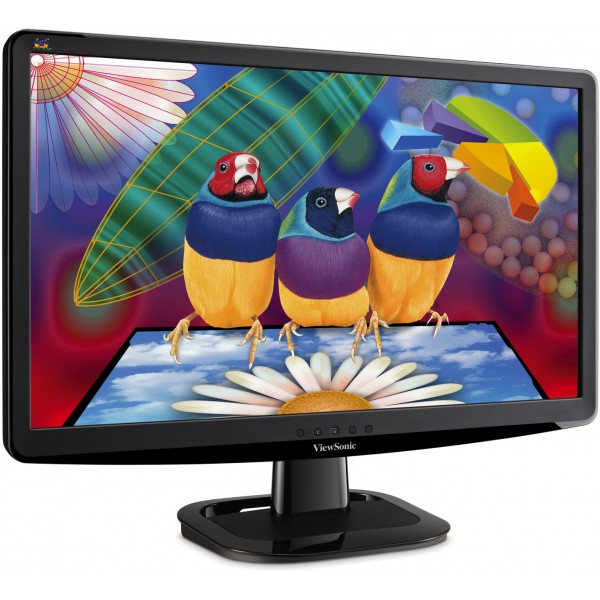

ViewSonic’s 23” VX2336s-LED breaks the boundaries of traditional displays. With our exclusive SuperClear™ technology, VX2336s-LED delivers 178-degree ultra-wide viewing angles with consistent brightness levels and excellent color performance. Enjoy expansive screen real estate with the wide 16 : 9 ratio, ideal for multitasking and multi-window applications. Full HD 1080p video resolution provides a premium viewing experience for video editing, designing and watching, while ultrahigh 20,000,000 : 1 smart dynamic contrast ratio significantly improves the color and grayscale range for sharp, true-to-life images. The environmentally friendly LED display also features a three-phase ECO Mode design that saves energy, saves money and extends the display’s lifetime while offering an amazing visual experience.SuperClear™ wide viewing angles
Get the best view wherever you are. ViewSonic’s new SuperClear™ technology delivers 178-degree vertical and horizontal viewing angles. Experience accurate, vivid colors and consistent brightness levels whether you’re looking at the screen from above, below, the front or the side.
IPS Panel Technology
IPS stands for “In Plane Switching”. It is widely regarded as the best LCD Technology offering superior image quality, color display and viewing angles. For that reason, it is professional for medical facilities, scientific design, digital visual art, video production, architecture and any application where true color and total screen viewing is essential.
Stunning Full HD 1080p
VX2336s-LED features Full HD 1080p resolution for incredible, pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether you’re working, gaming or enjoying the latest video entertainment.
Ultrahigh 20,000,000 : 1 dynamic contrast ratio
Dynamic contrast ratio automatically detects the brightness of an image and adjusts the LED backlight in response. It maximizes the greyscale and color range and boosts contrast ratio to an ultrahigh 20,000,000 : 1, resulting in rich, vibrant photos and videos.
LED Backlighting
LED backlights enhance display performance by delivering an outstanding color gamut and contrast ratio to create remarkably refined images. LEDs also provide energy savings and slimmer displays for an all-new visual experience.
Three-phase ECO Mode
Three-phase ECO Mode automatically adjusts display brightness according to the environment. You can also manually choose from three brightness levels to save energy and extend the display’s lifetime.
REVIEWS
SPECIFICATIONS
- LCDType: 23" Wide
Display Area: 23 inch
Optimum Resolution: 1920x1080
Contrast Ratio: 1000:1 (typical), 20,000,000 : 1 (DCR)
Brightness: 250 cd/m2 (typ)
Viewing Angles: 178° (H), 178° (V)
Response Time: 6ms (GTGbw fastest), 14ms (GTGbw typical)
Panel Surface: Anti-Glare type, Hardness 3H - Video InputAnalog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24-83KHz; Fv: 50-76Hz
Sync: Separate Sync - CompatibilityPC: VGA up to 1920 x 1080 (Non Interlaced)
Mac: Power MAC (up to 1920 x 1080 )
- ConnectorAnalog: 15-pin mini D-sub *1
Digital: DVI-D *1
Power: Internal Power Board , 3-pin plug (CEE22) *1 - PowerVoltage: AC 100-240V (Universal); 50/60Hz
Consumption: 35W (Max); 21W (ECO Mode) - Operating ConditionsTemperature: 32°F - 104°F (0°C - 40°C)
Humidity: 20 - 90% (Non condensed) - DimensionsPhysical: 548mm (width) x 426mm (height) x 201mm (depth)
- WeightNet: 3.6 kg
- RegulationsCE, CB, WEEE, RoHS, REACH SVHC
List, TCO, Energy Star 5.0, Windows 7
/ Vista Premium / XP,UL, cUL, FCC-B
/ ICES003, EPEAT Silver, GOSTR+
Hygienic, UkrSEPRO, ErP, CCC,
CEL Level 1, BSMI,PSB, C-TICK - Wall Mount100mm x 100mm
- Package ContentsPower Cord, VGA Cable, DVI Cable, Quick Start Guide, Wizard CD-ROM
