OVERVIEW

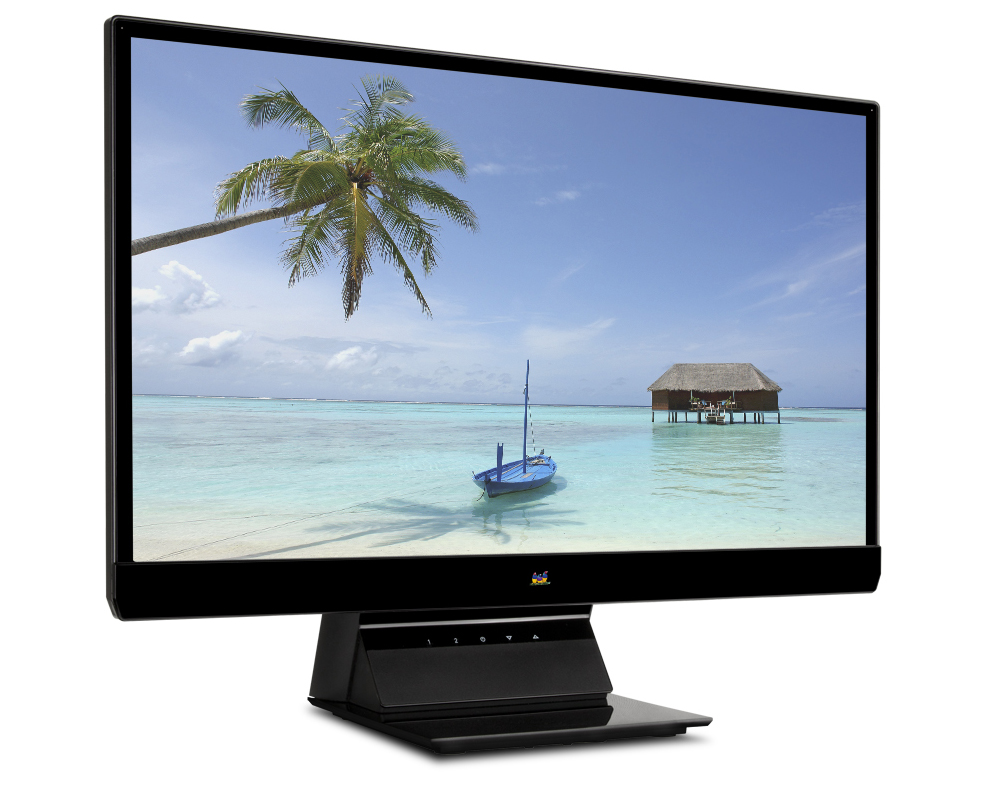

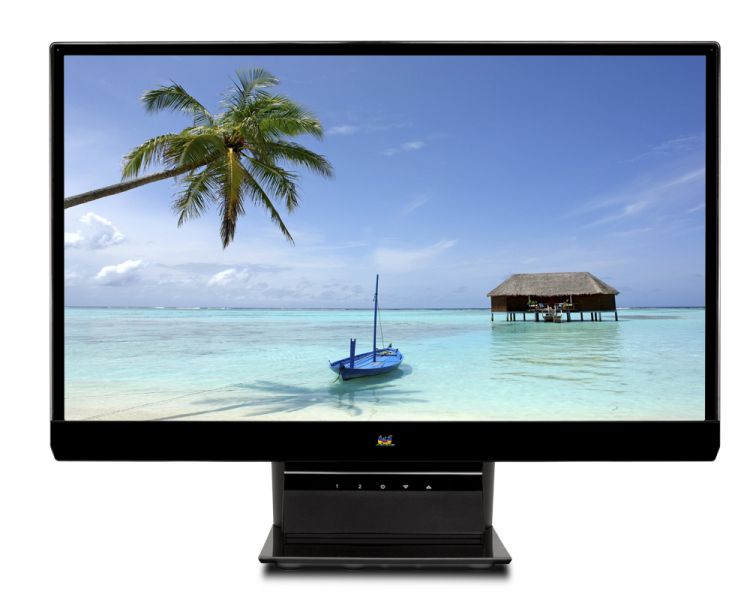

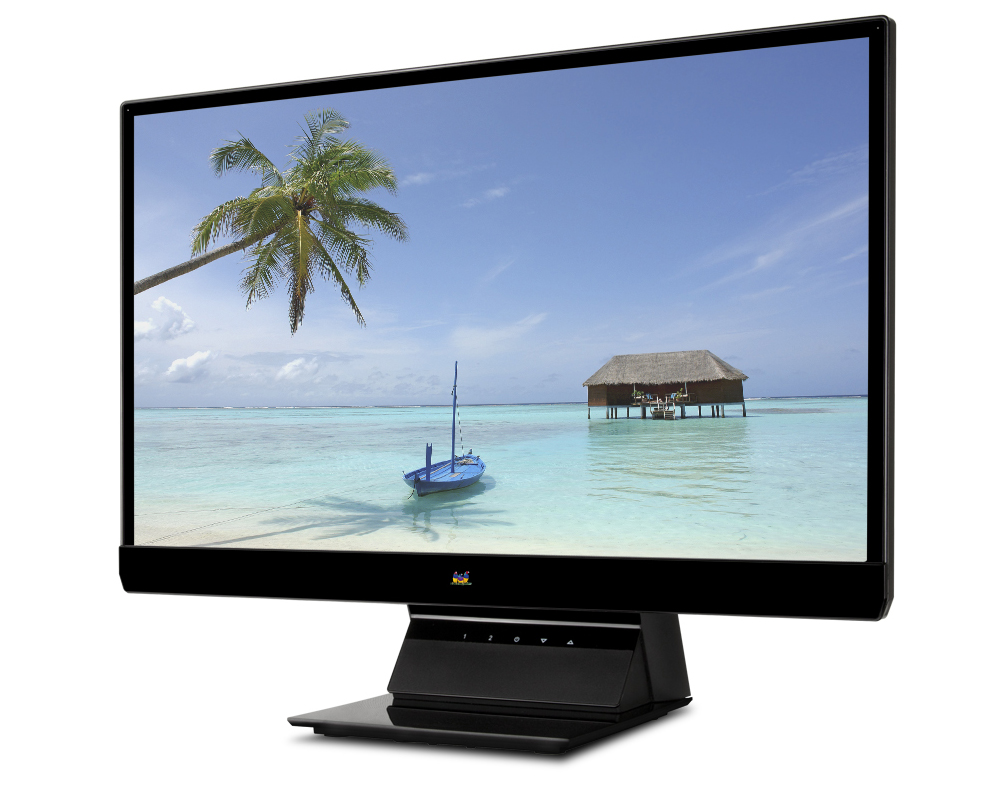

The ViewSonic ® VX2270S-LED features an LED backlit 22" (21.5" viewable) frameless design widescreen monitor with up to 40%* energy savings compared to a regular 22" monitor. The environmentally-friendly mercury-free VX2270S-LED offers Full HD 1920x1080 resolution, and DVI with HDCP and VGA inputs, external power supply, and 30,000,000:1 MEGA Dynamic Contrast Ratio. A stylish glossy ID and thin profile combine to make it the centerpiece of your home or office. The SuperClear ™ AH IPS panel with wide viewing angles and ultra high contrast ratio deliver extraordinary visual clarity, making VX2270S-LED an excellent choice for entertainment and gaming. The industry’s best pixel performance policy, energy saving Eco-mode, and Windows ® 7 certification help ensure the product quality of VX2270S-LED.

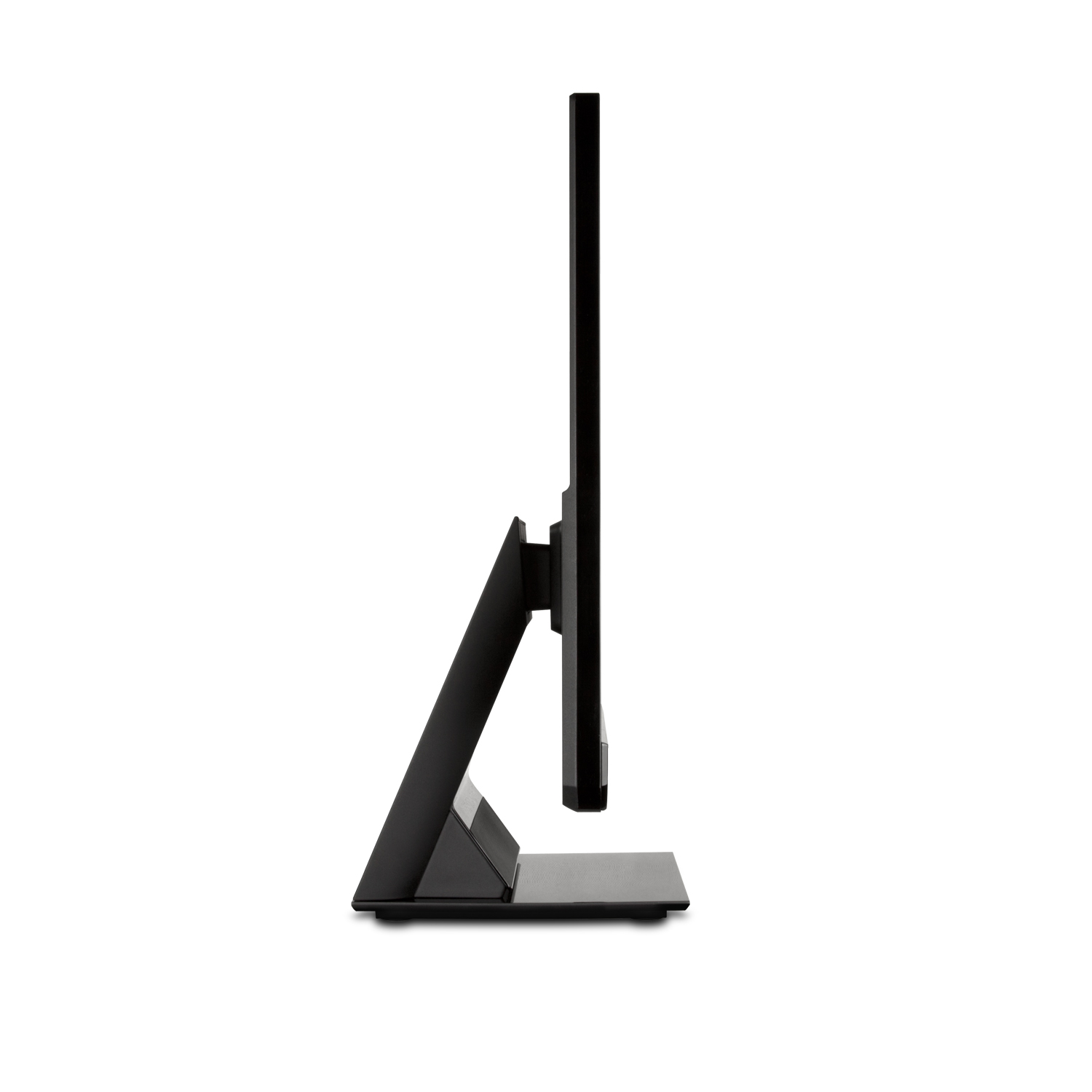

Frameless Flush Surface

This display features a frameless, flush mount front surface and glossy thin-edge design to complement any home or office setting. The sleek touch sensitive controls provide a simple and intuitive operating experience.

178/178 Degree Super Wide Viewing Angles

IPS technology means no image distortion or color shifting even at extreme angles. Capture true color even from 178 degree angles with the VX2270S-LED's AH IPS panel.

sRGB Color Correction Defines the Truest Color

Accurate and consistent color performance is essential for professionals in graphic design, video editing and other professional environments. With builtin sRGB color correction technology, the VX2270S-LED can reproduce 100% sRGB rich color performance and capture the original and true colors from screen to print.

Superlative 30,000,000:1 MEGA Dynamic Contrast Ratio

Dynamic contrast ratio defines a differentiating relationship between darkest and brightest colors when reproducing an image. With dynamic contrast ratio, VX2270S-LED is capable of automatically detecting the brightness and darkness of an image and adjusts the LED backlight accordingly. It maximizes grayscale and color ranges and boosts contrast ratio to an ultrahigh 30,000,000:1, resulting in rich, vibrant visuals.

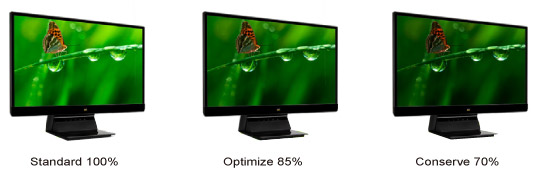

Planet-Friendly LED Backlighting and Eco-Mode

Embedded mercury-free LED backlighting and Eco-mode features energy-saving with the three-phase self-adjusted power-saving mode. VX2270S-LED enhances display performance by delivering an outstanding color range, contrast ratio and brightness output for remarkably defined images.

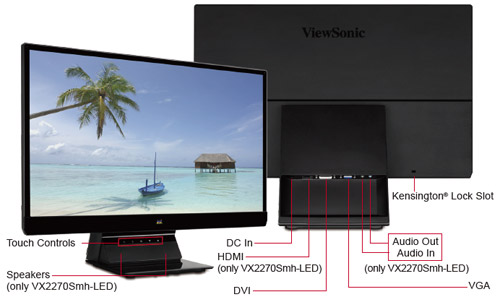

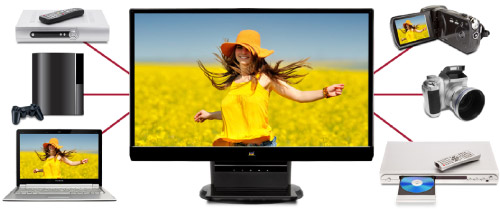

HDMI Input for High Definition Presentations(only VX2270Smh-LED )

Multi-mode input technology supports both digital (HDMI / DVI) and analog (VGA) signals for ultimate compatibility and configuration flexibility.

SPECIFICATIONS


  • LCD
    Type: 21.5" Wide Color TFT Active Matrix IPS LED
    Display Area: 21.5 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 1,000:1 (typical), 30,000,000:1 (DCR)
    Brightness: 250 cd/m2 (typ)
    Response Time: 4ms (GTG fastest), 7ms (GTG typical)
    Panel Surface: Anti-glare, hard-coating (3H)
    Light Source: 30,000 Hrs (Min.)
  • Video Input
    Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Digital: DVI-D
    Frequency: Fh: 24-83KHz; Fv: 50-76Hz
    Sync: Separate Sync
  • Compatibility
    PC: PC compatibles (from VGA up to 1920x1080 non-interlaced)
    Mac: Up to 1920x1080

SUPPORT & DOWNLOADS


Datasheets

VX2270S-LED Datasheet
