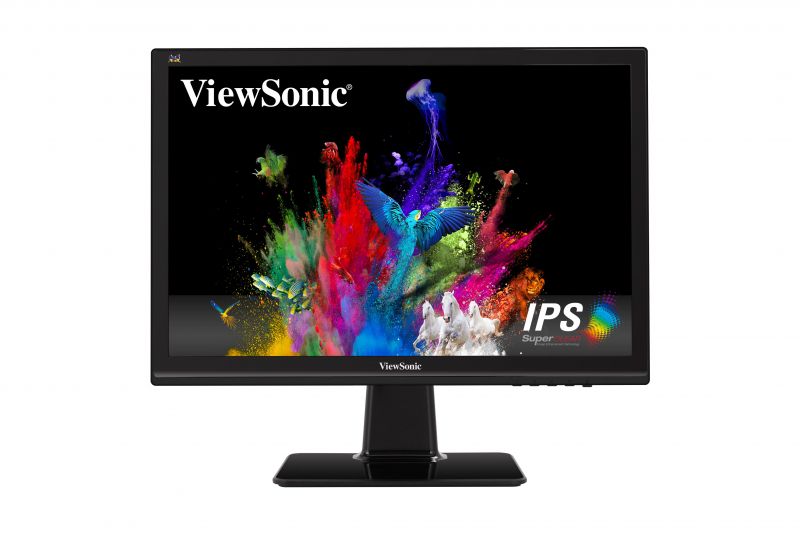

VX2039-sa
20" 1440x900 Entertainment Monitor
- SuperClear® IPS technology
- 16:10 aspect ratio
- 80M:1 dynamic contrast ratio
- ViewMode technology
- Flicker-Free and Blue Light Filter
OVERVIEW
The ViewSonic VX2039-sa is a 20”(19.5” viewable) LED Monitor which is ideal for business professionals or home usage. In addition to 80M:1 dynamic contrast ratio and a 16:10 widescreen, it is also equipped with SuperClear® IPS technology, delivering a 178 /178 degree wide viewing angle and stunning image quality with brilliant visual performance. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. Lastly a VESA-compatible mount adapt easily to multi-monitor or wall-mount set ups.SuperClear: Stunning Color Performance & Wide-angle Viewing
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear® IPS technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

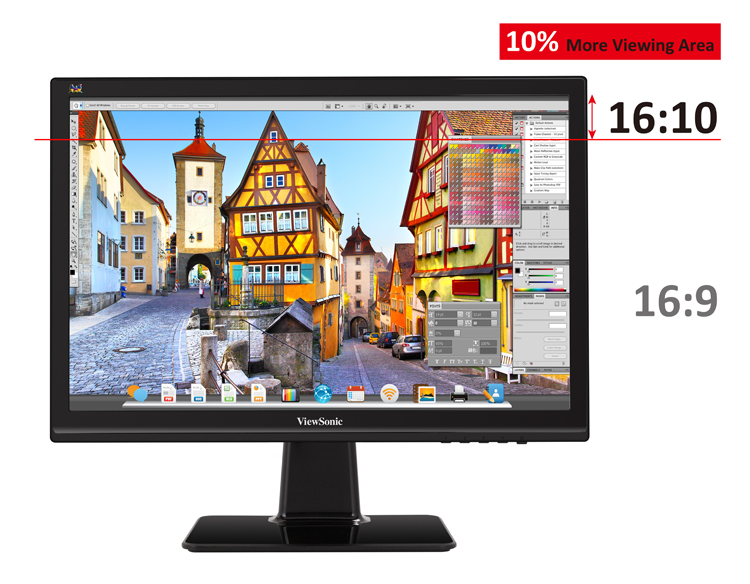

16:10 Widesceen optimized for office work, web surfing and video
With an enlarged 16:10 aspect ratio, this display enhances productivity by providing 10% more vertical screen space than standard 16:9 displays. This provides more screen real estate for viewing office docs, graphic design work, web browsing, and online media.

80M:1 dynamic contrast ratio for sharp, crisp images
Dynamic contrast ratio detects the brightness of an image, and automatically adjusts the backlight to maximize the monitor’s color range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images, producing vibrant and rich visual effects.

ViewMode: Superior Color Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Eco-mode Conserves More Energy and Cuts Costs
ViewSonic’s proprietary Eco-mode energy-saving feature is built into all ViewSonic LED monitors. Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and prolonging the monitor's lamp life. With Eco-mode, the lifespan of the LED backlighting is also greatly increased.

VESA-Compatible Mount Design
Mount the monitor as you see fit using its convenient 100 x 100mm VESA-mountable design.

SPECIFICATIONS
- DisplayDisplay Size (in.): 20
Viewable Area (in.): 19.5
Panel Type: IPS Technology
Resolution: 1440 x 900
Resolution Type: WXGA+ (Wide XGA+)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:10
Response Time (Typical GTG): 14ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 101% size (Typ)
Pixel Size: 0.291 mm (H) x 0.292 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1440x900
Mac® Resolution (max): 1440x900
PC Operating System: Windows 7/8 tested

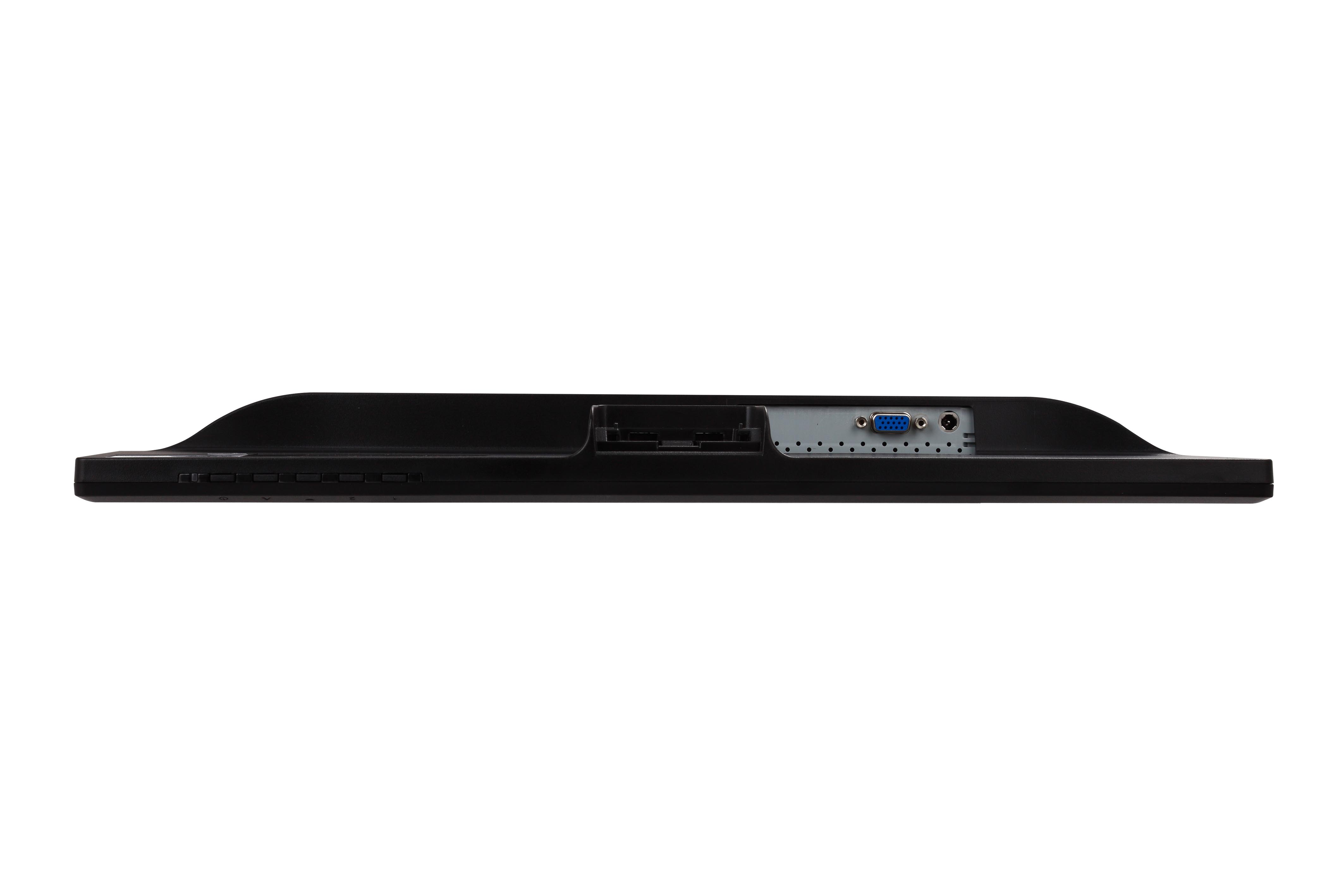

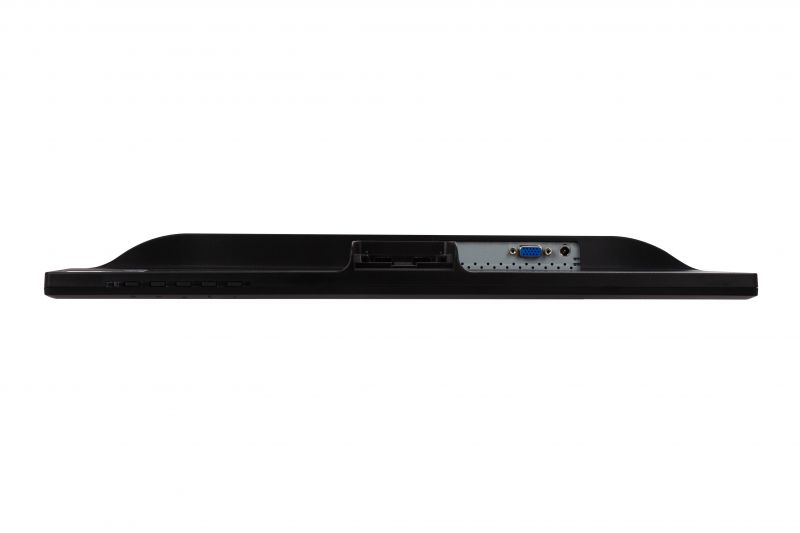

Mac® Resolution (min): 1440x900 - ConnectorVGA: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 11W
Eco Mode (optimized): 13W
Consumption (typical): 16W
Consumption (max): 17W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz - Video InputAnalog Sync: Separate/Composite/SOG - RGB Analog
- ErgonomicsTilt (Forward/Back): -5º / 15º
- Weight (imperial)Net (lbs): 4.9
Net Without Stand (lbs): 4.2
Gross (lbs): 7.1 - Weight (metric) Net (kg): 2.2
Net Without Stand (kg): 1.9

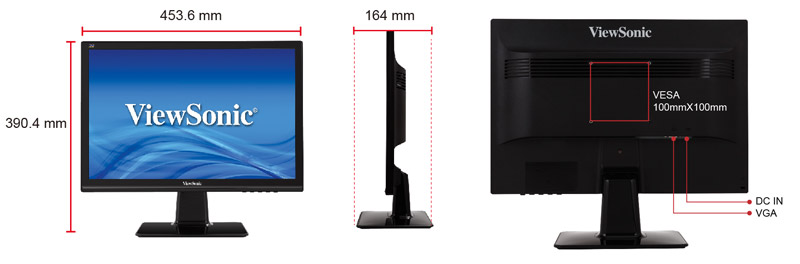

Gross (kg): 3.2 - Dimensions (imperial) (wxhxd)Packaging (in.): 19.7 x 15.4 x 4.5
Physical (in.): 17.9 x 15.4 x 6.5
Physical Without Stand (in.): 17.9 x 12.1 x 1.6 - Dimensions (metric) (wxhxd)Packaging (mm): 500 x 392 x 115
Physical (mm): 454 x 390 x 164
Physical Without Stand (mm): 454 x 308 x 40 - GeneralRegulations: RoHS, REACH, WEEE
PACKAGE CONTENTS: N/A xVX2039-SA x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
