OVERVIEW

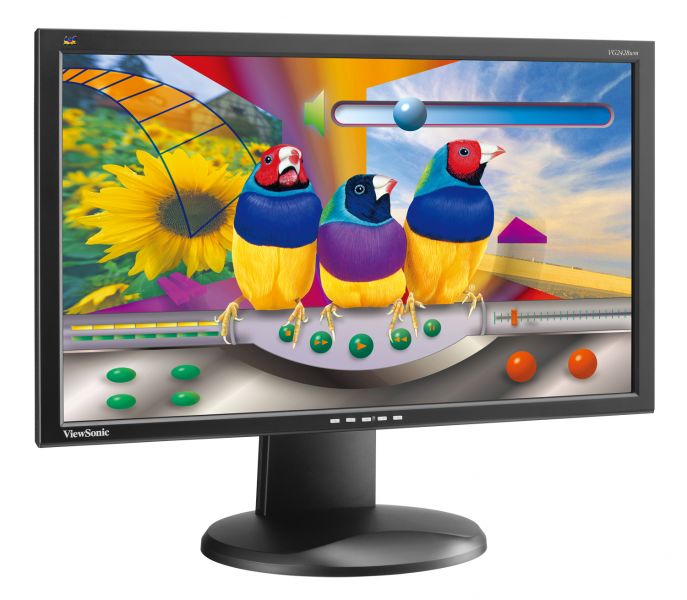

The 24" (23.6" viewable) VG2428wm LCD is the big and wide, multimedia solution to your demanding business needs. Featuring Full HD 1920x1080 resolution and 100,000:1 dynamic contrast ratio, this high performance display is ideal for graphics professionals, high-def multimedia visuals and other digital content. The DVI-D connector ensures your high-def content stays high-def, while the USB ports expand your connectivity for greater convenience. The fully adjustable ergonomic base enhances your comfort. The slim bezel allows you to have a large screen on your desk and use minimal space. Demanding professionals will love the feature packed, high-performance, widescreen VG2428wm.Multi-functional base design (Swivel, Tilt & Height adjustment)
VESA compliant wall-mount interface and detachable base for ergonomic flexibility height, tilt and 360° swivel adjustments.
Widescreen aspect ratio with 1920×1080 resolution
The widescreen aspect ratio allows you to view Full HD content in its native format with no stretching or distortion.
20,000:1 dynamic contrast ratio
Provides darker black levels and better overall front-of-screen performance.
OptiSync® digital/analogue inputs expand your connectivity
Multi-mode input technology supports both digital (DVI) and analog (VGA) signals for ultimate compatibility and configuration flexibility.
Analogue/Digital inputs and integrated USB hub expands connection options
Eco mode
Environmentally-friendly Eco-mode reduces power consumption and extends backlight life.
Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up valuable desktop real estate.
SPECIFICATIONS
- LCDType: 23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Display Area: 23.6 inch
Optimum Resolution: 1920x1080
Contrast Ratio: 1000 :1 (typical), 100,000:1 (DCR)
Brightness: 300 cd/m2 (typ)
Viewing Angles: 170°(H), 160°(V)
Response Time: 5ms
Panel Surface: Anti-Glare, hard coating - Video InputAnalog: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D(TMDS, 100ohms)
Frequency: Fh: 22-82KHz; Fv: 50-75Hz
Sync: H/V Separated - CompatibilityPC: VGA up to 1920×1080 non-interlaced
Mac: Power Mac, up to 1920×1080
- ConnectorAnalog: 15 pin mini D-sub×1
Digital: DVI-D
USB: 2.0x2(2 down stream/1 up stream)
Audio: 3.5 mm Audio in
Power: Built-in power Adapter, 3-Pin plug - AudioSpeakers: 2x2 watt
- PowerVoltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 45(typ.) - ControlsBasic: Power, Mute,[1], Up, Down, [2]
OSD:Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B] Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, sleep, memory recall
- Operating ConditionsTemperature: 0-40°C(32-104°F)
Humidity: 20-90%(Non condensed) - DimensionsPhysical: 564mm (width) x 442mm (height) x 250mm (depth)
- WeightNet: 9.6 kg
- RegulationsCB, TCO5.0, WEEE, RoHS, Windows 7, Vista Premium, XP,TUVGS,TUV-Ergo, CE
GOST-R+Hygienic, SASO, Ukraine, BSMI, PSB, C-TICK - Wall Mount100mm x 100mm
