OVERVIEW

The SD-T225, 21.5” thin client display is perfect for any organization seeking cost-effective and flexible solutions for their virtual desktop computing needs. Equipped with a TI 1-GHz ARM® Cortex®-A8 CPU and ARM Linux, the SD-T225 is optimised for all major remote networking protocols including Microsoft RDP with RemoteFX, Citrix ICA/HDX, and PCoIP for VMware View—making it a versatile virtualization solution with endless possibilities. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display also consumes up to 80% less energy than standard PC’s. ViewSonic thin clients are the smart choice for your virtual desktop deployments.

All-in-one integrated thin client display with PC-like functionality

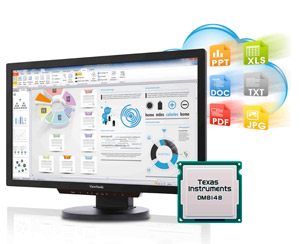

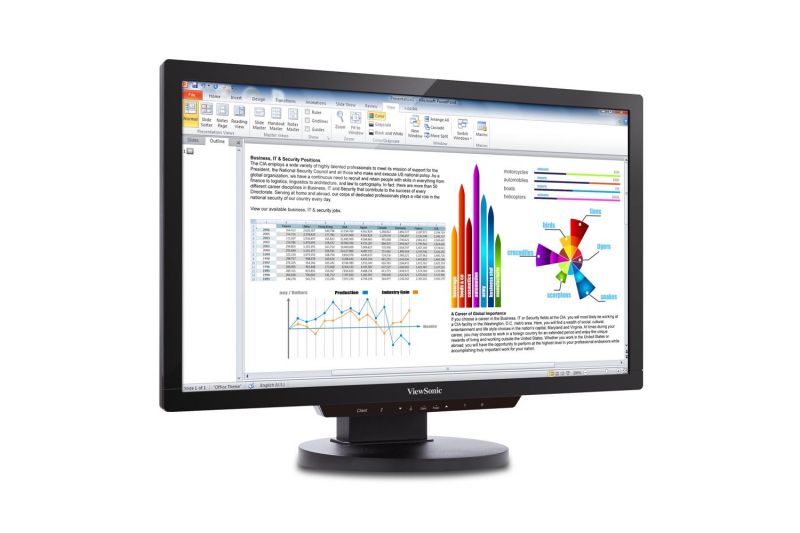

ViewSonic’s SD-T225 is a 22” (21.5’’ viewable) all-in-one integrated thin client display with TI dual-core processor and ARM Linux OS. As a virtual desktop computing endpoint, it offers users full PC-like functionality while providing access to data from a networked cloud server.

Enterprise-class virtualization

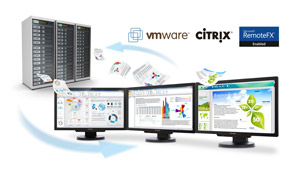

Whether running Citrix XenDesktop, VMware View, or Microsoft-based VDI, the SD-T225 is the most flexible solution to handle all of your VDI-based virtualization and traditional computing needs.

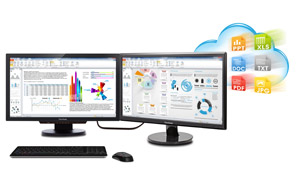

Dual-display productivity

With an integrated DVI output, this integrated thin client display can be easily attached to a secondary display for increased work productivity.

Flexibility for your peripherals

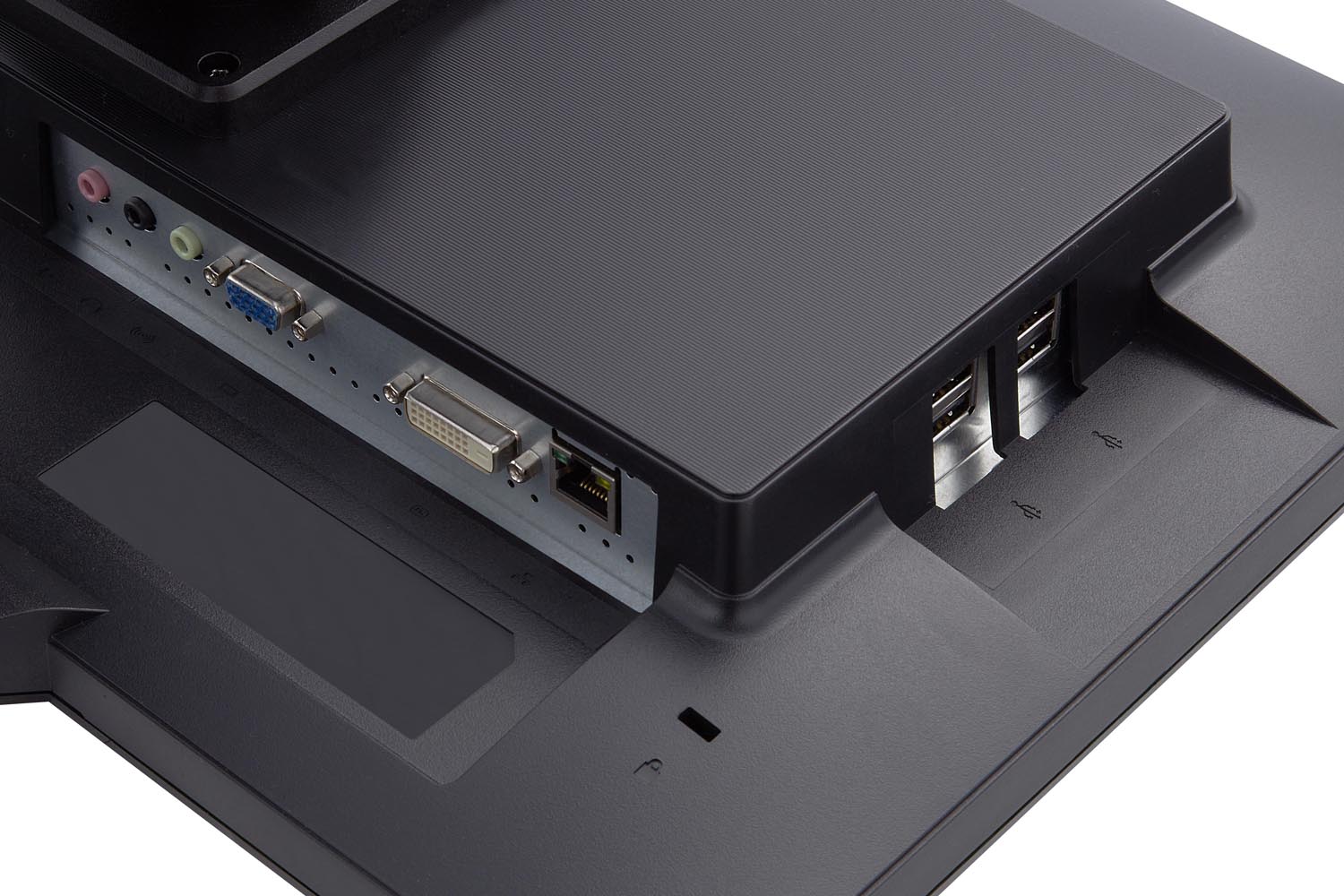

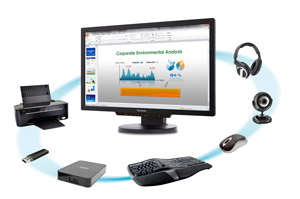

Versatile connectivity includes all common formats for connecting today’s components for business and entertainment. These include dual video (DVI-D and DVI-I), Mic and headphone, 4-USB (V2.0) ports for your peripherals, and RJ45 Ethernet for your 10/100/Gigabit network.

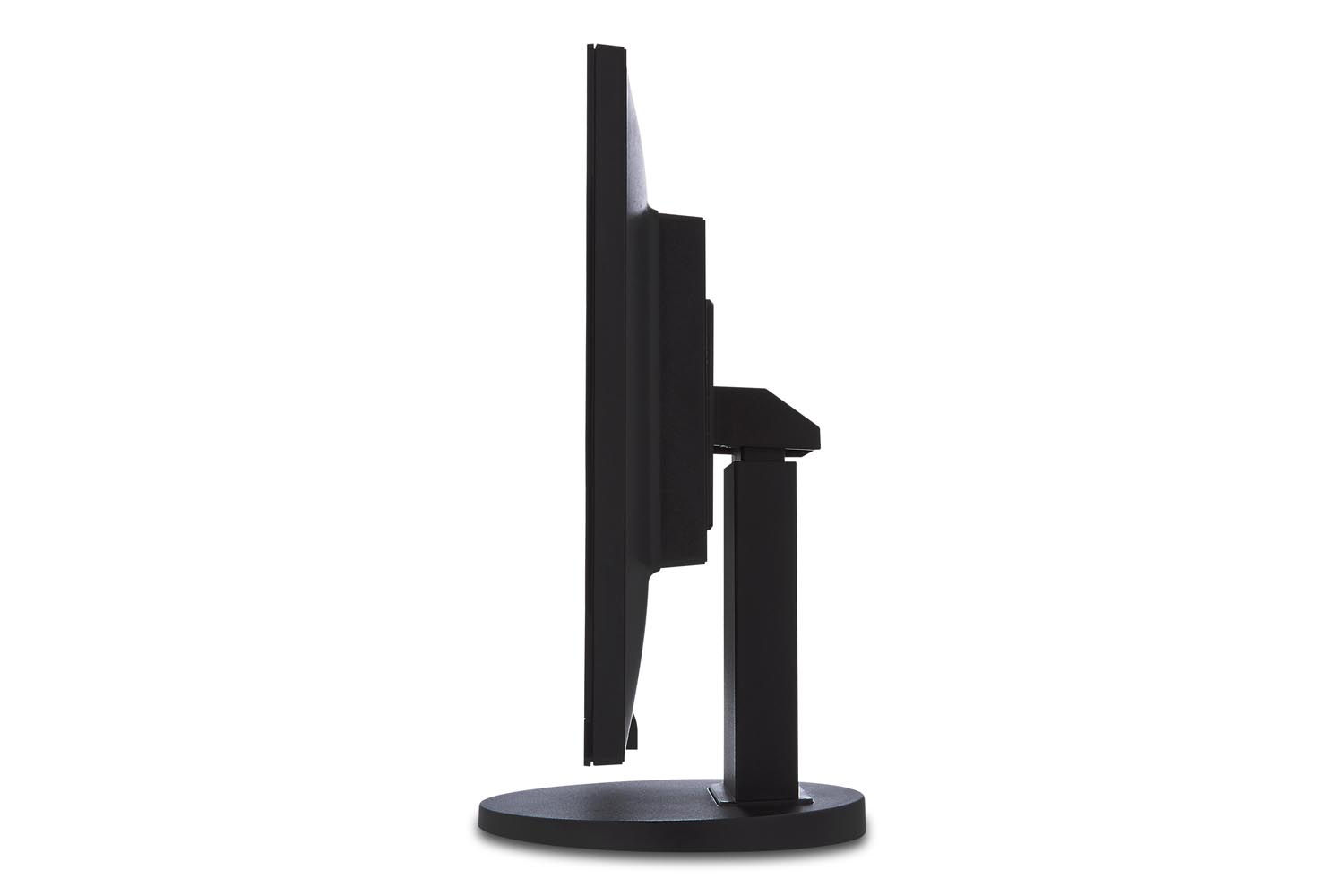

Ergonomic design for comfort and productivity

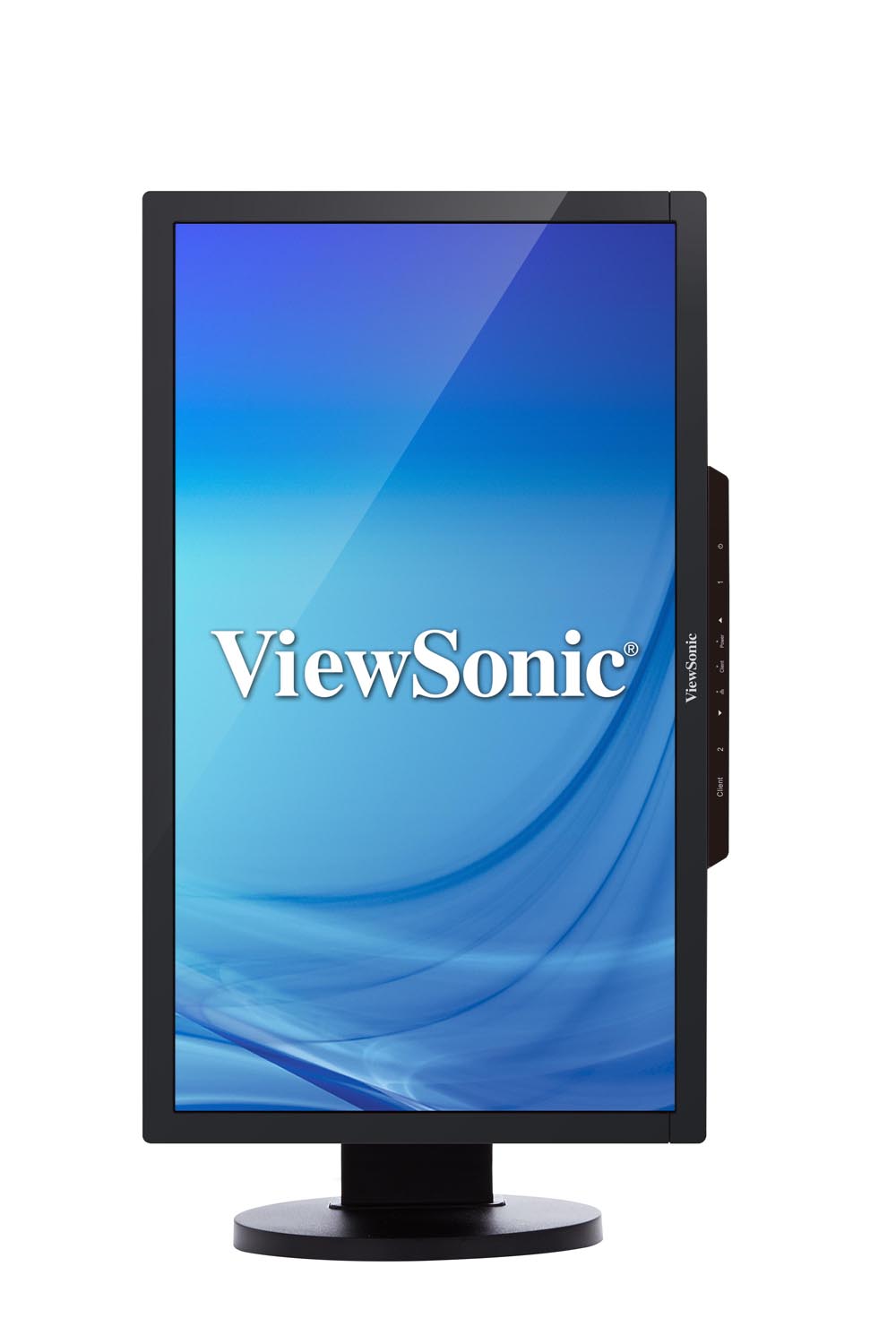

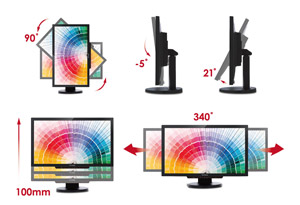

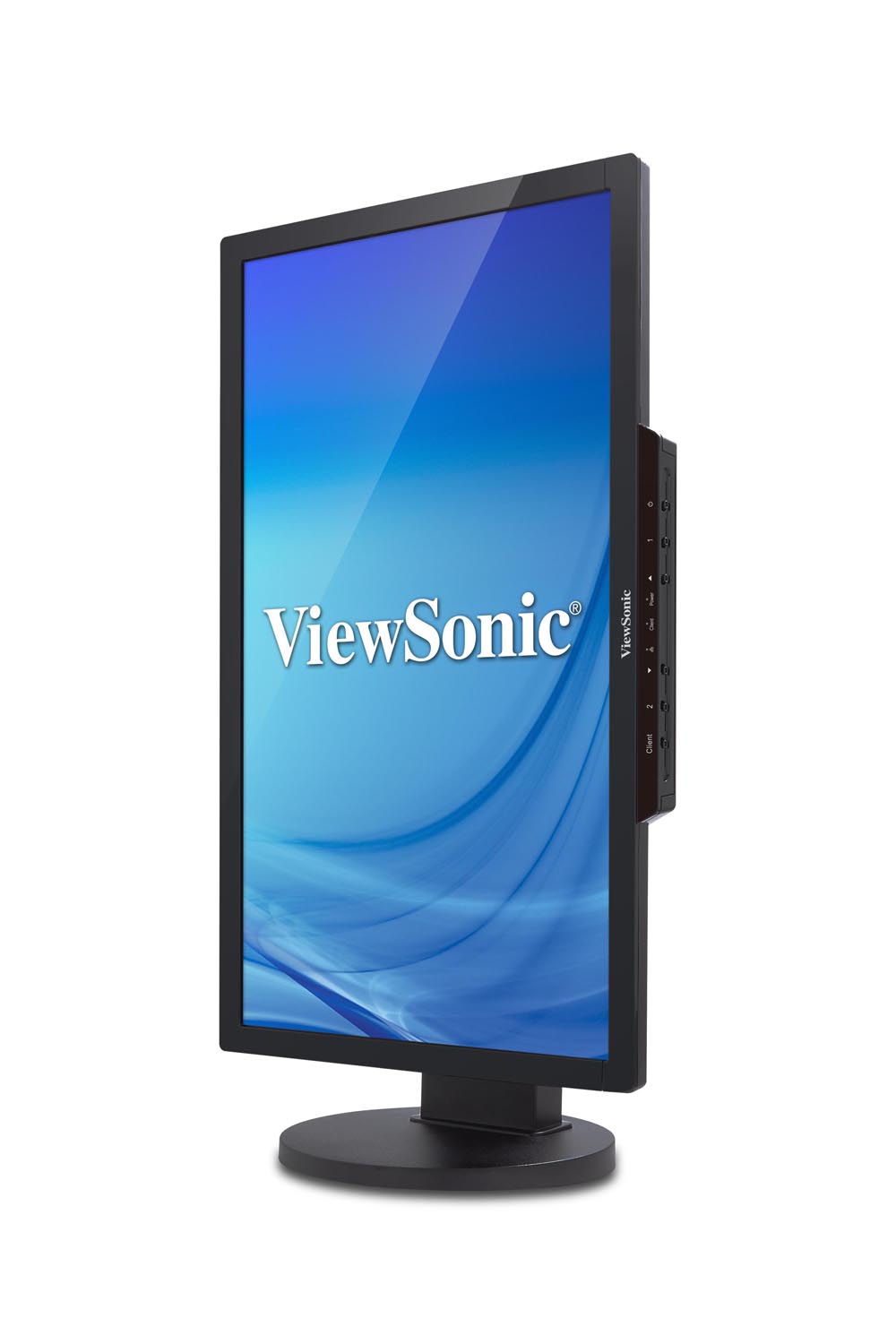

With advanced ergonomic features, ViewSonic displays are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue with 340-degree swivel, 90-degree pivot, -5 to 21-degree tilt, and 100mm height adjustment options.

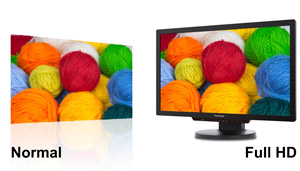

Full HD 1080p for Superior Pixel Performance

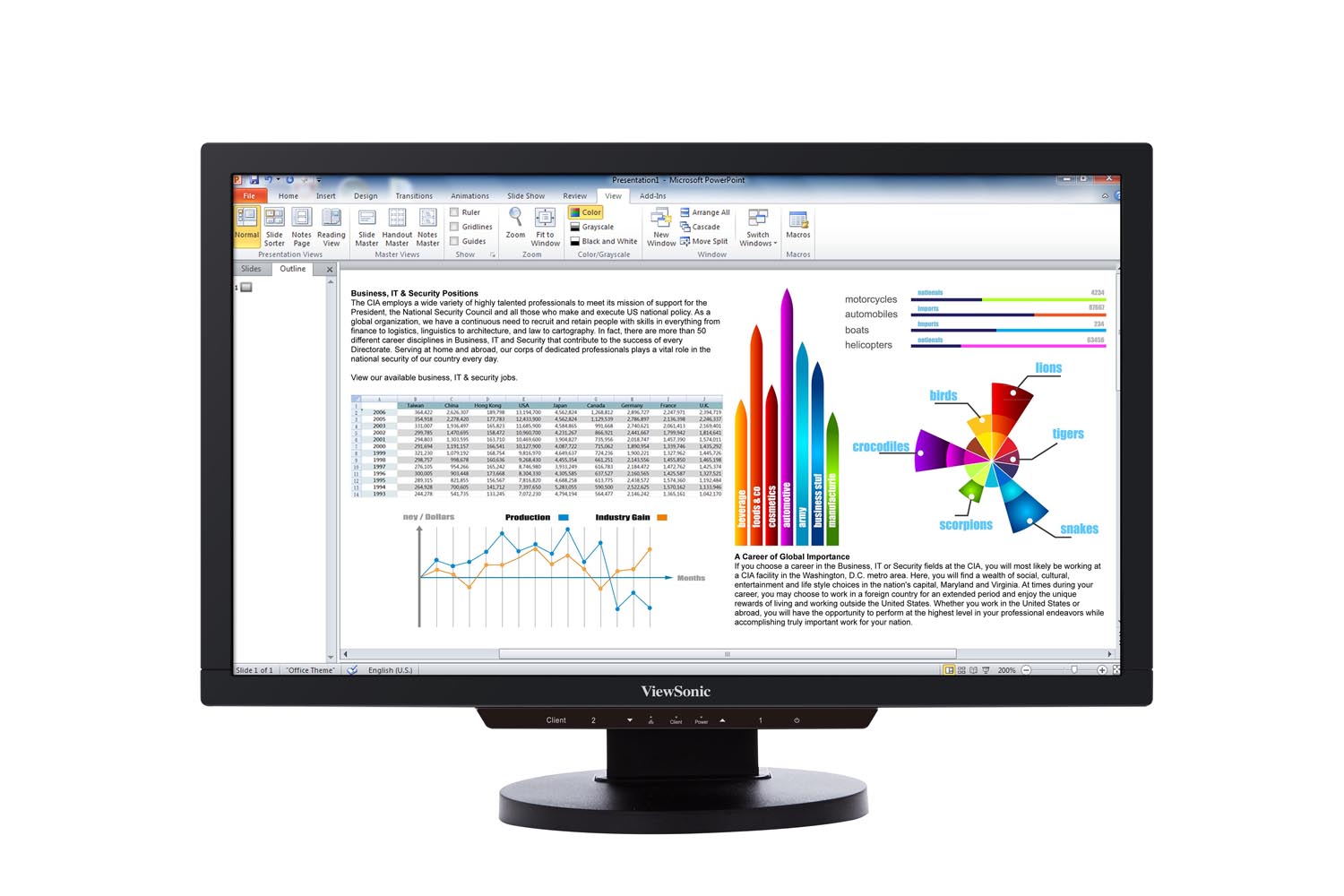

The SD-T225 features Full HD 1920 x 1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment. A 16:9 widescreen ratio minimizes eye fatigue even after hours of viewing, and is perfectly compatible with multi-window viewing without toggling.


20M:1 MEGA Dynamic Contrast Ratio

Dynamic contrast ratio detects the brightness of an image, and automatically adjusts the backlight to maximize the monitor’s colour range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images, producing vibrant and rich visual effects.

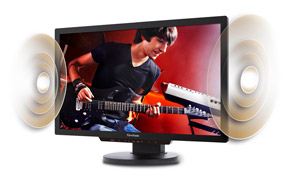

Dual stereo speakers for enhanced audio

This integrated thin client display has two built-in speakers for enhanced multimedia performance and stereo sound.


Simplified and secure management

The bundled ViewSonic Device Management Pro software provides IT administrators with a powerful interface for easier, faster deployment. This client-side software also makes it easy to centrally control up to thousands of deployed devices, providing better management of software license renewals, compliance, and security.

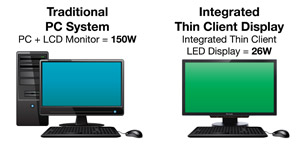

Lower energy consumption, lower TCO

With its ultra low 26W typical power consumption in Eco-mode, the SD-T225 integrated thin client display is not only environmentally friendly but also friendly on your electricity bill. The savings of this integrated thin client display can add up to thousands of dollars for large install bases, compared to traditional PC’s and monitors.

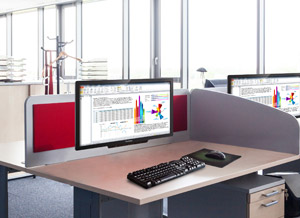

VESA-Mountable

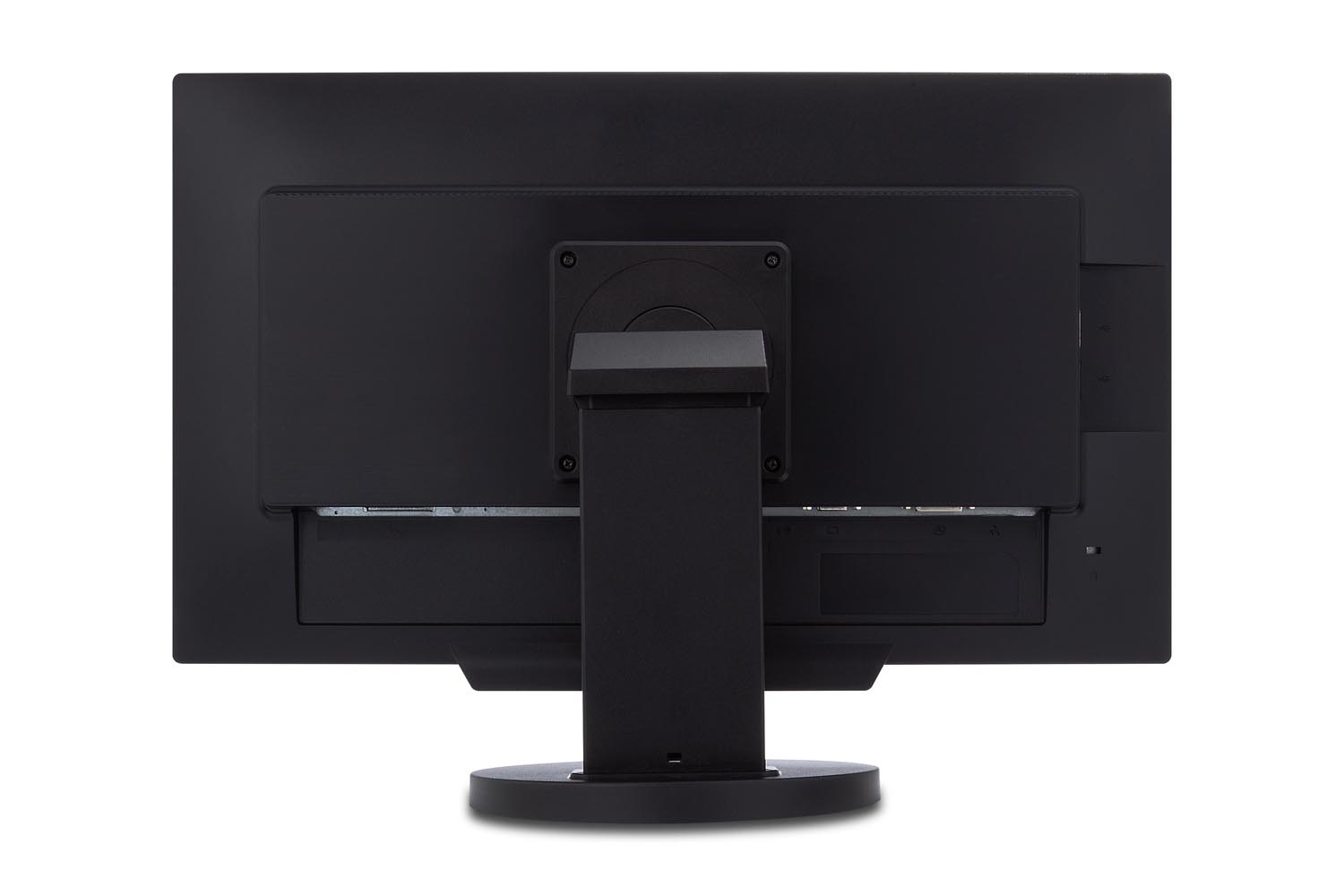

The SD-T225 features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily unscrew the base, and then mount the display on its new stand or wall mount.

SPECIFICATIONS


  • SYSTEM
    CPU Processor : TI DM8148, Cortex A8
    Operating System: Linux
    System Memory : DDR3 1GB (256MBx4)
    Storage Memory : eMMC, 4GB
  • DISPLAY
    Type: 21.5" Colour active matrix TFT LCD
    Optimum Resolution: 1920 x 1080 (WUXGA)
    Brightness: 250 cd/m2 (Typ)
    Contrast Ratio : 1000 :1 (Typ.) 700:1(min)
    Viewing Angles: 170 Deg H and 160 Deg V (Typ.)
    Response Time: Tr+Tf: 5ms(Typ.) / 10ms (Max.)
    Backlight: WLED
    Backlight Life: 30000 Hrs (Min)
    Touch Panel: Anti-Glare type, Hard-coating (3H)
  • INPUT/OUTPUT
    USB : USB 2.0 x4
    LAN/Ethernet: RJ45
    Video: DVI-D output x1; RGB x1
    Audio: Microphone in x1; Microphone out x1
    Power : DC In x1
    Speakers : 2W x2
