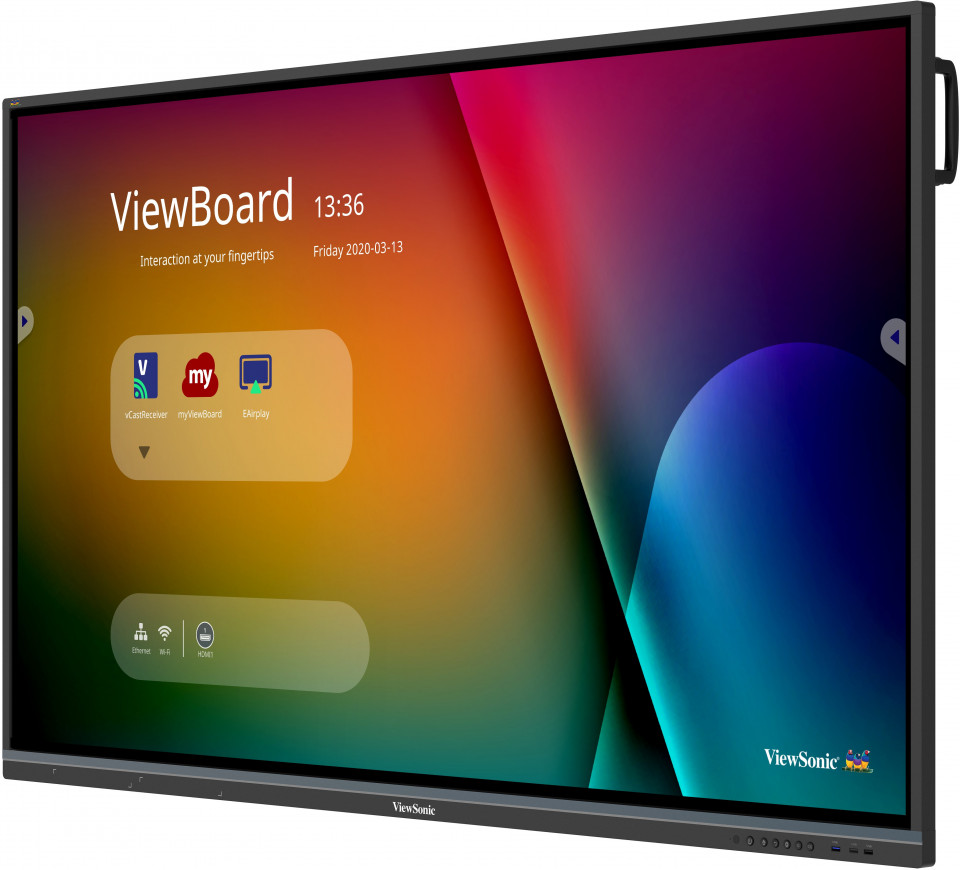

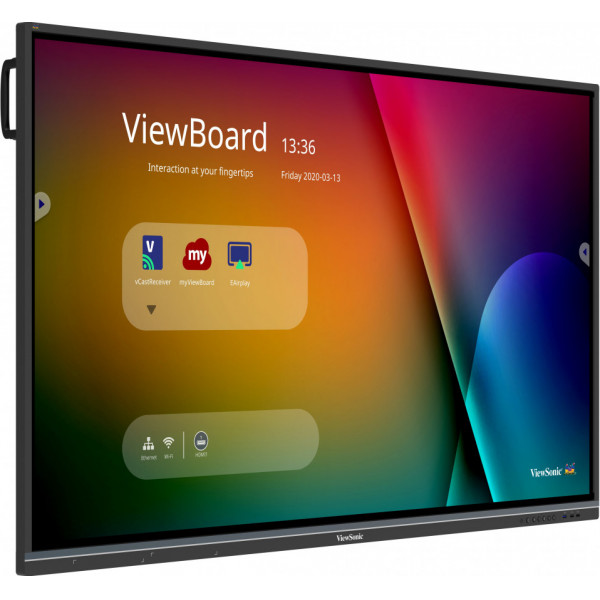

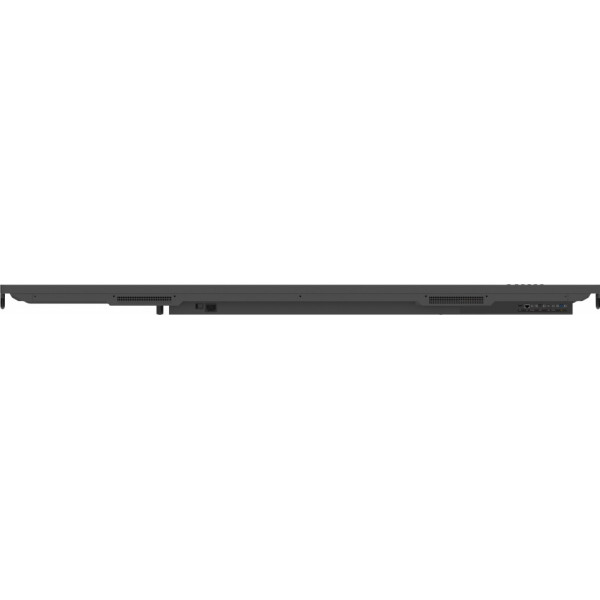

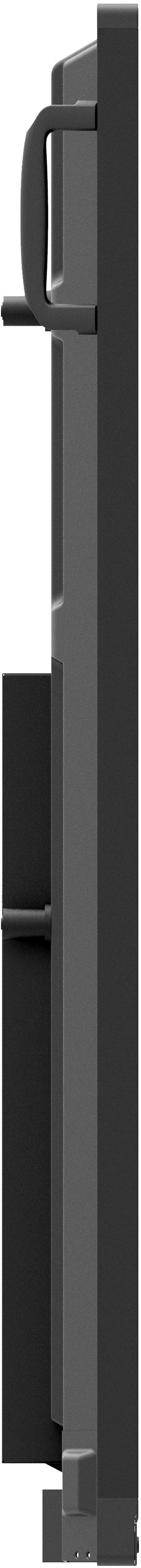

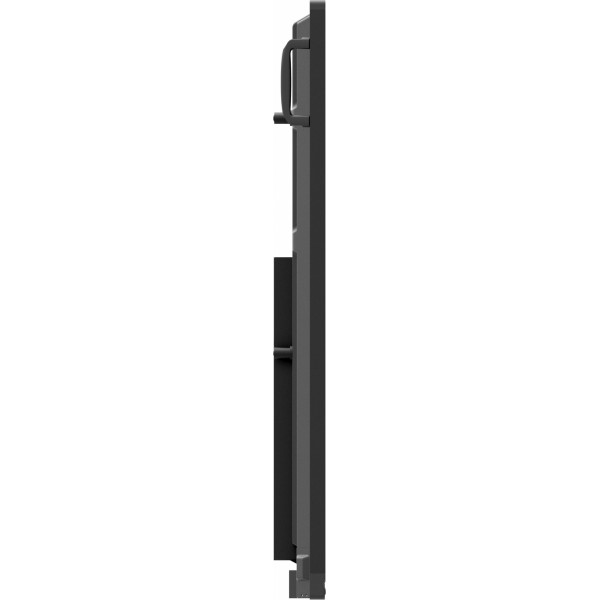

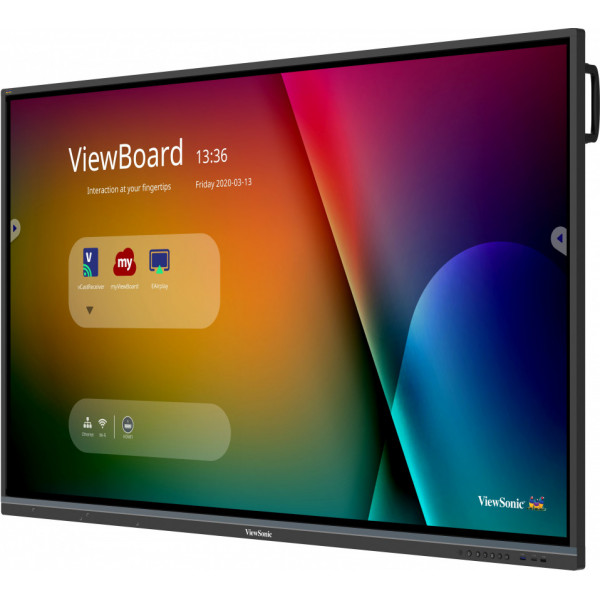

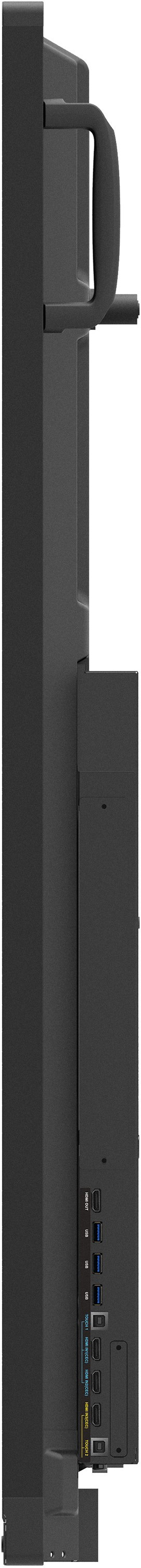

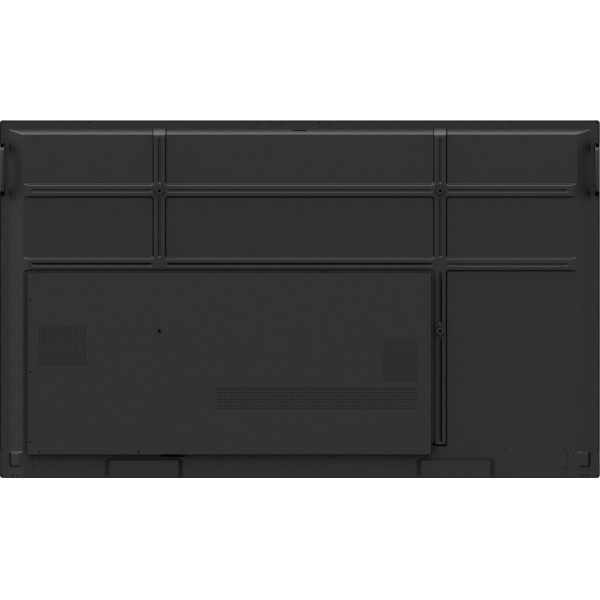

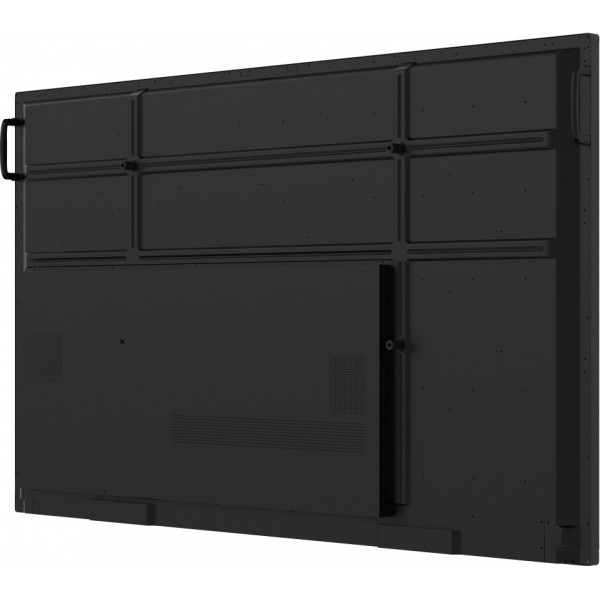

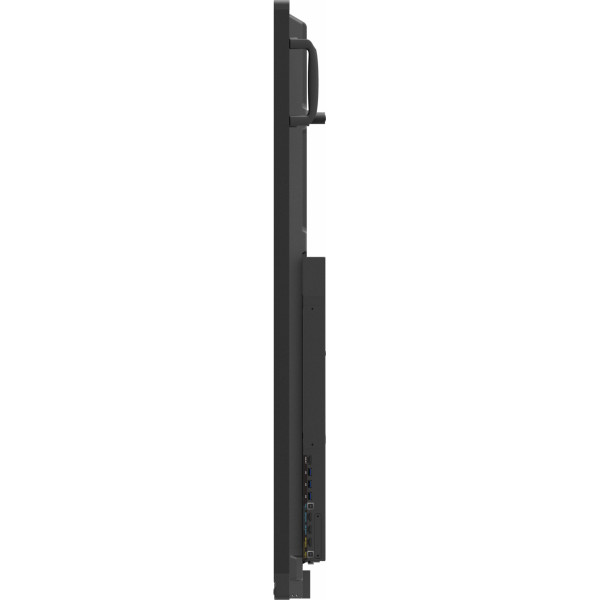

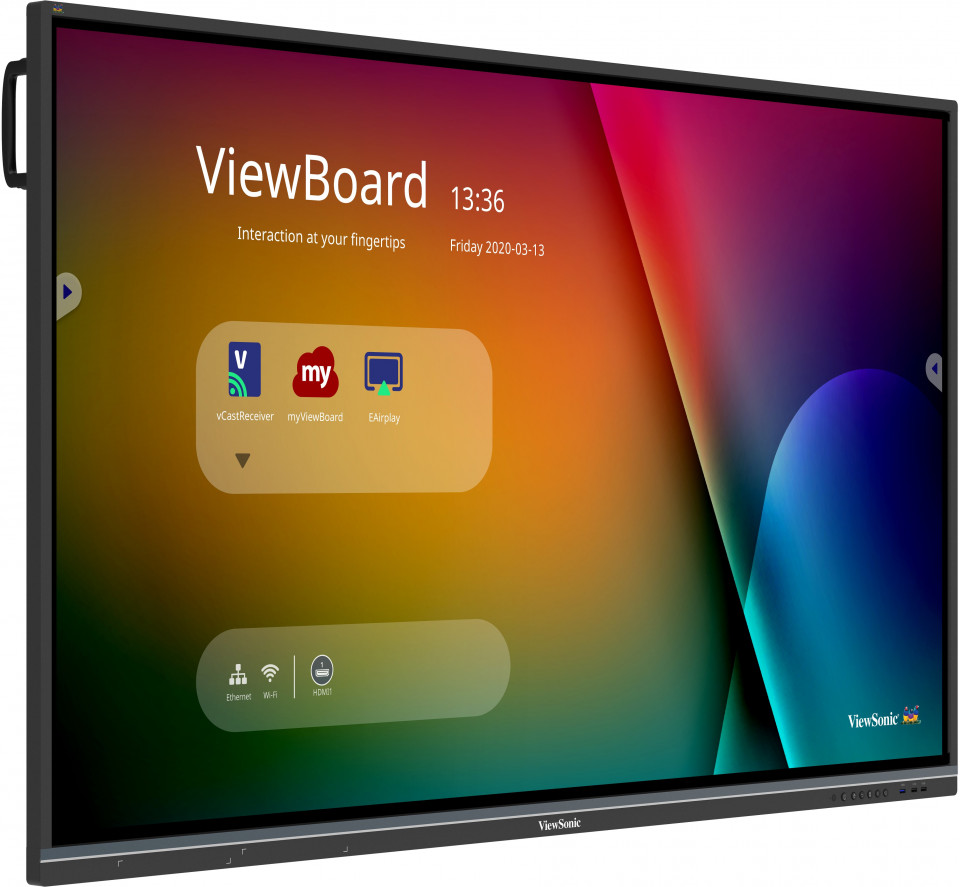

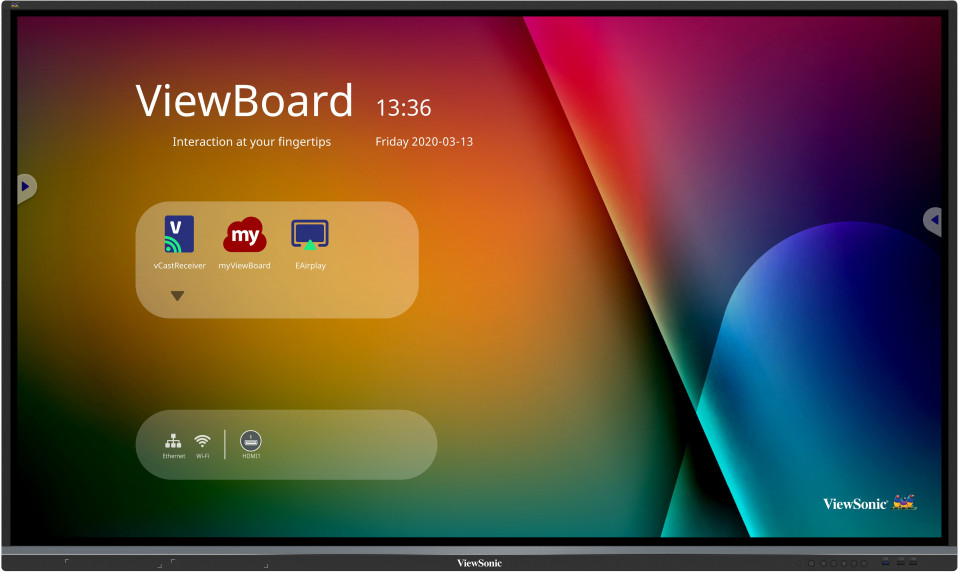

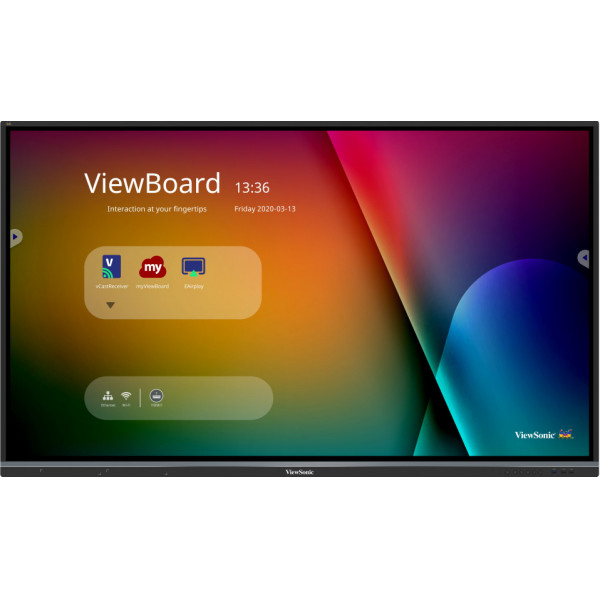

IFP7550-3
ViewBoard® 75" 4K Interactive Display
- Intuitive Interactive Interface and Eye-care Certified Display

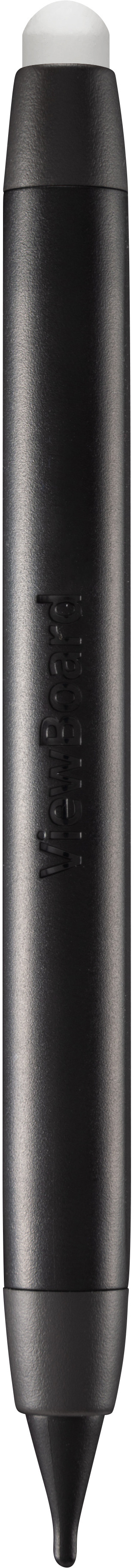

- Synchronous Writing Performance with Dual Pens
- Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
- Native Whiteboarding Tool with built-in myViewBoard® App
- Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
OVERVIEW
For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.SPECIFICATIONS
- DisplayPanel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1665.66 (H) x 944.73 (V) (74.5” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 9H
Anti-glare coating

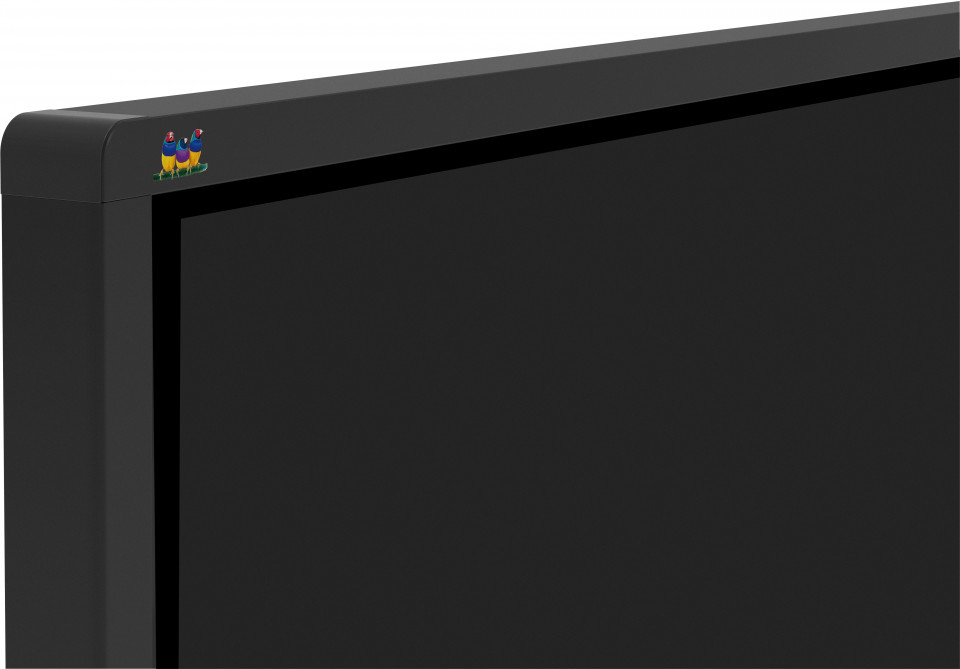

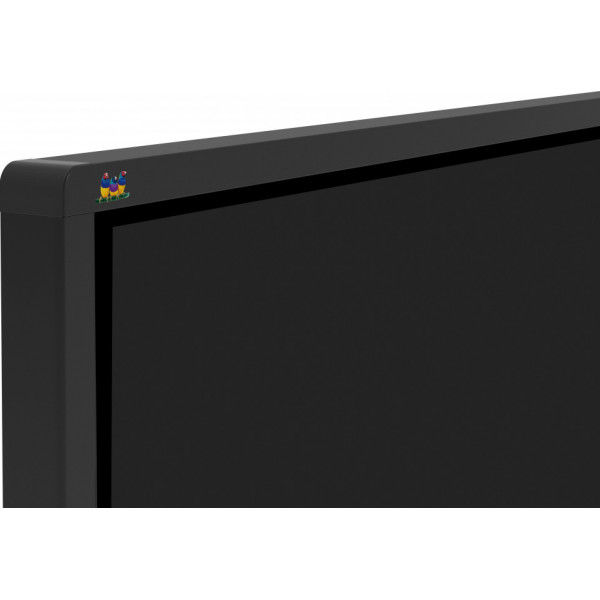

Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
RAM: 3GB DDR4
Storage: 32GB - TouchType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTAudio: x1 (Earphone out)
SPDIF: 1 (optical) - LANRJ45: x1

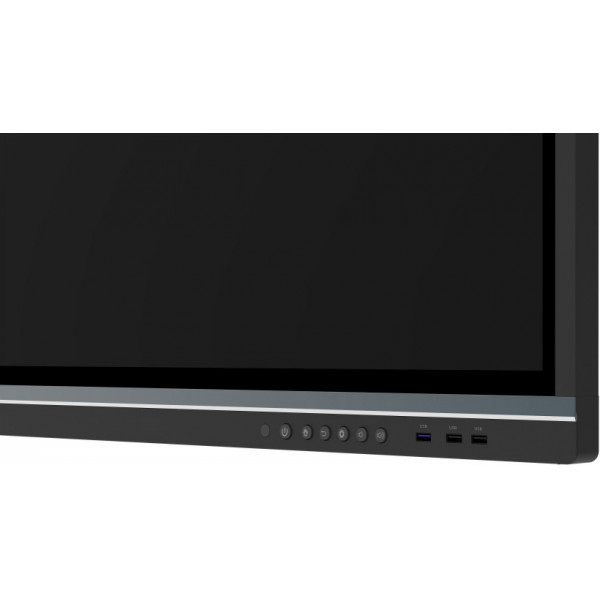

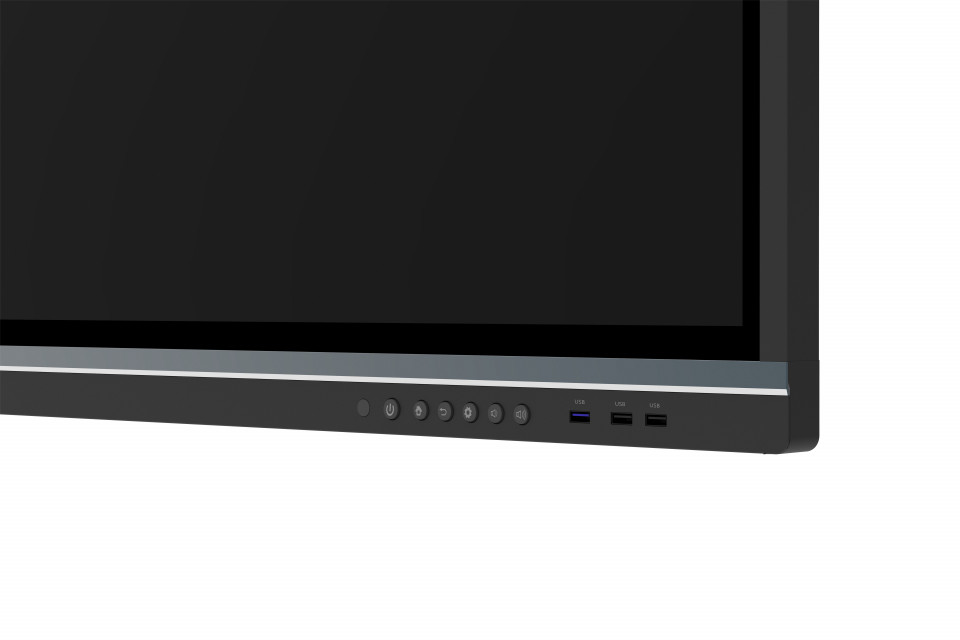

- USBType A: USB2.0: Front x2, Rear x1 (SmartPort™ for all)
USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
Type B: x2, for touch - SPEAKERS10W x 2 + 15W x 1 subwoofers
- Top Camera PlateYes
- COMPATIBILITYHDMI: 3840x2160
- Embedded OSAndroid 8
- Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) - Special FeaturesAll-in-one USB port: Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10M/100M/ for Android
10M/100M/1000M for slot-in PC - PowerVoltage: 100-240VAC +/- 10% Wide Range

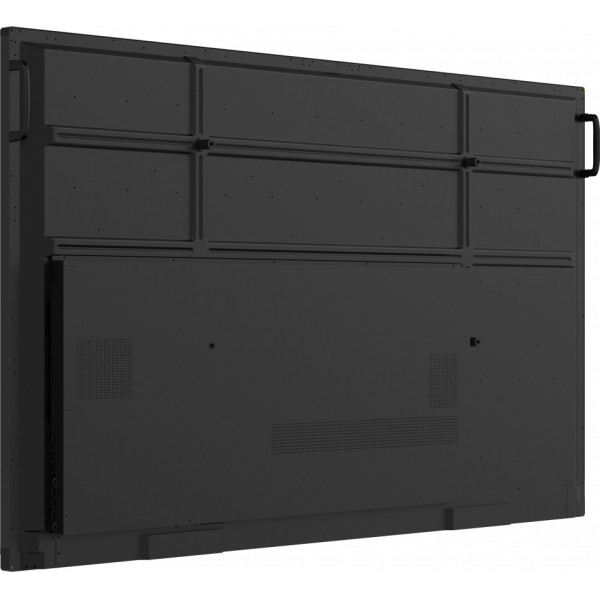

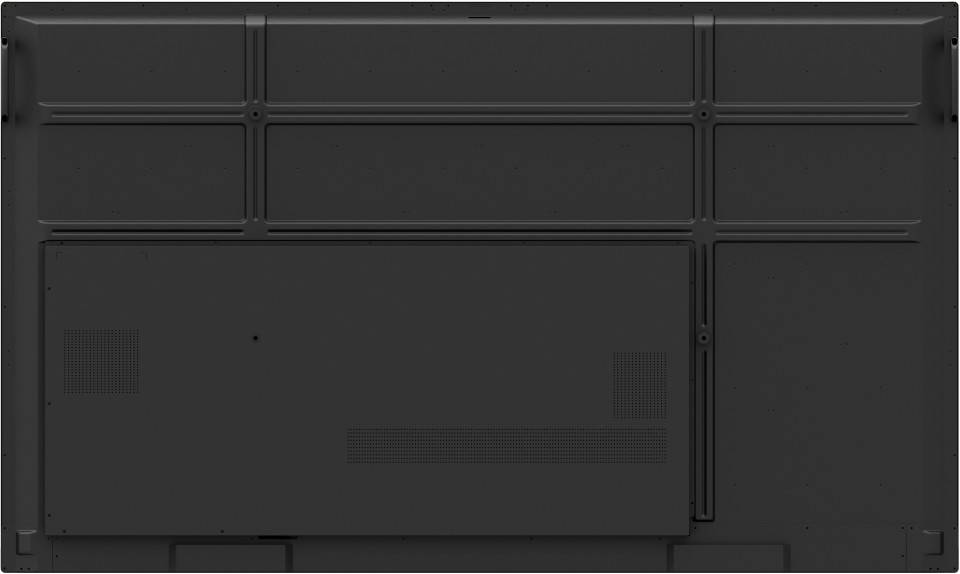

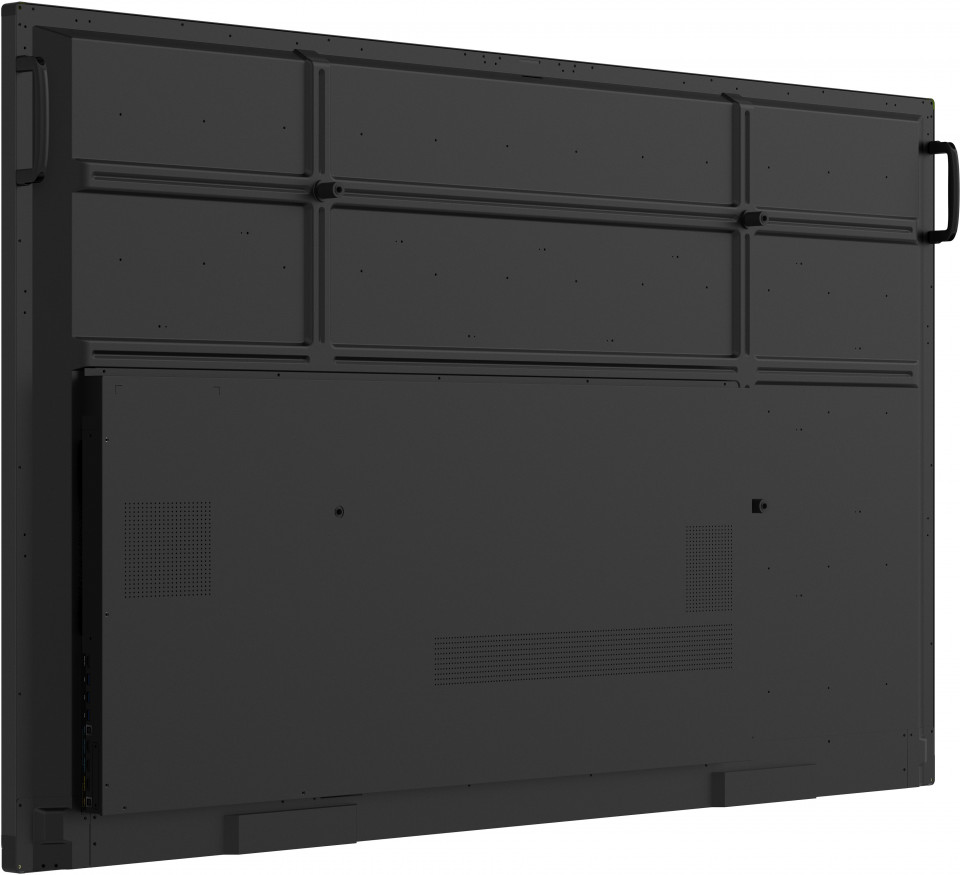

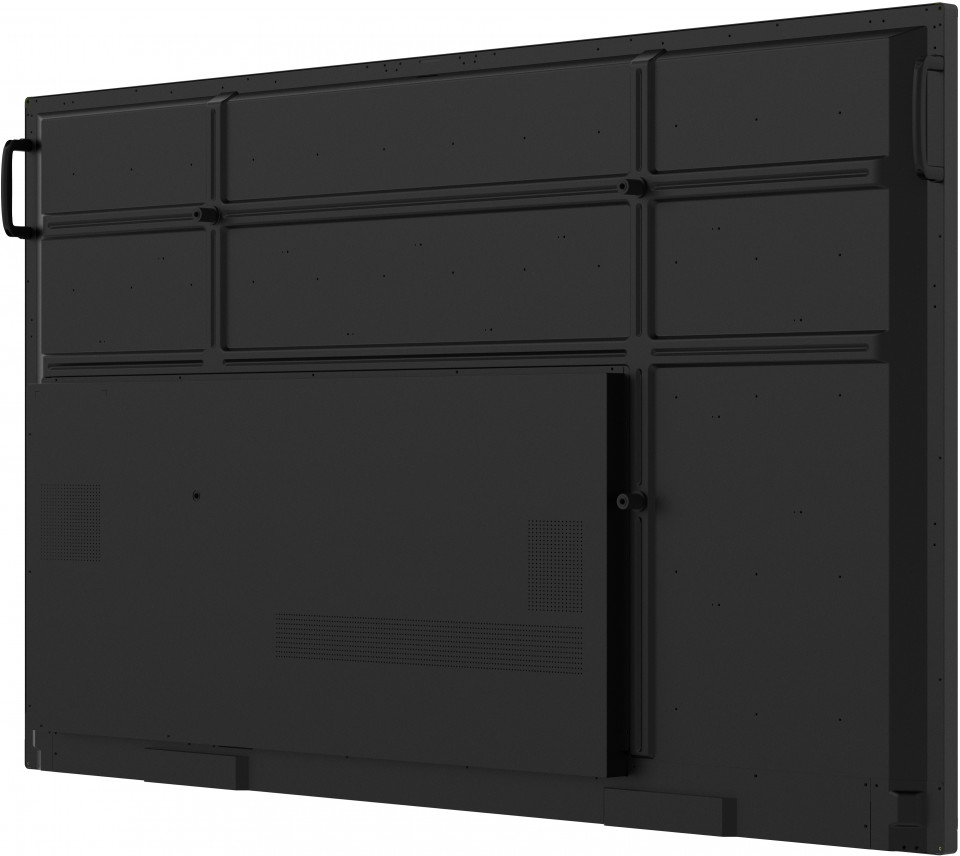

Consumption: On: 138W(typ.) / Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 800 x 400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 67.3 x 40.2 x 3.5 in / 1710 x 1020 x 90 mm
Packaging (inch / mm): 76.0 x 44.9 x 11.0 in / 1930 x 1140 x 280 mm - WEIGHTNet (lb / kg): 118.8 lb / 53.9 kg
Gross (lb / kg): 158.5 lb / 71.9 kg - REGULATIONScTUVus, FCC, ES8, EPEAT, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP, EAC, UKrSEPRO, RCM, BSMI
- PACKAGE CONTENTS1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M
- Compatible Slot-in PCVPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
COMPATIBLE WITH IFP7550-3

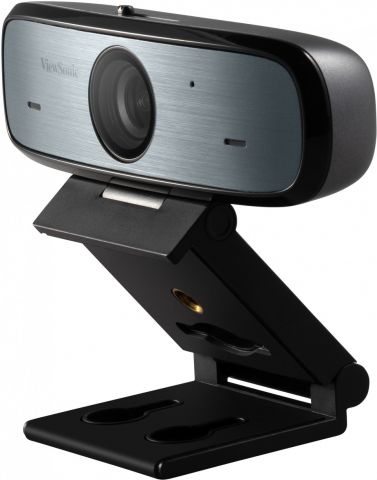

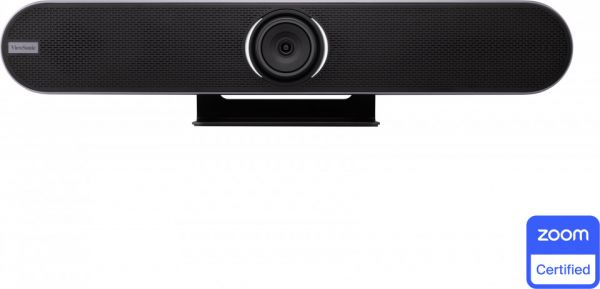

Full HD 1080p All-round Web Camera
