OVERVIEW

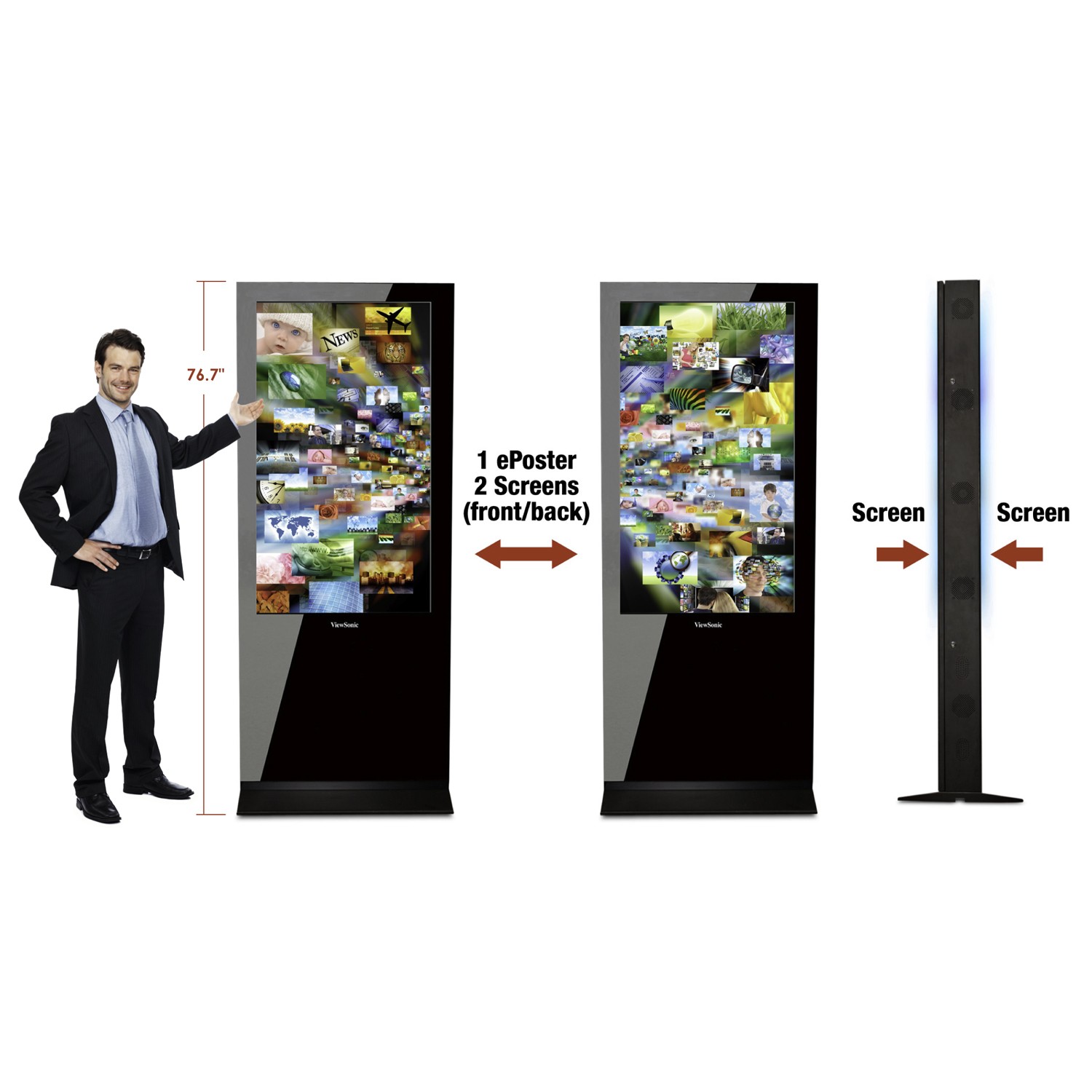

In-store digital signage is easy with ViewSonic’s new dual screen ePoster display solution. Vivid retail messaging is easy by connecting your PC or adding your network media player to the industry standard input connections: HDMI, VGA, YPbPr, USB or composite video (A/V). Each screen can be driven separately with its own content. ViewSonic’s ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover. Compatible ViewSonic media players are available in both X86 and RISC (Linux) configurations.Features
- Dual Screen - 55" Full HD resolution 1920x1080 electronic poster display
- 450 nits of brightness with 5000:1 contrast ratio
- Dual multiple display inputs - HDMI, VGA, YPbPr, A/V, USB
SPECIFICATIONS
- DISPLAYResolution: 1920x1080 pixel resolution
Display Size: Diagonal: 55" (139.7 cm)
Brightness: 450 cd/m2 (typ)
Contrast Ratio: 5000:1 (typ)
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 6.0ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10 - COMPATIBILITYPhoto Formats: JPEG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC ) - AUDIOSpeakers: 5W (x2)
- CONNECTORNetwork: Ethernet RJ-45 (10/100M)
USB: 2.0 (x1)
Card Reader: 2GB Compact Flash - POWERConsumption: 900W (max)
Power Save Mode: Off < 1W - OPERATING CONDITIONSTemperature: 32–104º F (0–50º C)
Humidity: 20–90% (non-condensing) - DIMENSIONS (WxHxD)Physical: 32.68" x 76.8" x 18.31" (830 x 1951 x 465 mm)
- WEIGHTNet: 352.7 lbs. (160 kg)
Gross: 396.8 lbs. (180 kg) - CONTENT MANAGEMENTSoftware: Signage Manager Express
Operating System: MS Windows - STORAGE ENVIRONNMENTTemperature: 32–104º F (0–50º C)
Humidity: 20–90% (non-condensing) - RegulationsFCC, ICES 003, CE
- PACKAGE CONTENTSePoster, power cord, remote control with batteries, key, Quick Start Guide, User Manual and Software on CD
