OVERVIEW
ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful video messaging on high definition digital posters. These sleek new displays feature versatile input connections for easy content uploading or adding your favorite media player. Information is disseminated through the ePoster’s video connectors via or media player or USB thumb drive. ViewSonic’s new ePoster products are available in various sizes and slim profiles fit in beautifully with their limited footprint. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.Features
- 450 nits of brightness with 5,000:1 contrast ratio
- 55" Full HD 1920x1080 display resolution
- Applications
- Retail Advertising
- Transportation
- Hospitality
- Education
- Audio
5w x 2 - Compatible with the ViewSonic NMP-560 media player (Optional)
Includes Signage Manager Express software - Easy loading of content through USB thumb drive
- Internal VESA mounting and power supply for adding media players
- Sleek tempered glass faceplate
- Versatile video inputs
(HDMI, VGA, YPbPr, USB)
SPECIFICATIONS
- DISPLAYResolution: 1920x1080 dots
Display Size: Diagonal: 55" (139.7 cm)
Brightness: 450 cd/m2 (typ)
Contrast Ratio: 5000:1 (typ)
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 6.0ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10 - COMPATIBILITYPhoto Formats: JPEG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC ) - AUDIOSpeakers: 5W (x2)

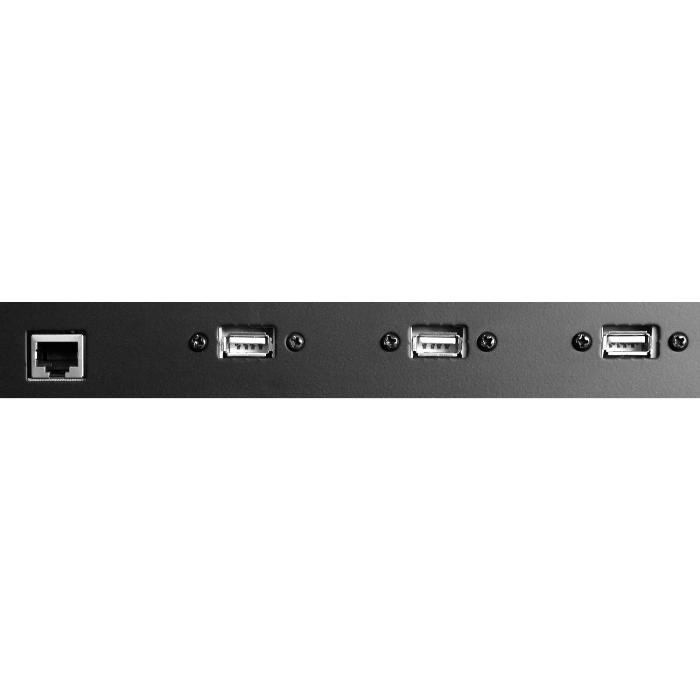

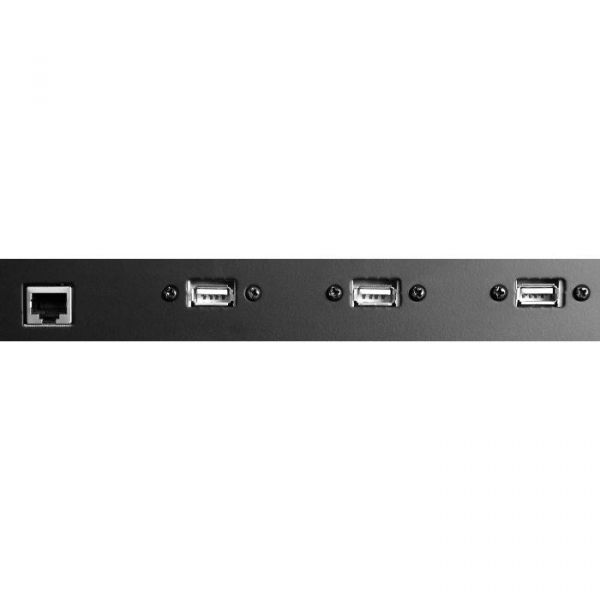

- CONNECTORNetwork: Ethernet RJ-45 (10/100M)
USB: 2.0 (x1)
Card Reader: 2GB Compact Flash - POWERConsumption: Max 450W
Power Save Mode: Off < 1W - OPERATING CONDITIONSTemperature: 32–104º F (0–50º C)
Humidity: 20–90% (non-condensing) - DIMENSIONS (WxHxD)Physical: 32.68" x 78.7" x 17.72" (830mm x 2000mm x 450mm)
- WEIGHTNet: 264.5 lbs. (120 kg)
Gross: 297.6 lbs. (135 kg) - CONTENT MANAGEMENTSoftware: Signage Manager Express
Operating System: MS Windows - STORAGE ENVIRONNMENTTemperature: -4–140º F (-20–40º C)
Humidity: 10–90% (non-condensing) - RegulationsFCC, ICES 003, CE

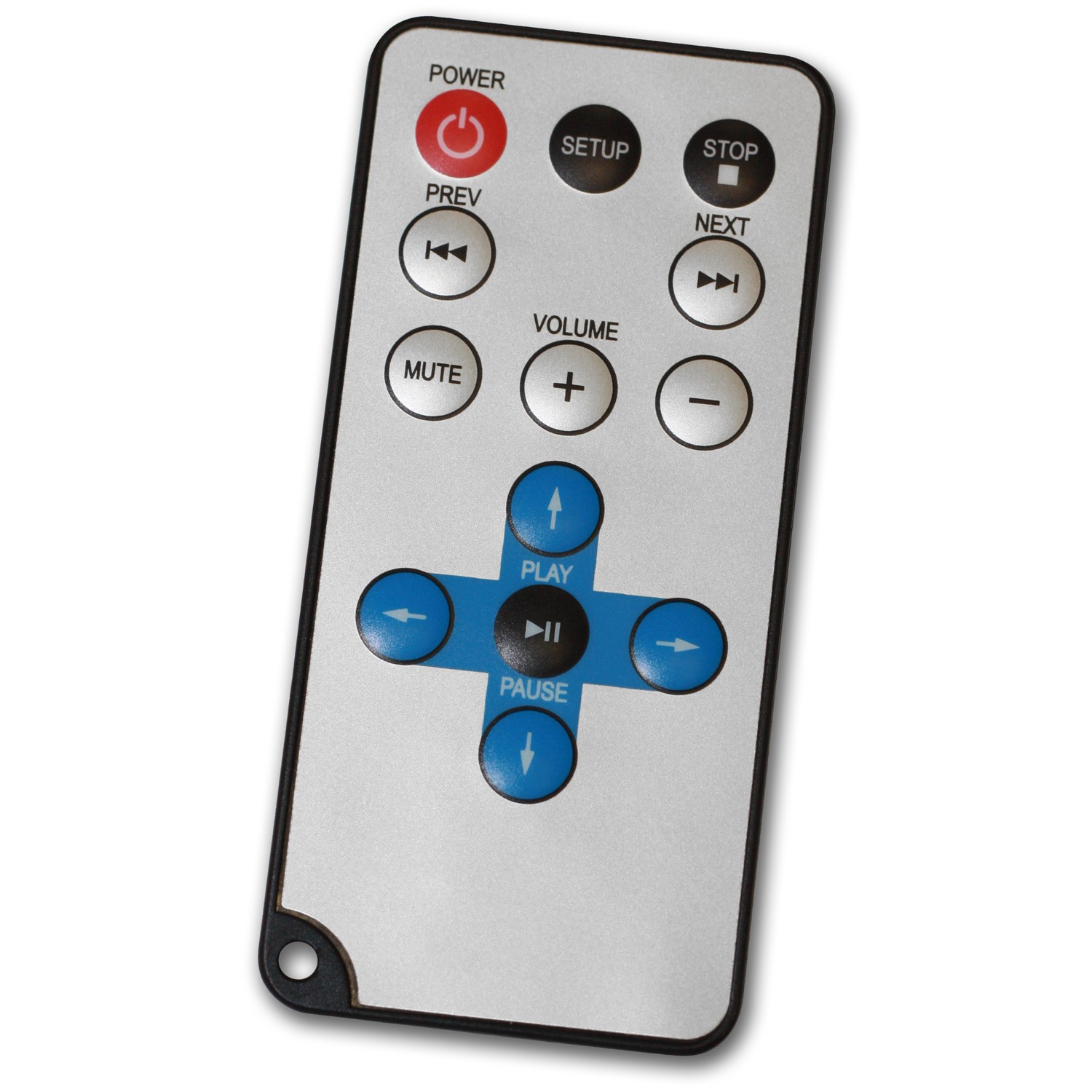

- PACKAGE CONTENTSePoster, power cord, remote control with batteries, key, Quick Start Guide, User Manual and Software on CD

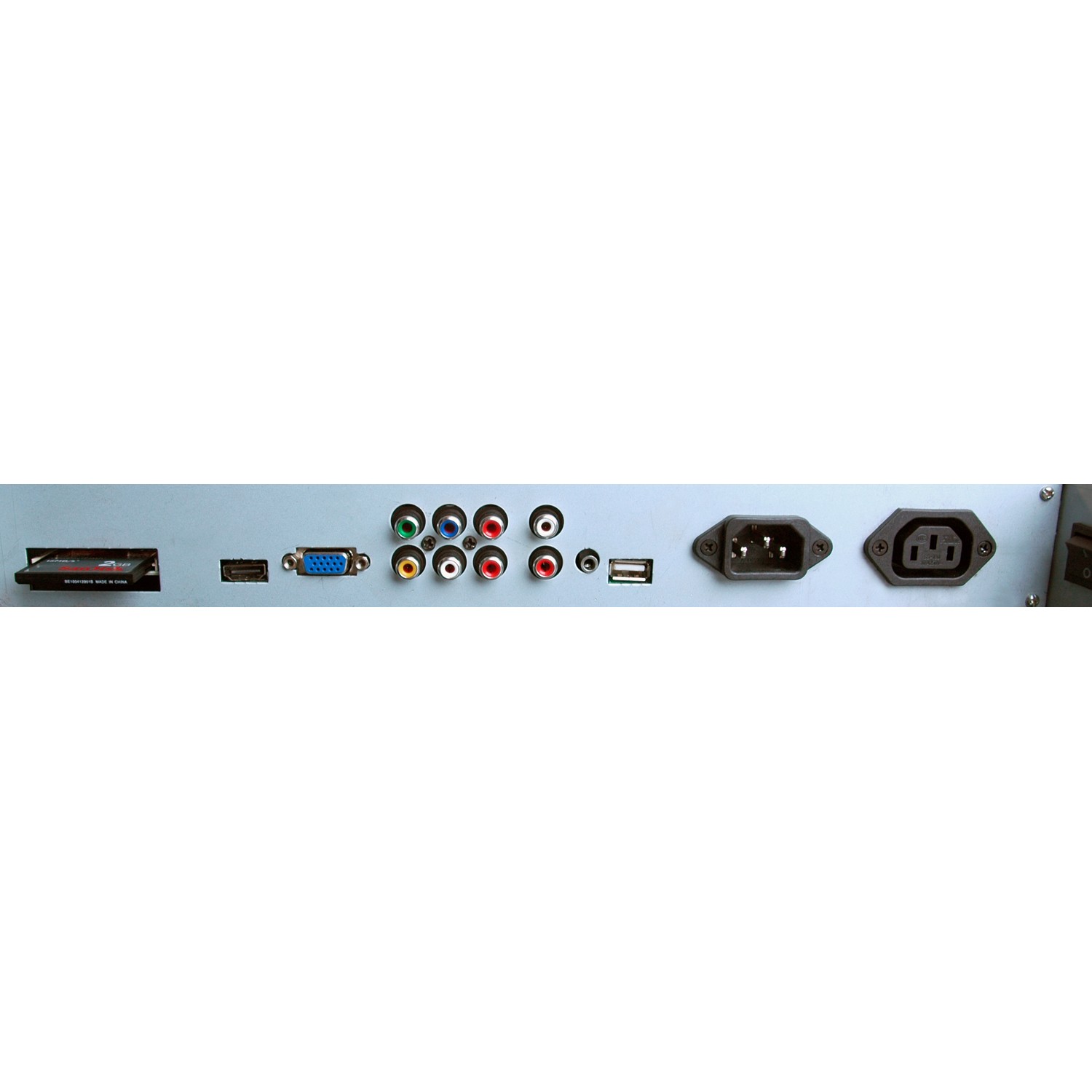

- CONNECTORSHDMI, VGA, YPbPr, USB, A/V, RJ45 Pigtail
