OVERVIEW

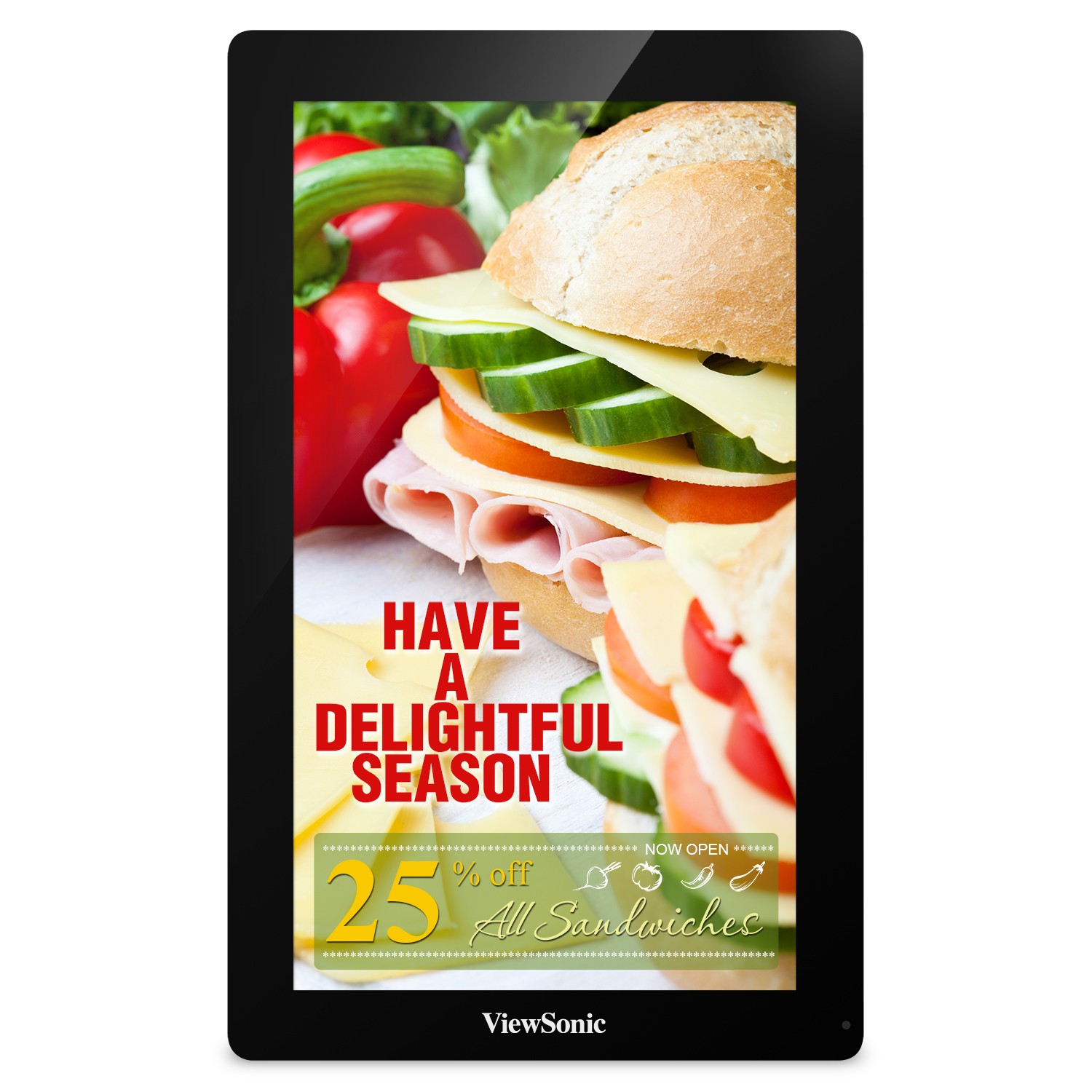

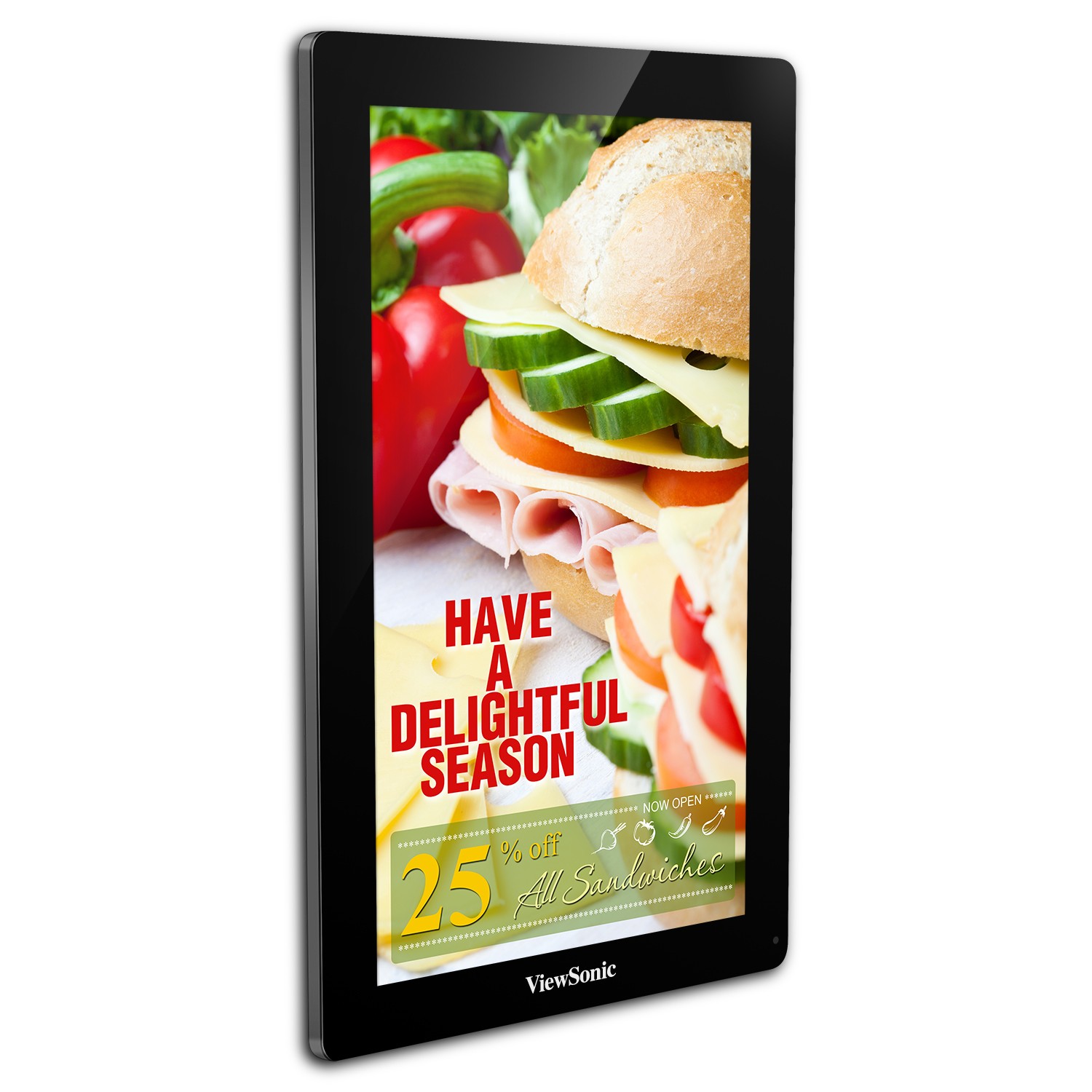

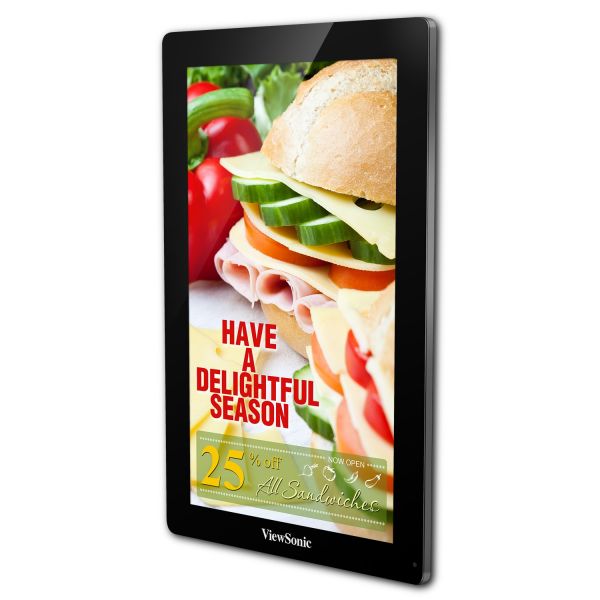

Impact ful in-store digital signage is easy with ViewSonic's new EP3203r—an all-in-one 32" digital ePoster. The EP3203r can be easily configured for vivid retail messaging via its internal media player, or via connection to your favorite external media player. In addition, multimedia JPEG, music, or video content can be uploaded to the EP3203r using a USB thumb drive, or over a network. With a 200x400 mounting pattern on the back panel, the flexible EP3203r can be mounted in portrait or landscape orientation, and features a full edge-to-edge tempered glass faceplate. This display is ideal in high-visibility locations such as retail settings, banks and universities.SPECIFICATIONS
- DisplayPanel Size: 31.5"
Type/Tech: TFT LCD Module with LED Backlight
Display Area (mm): 697.68 (H) x 392.26 (V)
Aspect Ratio: 9:16
Native Resolution: 768x1366
Colors: 16.7M
Brightness: 320 nits (typ.)
Contrast Ratio: 4000:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours Typ.
Surface Treatment: AG coating (3H)
Orientation: Portrait

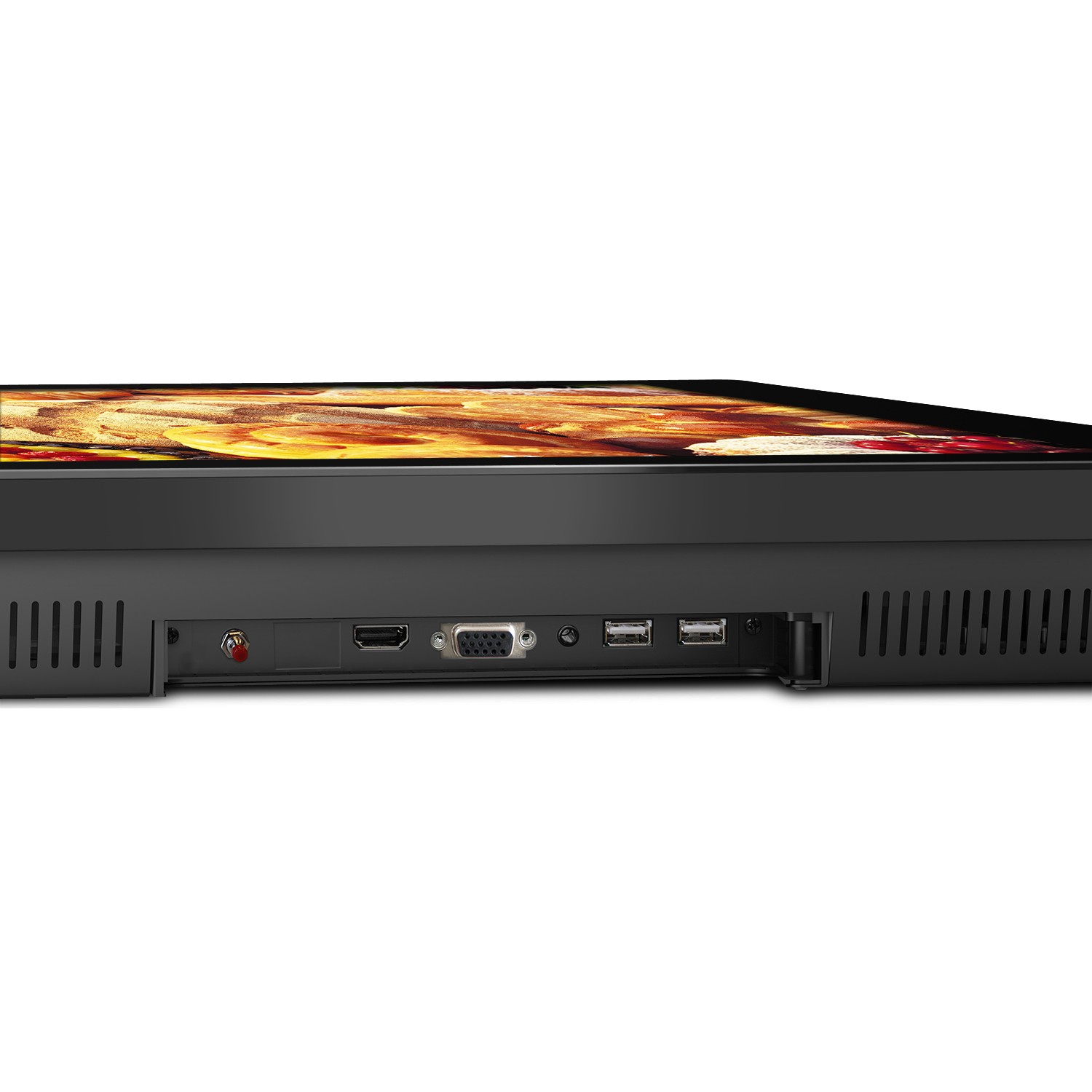

- INPUTHDMI: x1
RGB / VGA: x1
Audio: x1 PC audio(3.5 mm) - LANRJ45: x1
- USBType A: x2
- SPEAKERS2W x 2
- COMPATIBILITYRGB PC/HDMI PC: Refer to timing table
HDMI: Refer to timing table - CONTROLSMultimedia: JPG, BMP, PNG, MPG, AVI, WMV, MOV, MP3, GIF, JPEG, MKV, FLV, RM, RMVB, TS, TP
- Bundle SoftwareePoster Manager Express Plus
- PowerVoltage: 100-240VAC +/- 10% 50/60Hz Wide Range
Consumption: 100W (max.)

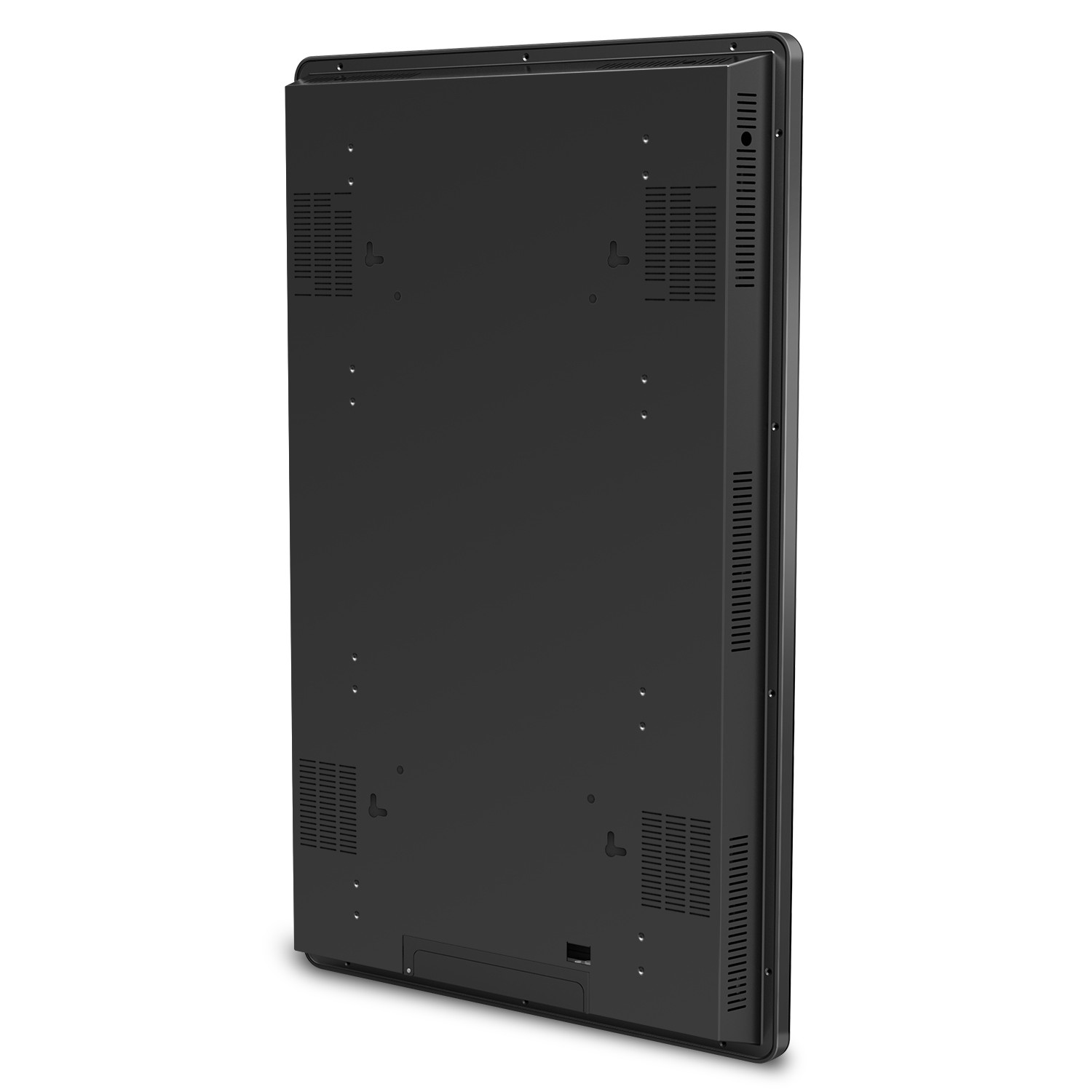

< 0.5 W ("Off") - ERGONOMICSWall Mount (VESA® ): 200x400
- OPERATING CONDITIONSTemperature (º C): 0°C to 50°C
Humidity: 20% ~ 90% non-condensing - DIMENSIONS
(W x H x D)Physical (inch / mm): 31.87 x 19.67 x 1.57 / 809.6 x 499.6 x 40
Packaging (inch / mm): 37.8 x 24.68 x 5.87 / 960 x 627 x 149 - WEIGHTNet (lb / kg): 33.01 / 15
Gross (lb / kg): 39.68 / 18 - REGULATIONSFCC, UL, cUL, RoHS Green BOM List & RoHS DoC

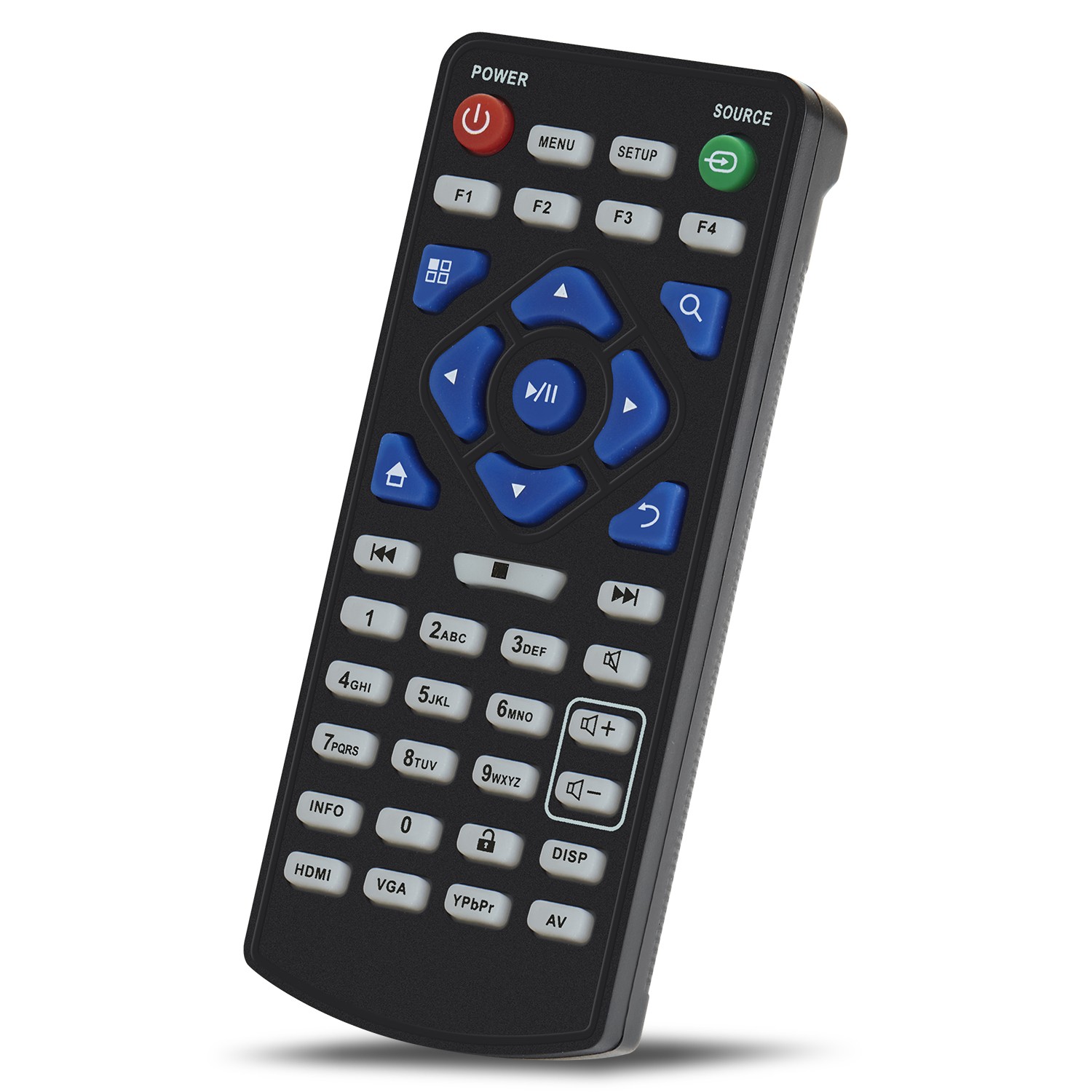

- PACKAGE CONTENTS1. EP3203r ePoster 2. power cable 3. remote control with batteries 4. Quick Start Guide 5. ViewSonic Wizard CD (with user guide)
*Actual content may differ from market to market
