OVERVIEW

The ViewSonic CDX5554 is a 55’’ (54.6’’ viewable) commercial display with an ultra-narrow bezel optimized for multi-panel video wall applications. With an edge-to-edge bezel width of only 3.5mm between combined displays, and 10x10 installation via DisplayPort or DVI daisy-chain, the CDX5554 delivers nearly seamless, high-impact video walls for public, retail, and transportation settings. With Full HD 1080p resolution, 700-nit brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX5554 delivers sharp, vivid images with incredible sound for superior multimedia performance. What’s more, 3840x2160 resolution is supported in 2x2 daisy-chain configurations for stunning 4K imaging. Free bundled vController and vConfigurator software provides easy maintenance and intuitive interfaces for remote management via a PC or media server. Versatile connectivity options include HDMI, DisplayPort, DVI, CVBS, YPbPr, VGA, RJ45, and RS232 with IR pass-through. A USB port provides simple multimedia playback, while an integrated Intel Open Pluggable Specification (OPS) slot provides easy connectivity to external PCs as well.

Ultra-narrow Bezel

With a 3.5mm edge-to-edge bezel between combined displays, this commercial display creates stunning, near-seamless images when used in large video wall configurations.

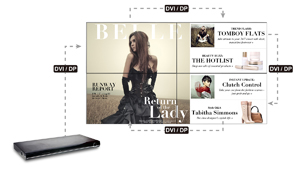

10x10 Daisy-chain Support with DisplayPort or DVI

With integrated DisplayPort and DVI outputs, this display supports up to a 10x10 daisy-chain setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.

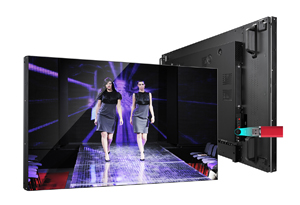

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

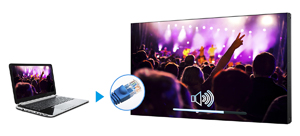

LAN Control for Remote Content and Display Settings

The CDX5554 has an integrated RJ45 connection that allows you to remotely transfer multimedia data and manage display content from a PC or laptop which brings great convenience.

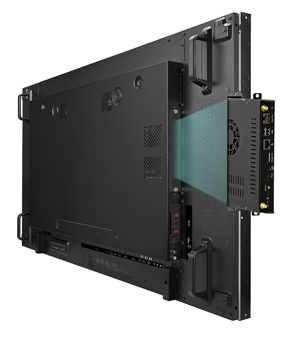

OPS Slot Compatibility

Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.

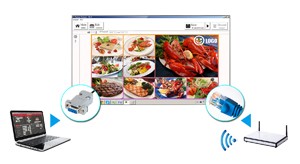

Free Bundled vController Software

Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

RS232 In/Out with IR Pass-through

RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.

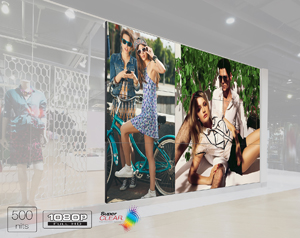

Superior Screen Performance

Featuring a 1920 x 1080 full HD resolution and 700-nit brightness, the CDX5554 provides superior screen performance for in-door environments. The display also features wide viewing angles, delivering accurate, vivid colors and consistent color performance with no distortion or fading.


4K Video Support in 2x2 Daisy-chain Configurations

A 3840x2160 signal can be supported across two daisy-chained displays, allowing users to experience incredible 4K video on a 2x2 video wall.

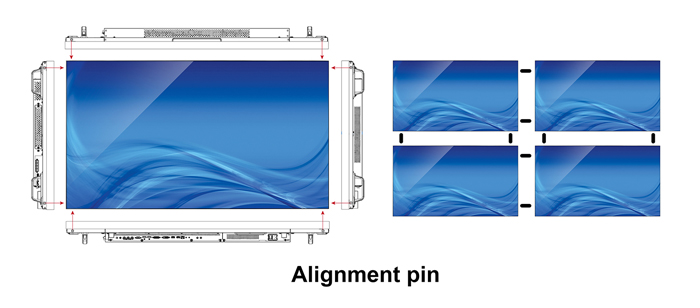

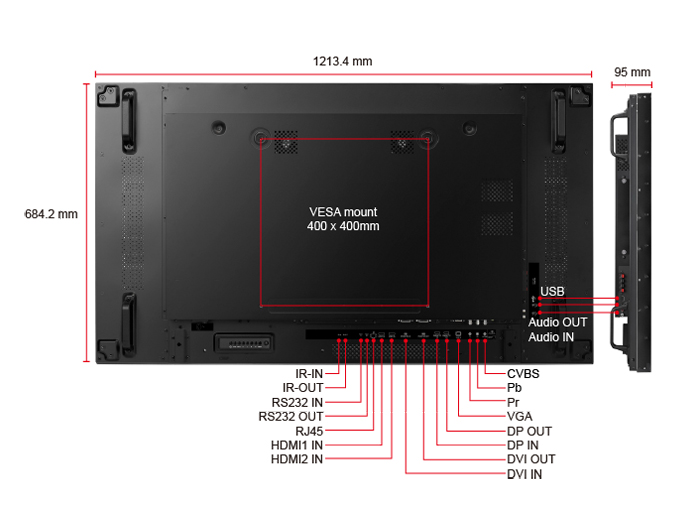

I/O and VESA mount

This display can be VESA-mounted and supports alignment pin setup, for easy installation as well as flexible connectivity.

SPECIFICATIONS


  • Display
    Panel Size: 55" (54.64")
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1209.6(H) x 680.4 (V) (54.64” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    Colors: 1.06 Billion
    Brightness: 700 nits (typ.)
    Contrast Ratio: 1400:1 Typ.
    Response Time: 12ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight: LED Backlight
    Backlight Life: 60,000 Hours Typ.
    Surface Treatment: AG coating (3H)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x2 (1.4a)
    RGB / VGA: x1
    DisplayPort: x1 (1.2)
    DVI: x1
    Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1 (Share with component Y)
    YPbPr: x1
    RS232: x1
    IR Pass Thru: x1
    OPS: x1
