OVERVIEW
The ViewSonic® ultra narrow CDX5550-L Full HD LED commercial display is engineered for commercial video wall installations. This energy-saving LED backlight display delivers stunning brightness and contrast for a beautiful, crisp picture, with 8ms response time to ensure smooth video playback. One of the few displays this large with support for Intel OPS, the CDX5550-L offers convenient media player integration for scalable, modular solutions, plus multiple digital and analog connectivity options. A slim bezel, 5x5 tiling and input loop-through make this the perfect display for video wall applications with even a single media player.SPECIFICATIONS
- LCDType: 55" (54.6" viewable) color TFT active matrix, wide LED
Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
Optimum Resolution: 1920x1080, 0.485mm dot pitch
Contrast Ratio: 3500:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Brightness: 700 cd/m2 (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - INPUTTV: 480i, 480p, 720p, 1080i, 1080p
Video Input: HDMI, DVI, component, VGA, S-Video, CVBS (BNC)
Video Output: VGA, component
Control Input/Output: RS-232 / RJ45 - AUDIOSpeakers: Internal 10-watt (x2) / 8 ohm
Amplifier: 10-watt (x2) / 8 ohm

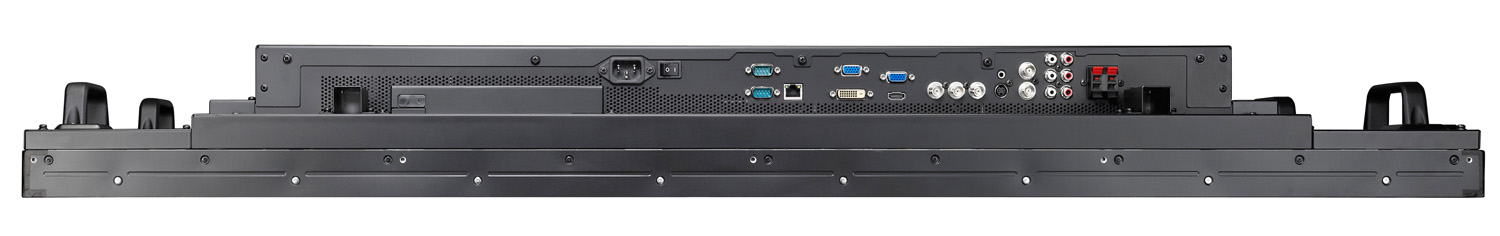

- CONNECTORAnalog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI
Power: 3-pin plug - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSInput: VGA, DVI, HDMI, YPbPr
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect - OPERATING CONDITIONSHumidity: 10–90% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 32–95ºF (0–35ºC) - DIMENSIONS (WxHxD)Physical Without Stand: 47.9 x 27.0 x 5.0 in. / 1259.3 x 686.1 x 128.1 mm
Physical With Stand: 47.9 x 29.1 x 15.8 in. / 1259.3 x 737.8 x 400 mm - WEIGHTGross: 94.8 lb. / 43.0 kg
Net Without Stand: 79.4 lb. / 36.0 kg
Net With Stand: 84.2 lb. / 38.2 kg - RegulationsFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- Wall MountVESA 400mm x 400mm
- PACKAGE CONTENTSCDX5550-L LED Display, power cable, remote control with batteries, User Guide, Quick Start Guide
