OVERVIEW

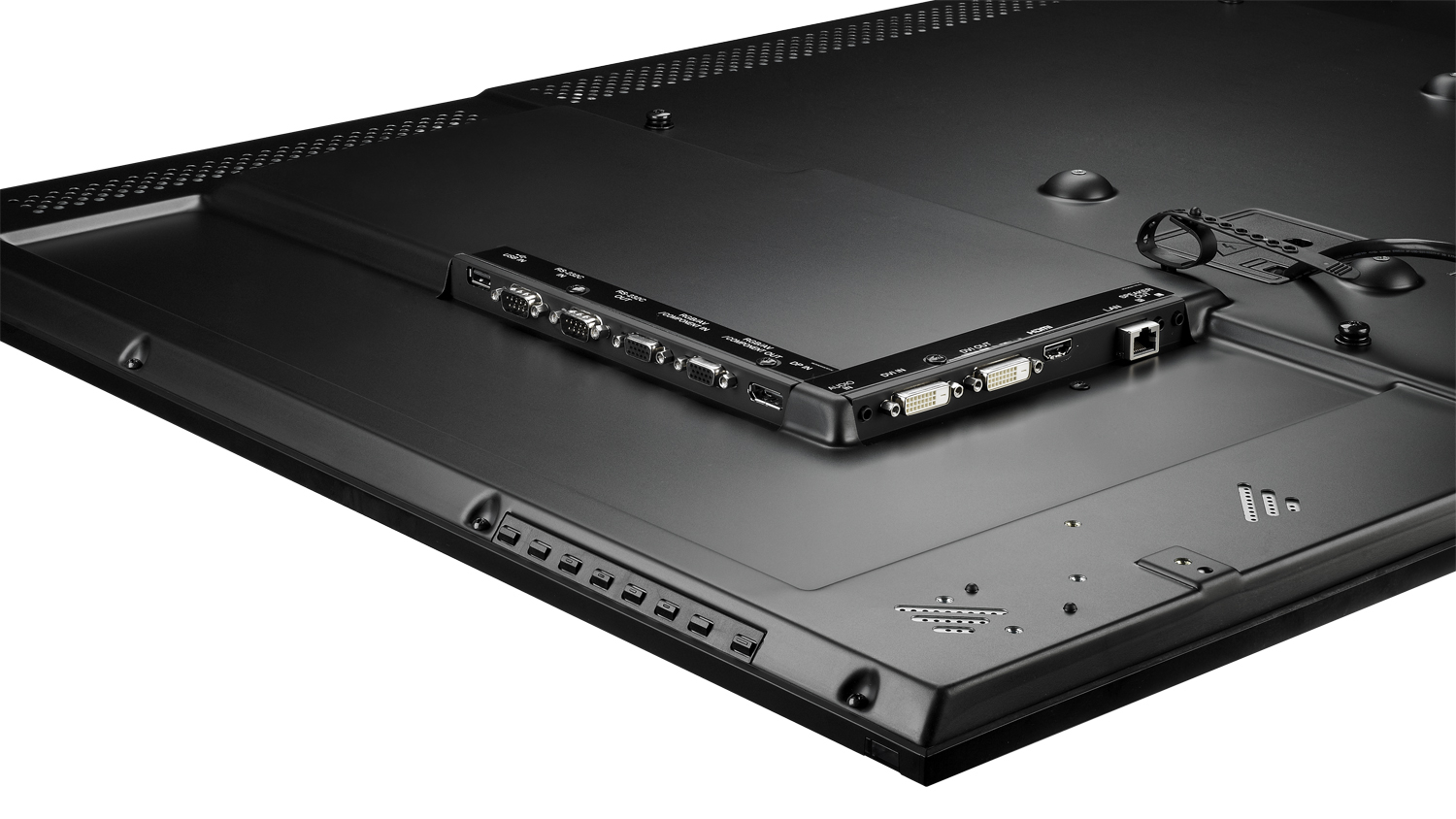

The ViewSonic® CDP4737-L commercial display features Full HD 1920x1080p IPS panel technology, fast 120Hz response time and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 28mm bezel width makes the CDP4737-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5x5 tiling for video walls and VGA and DVI loop through support.Key Features
- 1920x1080 resolution with 120Hz frame rate
- Energy saving LED backlight
- Built in media player supports movies, pictures, music
- Video wall capable – up to 5x5
- Daisy chain compatible – up to 9 units
SPECIFICATIONS
- LCDType: 47" color TFT active matrix, wide LED
Display Area: 40.9" horizontal x 23" vertical; 47" diagonal
Optimum Resolution: 1920 x 1080, 0.514mm dot pitch
Contrast Ratio: 1300:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Response Time: 12ms
Light Source: Long life, 50,000 hrs. (typ)
Brightness: 450 cd/m2 (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H)
Dynamic Contrast Ratio: 50,000:1 - INPUTVideo Input: HDMI, DVI, component, VGA, DP (Display Port)
Video Output: VGA, component, DVI (Loop Through)
Control Input/Output: RS-232 / RJ45 - AUDIOAmplifier: 10w / 8 ohm x 2
- CONNECTORAnalog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI, DP, RGB / A/V, Component
Power: 3-pin plug - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 120W (typ) - CONTROLSInput: VGA, DVI, HDMI, YPbPr, DP
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 41–95ºF (5–35ºC) - DIMENSIONS (WxHxD)Physical Without Stand: 43.5" x 25.5" x 1.5" (W x H x D) (1105mm x 646.4mm x 37.4mm)
- RegulationsFCC, ICES003, UL, cUL, CE, CB, RoHS, PSB, C-Tick, BSMI, GOST-R

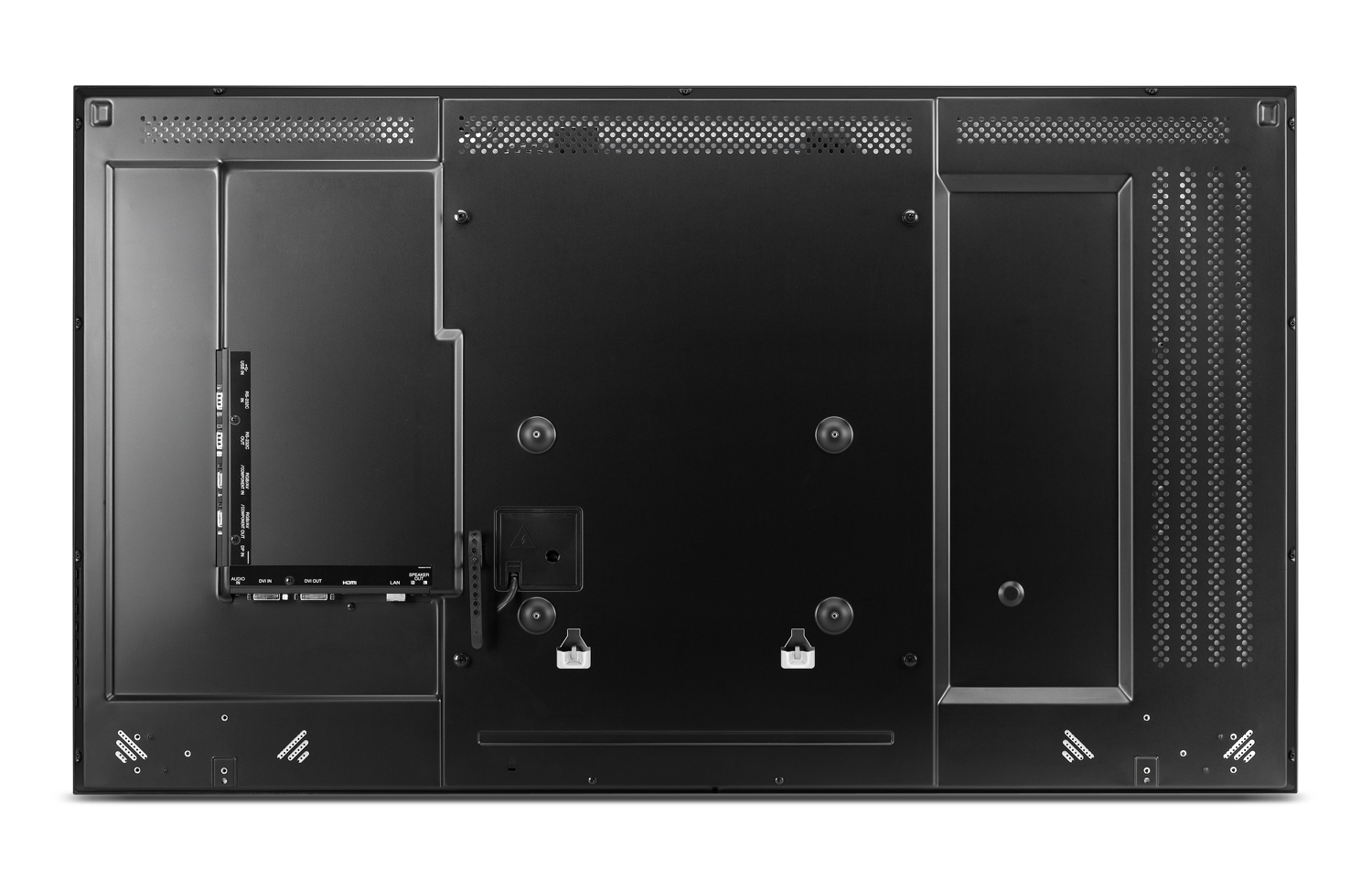

- Wall MountVESA 400mm x 400mm
