OVERVIEW

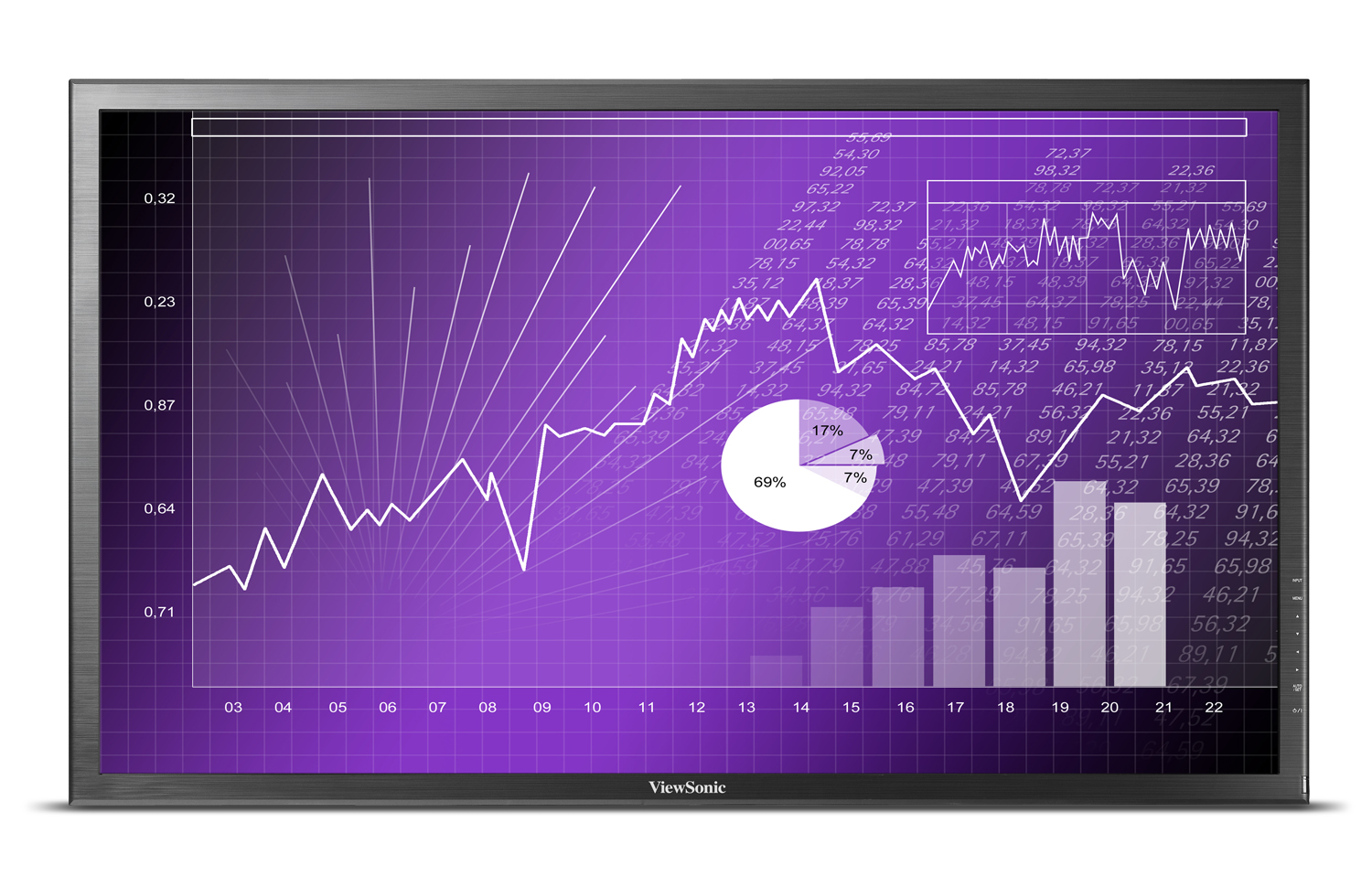

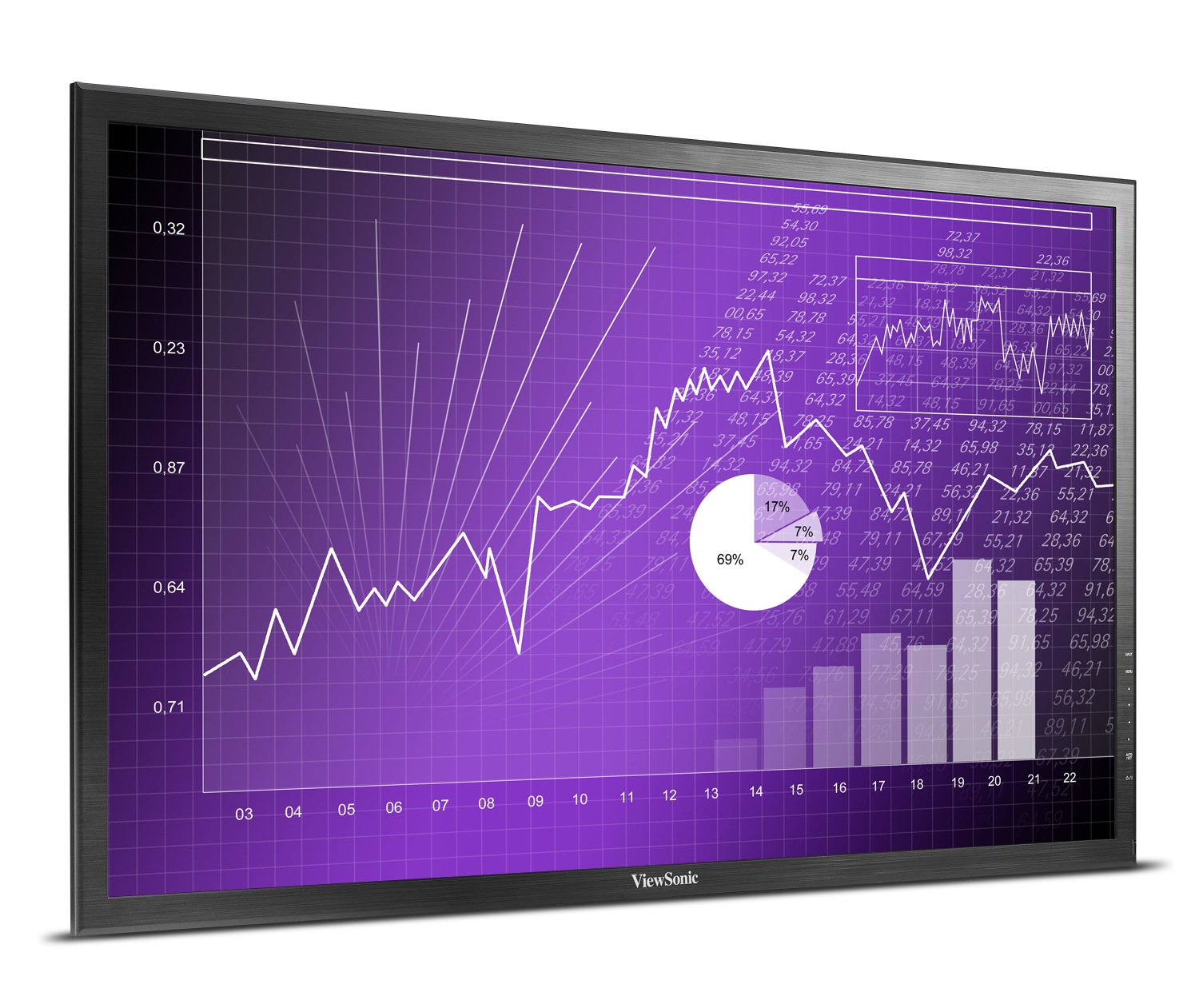

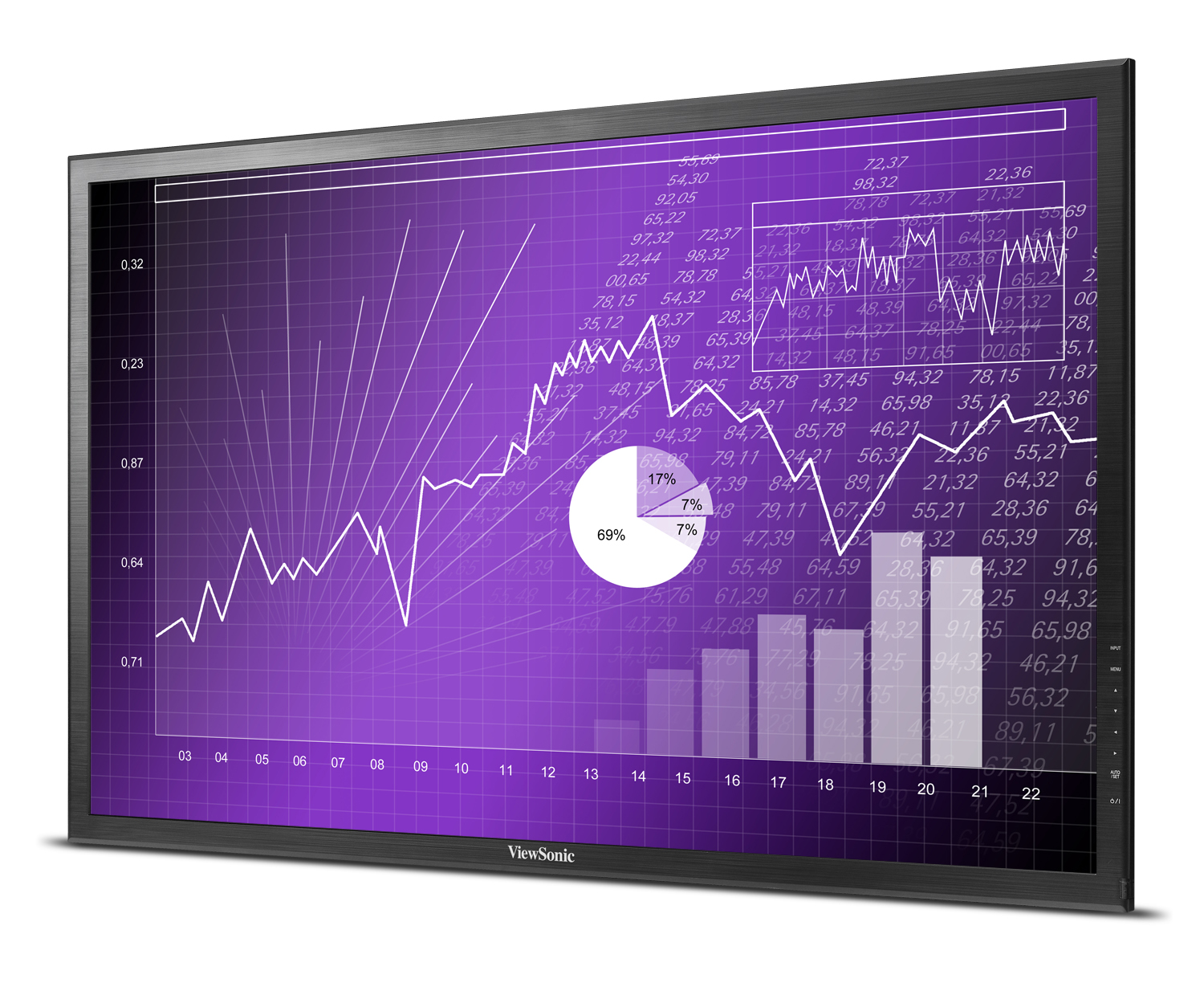

The ViewSonic® CDP4237-L commercial display features Full HD 1920x1080p IPS panel technology, fast 120Hz response, and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 27.6mm bezel width makes the CDP4237-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5x5 tiling for video walls and VGA and DVI loop through support.
SPECIFICATIONS
- LCDType: 42" color TFT active matrix, wide LED
Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Resolution: 1920x1080, 0.485mm dot pitch
Contrast Ratio: 1300:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Response Time: 12ms
Brightness: 450 cd/m2 (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H)
Dynamic Contrast Ratio: 50,000:1 - INPUTVideo Input: HDMI, DVI, component, VGA, DP (Display Port)
Video Output: VGA, component, DVI (Loop Through)
Control Input/Output: RS-232/RJ45 - AUDIOAmplifier: 10w / 8 ohm x 2

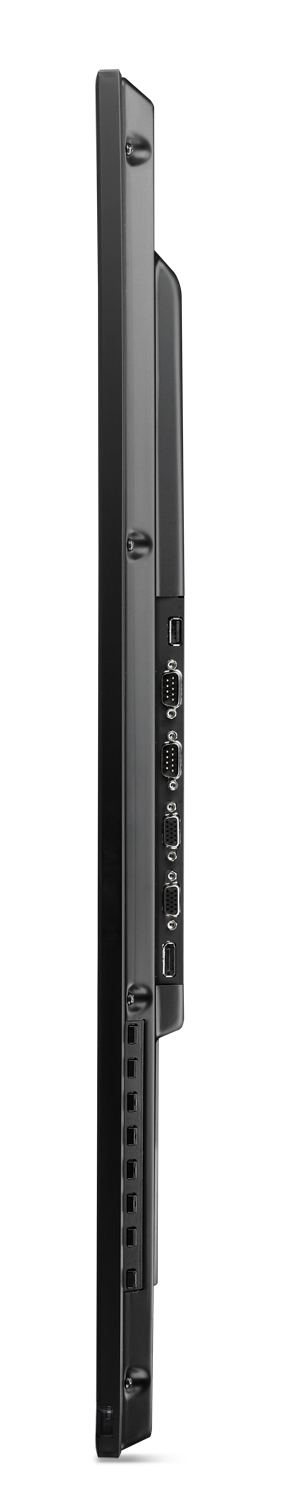

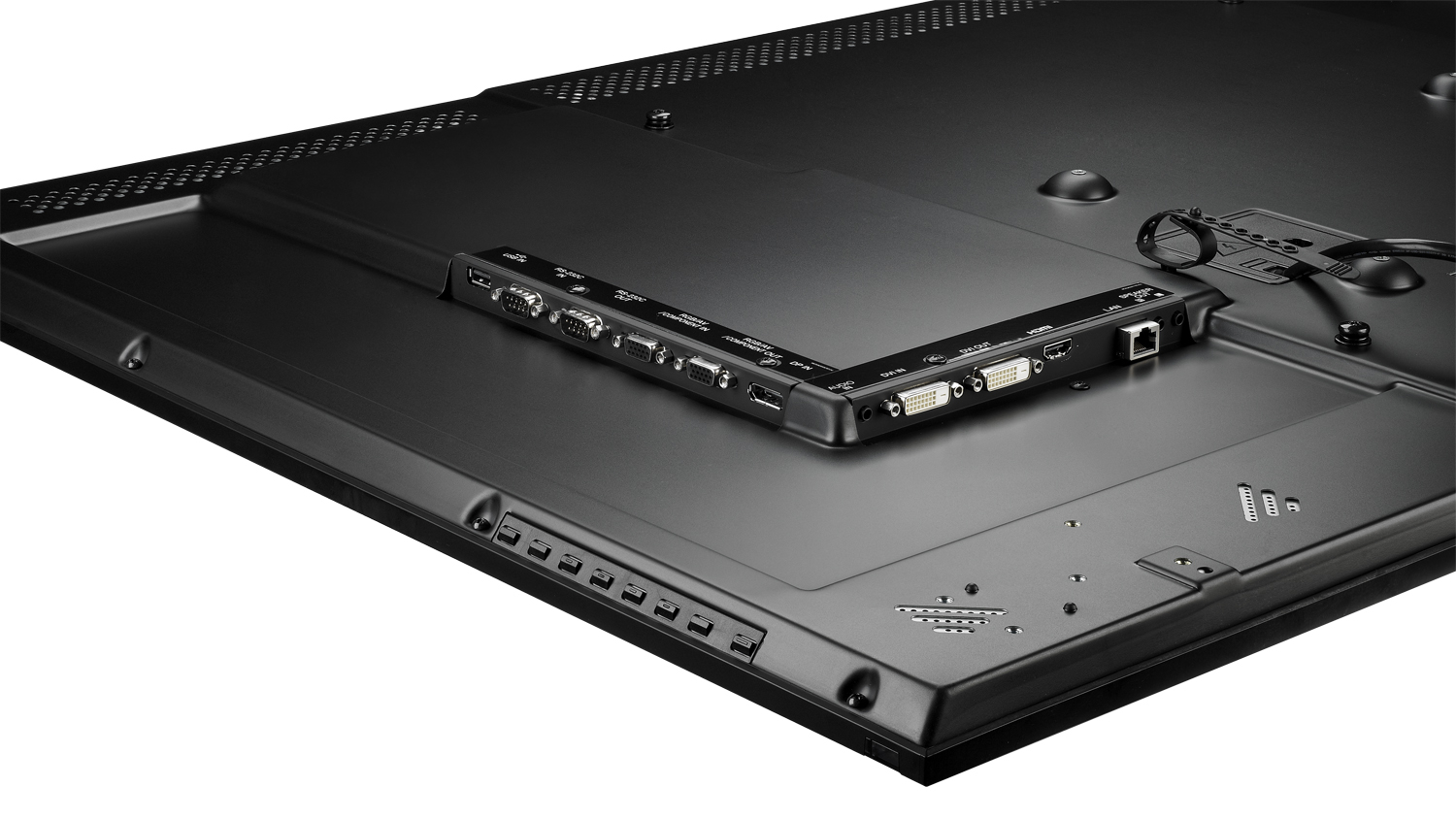

- CONNECTORAnalog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI, DP, RGB / A/V, Component
Power: 3-pin plug - POWERVoltage: AC 100–240V (universal), 50–60Hz
- CONTROLSInput: VGA, DVI, HDMI, YPbPr, DP
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 41–95ºF (5–35ºC) - DIMENSIONS (WxHxD)Physical Without Stand: 39" x 23" x 1.5" (W x H x D) (991.7mm x 584.3mm x 37.5mm)
- WEIGHTGross: 34.8 lb. (15.8 kg)
Net Without Stand: 27.8 lb. (12.6 kg) - RegulationsFCC, ICES003, UL, cUL, CE, CB, PSB/C-Tick, GOST-R

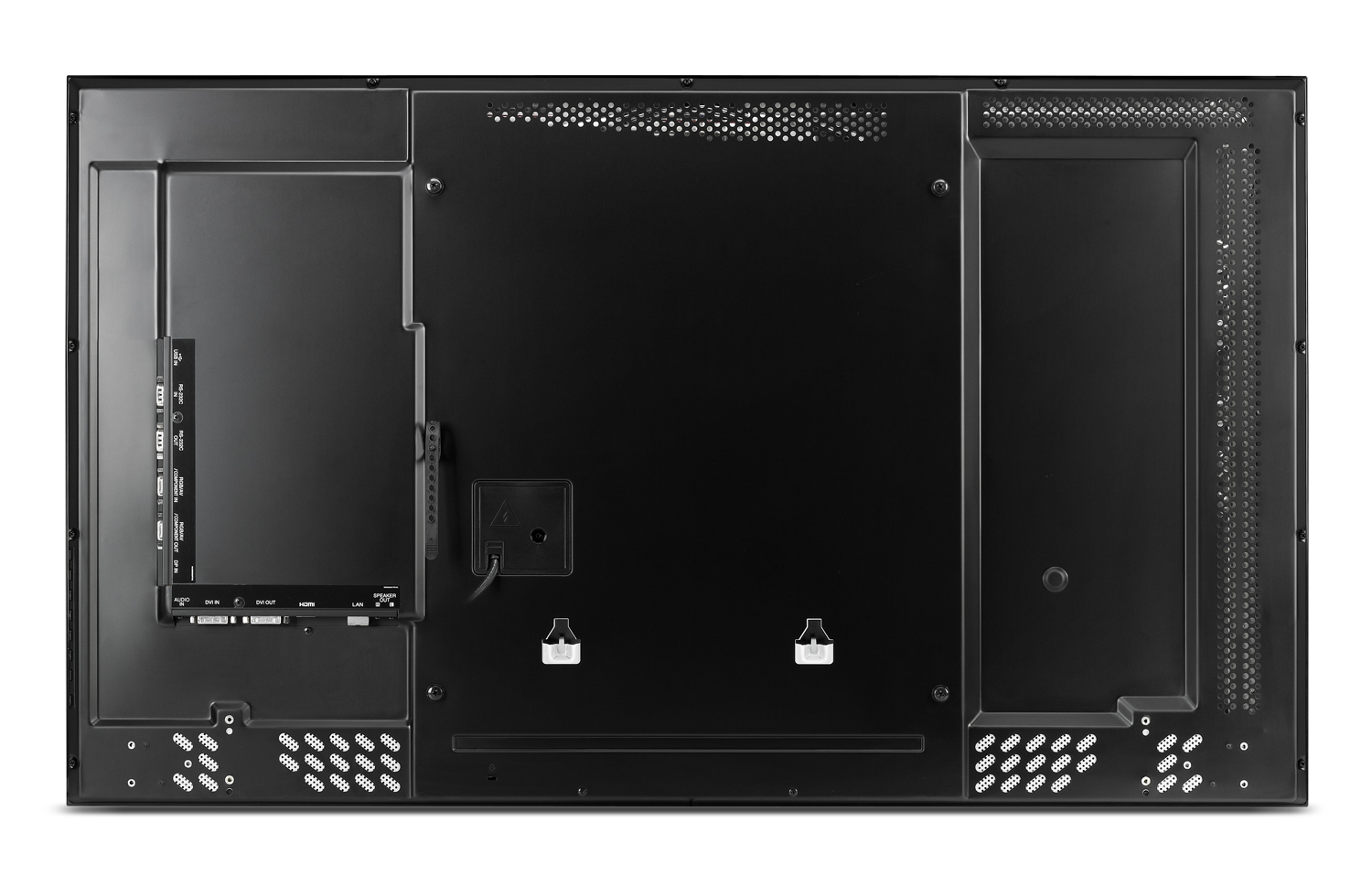

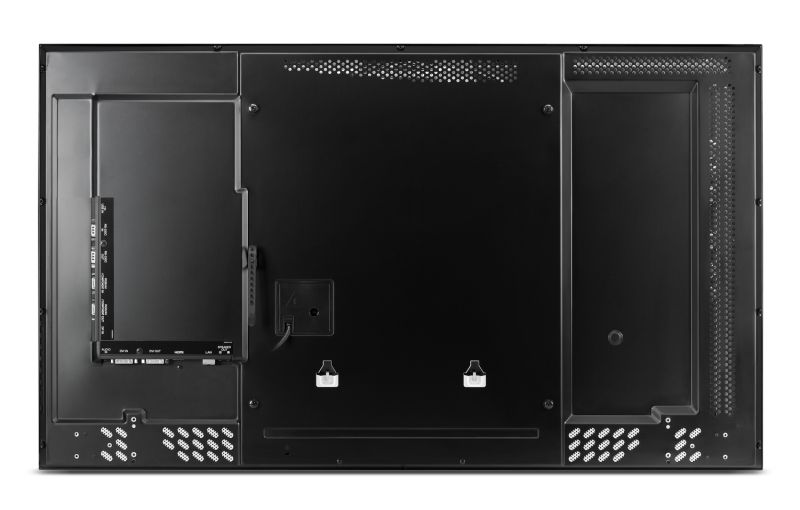

- Wall MountVESA 400mm x 400mm
- Recycle/DisposalPlease dispose of in accordance with local, state, or federal laws.

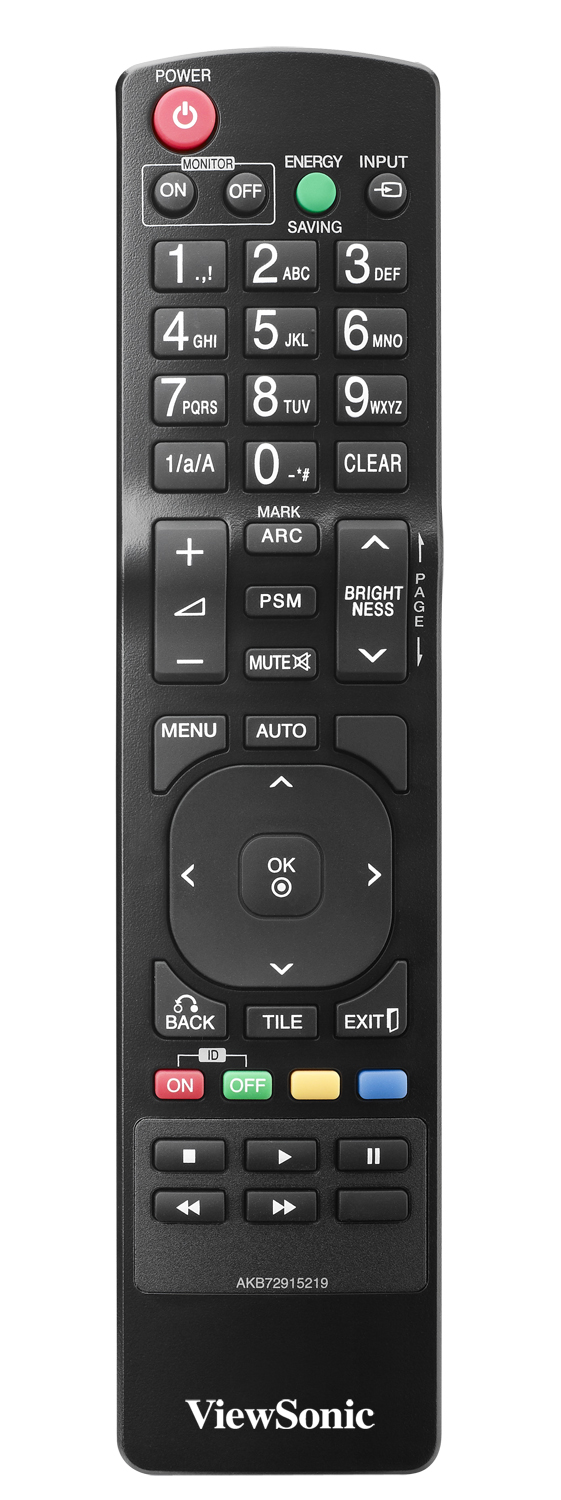

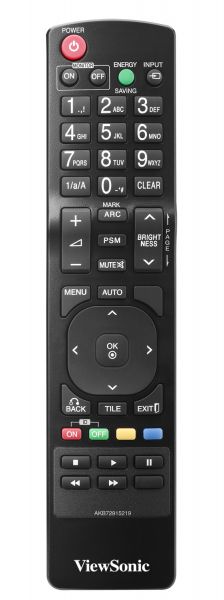

- PACKAGE CONTENTSCDP4237-L display, power cable, remote control with batteries, User Guide CD
- OPTIONAL ACCESSORIES AVAILABLEStand (STND-019); Wall Mount (WMK-013); Speaker (SPK-012)
