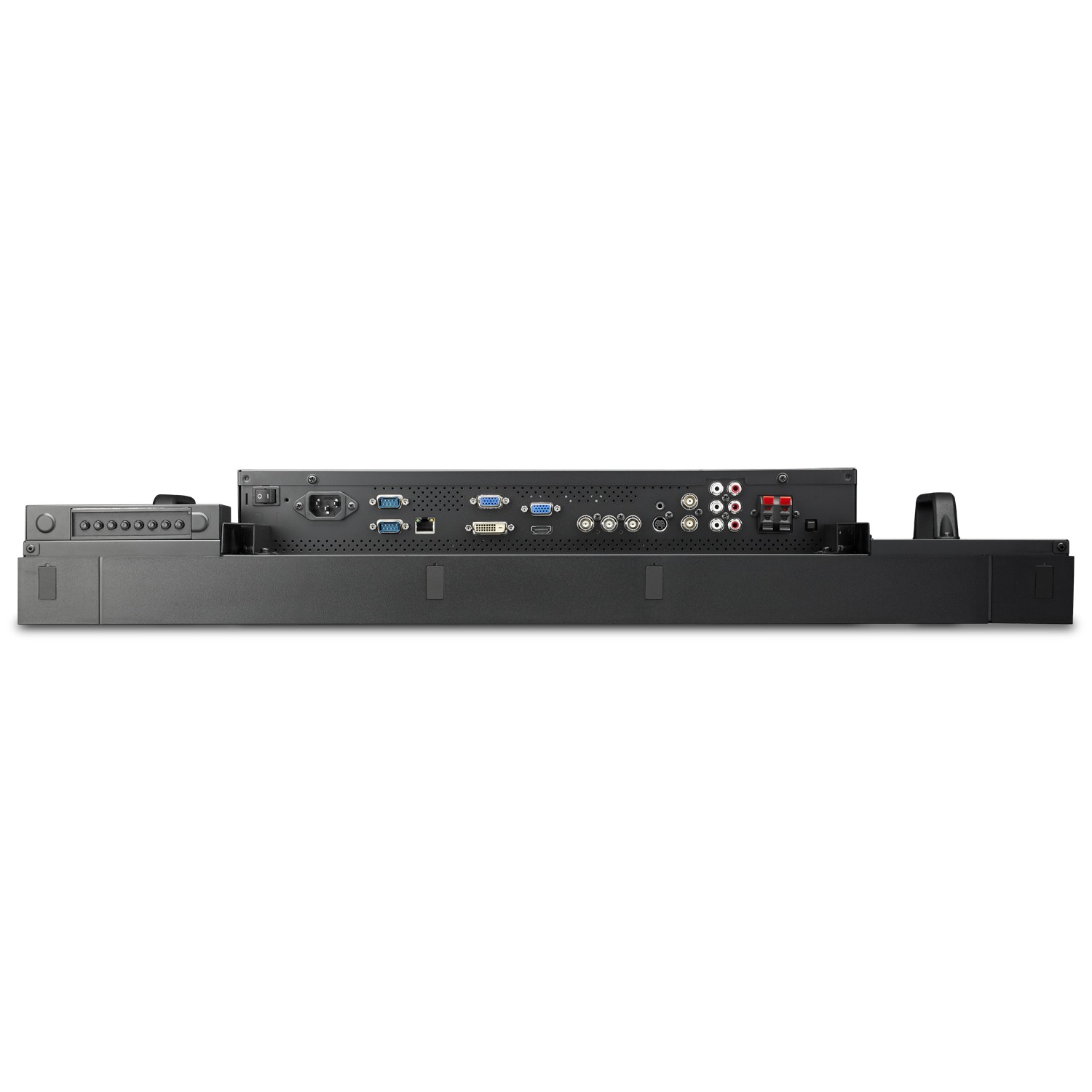

- CONNECTOR
Analog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI
Power: 3-pin plug
- POWER
Voltage: AC 100–240V (universal), 50–60Hz
Consumption: 140W (typ)
- CONTROLS
Input: VGA, DVI, HDMI, YPbPr
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
- OPERATING CONDITIONS
Humidity: 10–80% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 32–95ºF (0–35ºC)
- DIMENSIONS (WxHxD)
Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
Physical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
- WEIGHT
Gross: 40.8 lb. / 18.5 kg
Net Without Stand: 32.2 lb. / 15 kg
Net With Stand: 33.1 lb. / 14.6 kg
- Regulations
FCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- Wall Mount
VESA® 400mm x 200mm, 200mm x 200mm
- Recycle/Disposal
The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
- PACKAGE CONTENTS
CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
